Specifications:
Model:
-

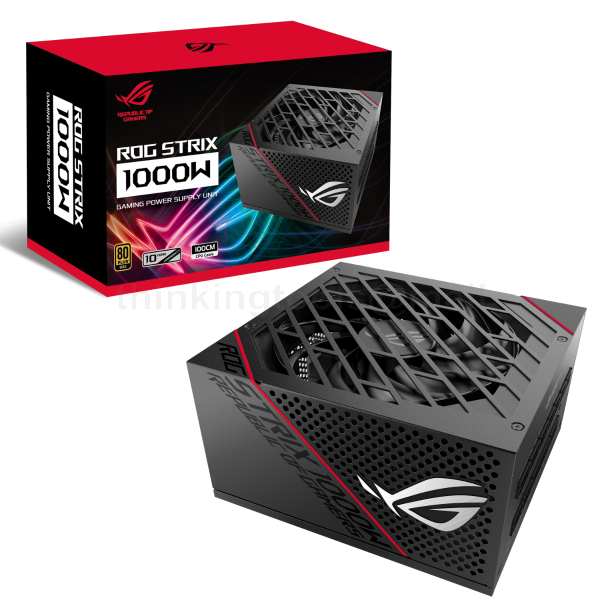

ROG STRIX 1000W Gold (16-pin cable)
Intel Specification:
-
ATX12V
Power Factor Correction (PFC):
-
Active PFC
Physical Dimensions:
-
Size: 16 x 15 x 8.6 cm
Efficiency:
-
Certification: 80Plus Gold
MTBF (Mean Time Between Failures):
-
>120,000 hours @ 25°C
Protection Features:
-
OPP (Over Power Protection)
-
OVP (Over Voltage Protection)
-
UVP (Under Voltage Protection)
-
SCP (Short Circuit Protection)
-
OCP (Over Current Protection)
-
OTP (Over Temperature Protection)
Hazardous Materials:
-
ROHS Compliant
AC Input Range:
-
100-240Vac
DC Output Voltage & Load:
-
+3.3V: 25A (125W)
-
+5V: 25A (125W)
-
+12V: 83A (996W)
-
-12V: 0.3A (3.6W)
-
+5Vsb: 3A (15W)
Total Output Power:
-
1000W
Cable Connectors:
-
Motherboard Power: 24/20-pin x1
-
CPU Power: 4+4-pin x2
-
PCI-E:
-
16-pin Cable x1 (component side)
-
6+2-pin Cables x3
-
-
SATA Power: x8
-
Peripheral Power: x4
Included Cables:
-
Power Cord: x1
-
Motherboard Power Cable: 1 x 610mm
-
CPU Cables: 2 x 1000mm
-
PCI-E Gen 5 Cable (8-pin-8-pin-to-16-pin): 1 x 675mm
-
PCI-E 1-to-1 Cable: 3 x 675mm
-
SATA 1-to-4 Cable: 2 x (450+120+120+120mm)
-
Peripheral 1-to-4 Cable: 1 x (450+120+120+120mm)
Additional Accessories:
-
ROG Badges: x2
-
ROG Logo Magnet: x1
-
ROG Labels: x3
-
Chassis Screws Package: x1
-
User Manual: x1
Weight:
-
1.88 kg (Single PSU)
Cybenetics Noise Level Certification:
-
N/A
0dB Fan Technology:
-
Supported: Fan shuts off completely when PSU is under certain load
