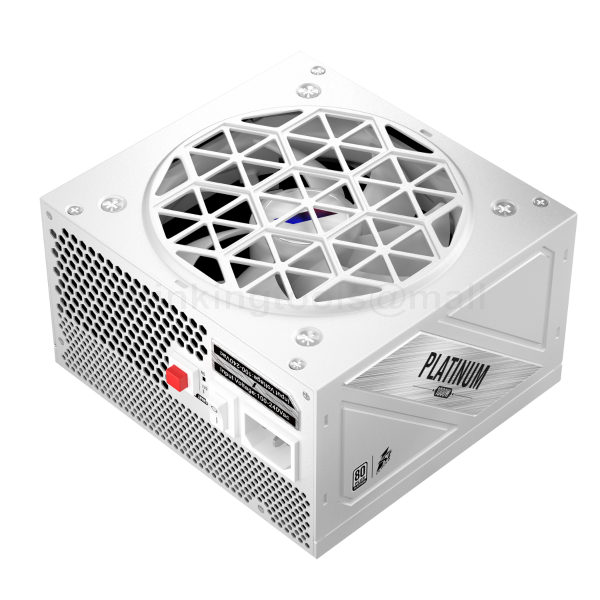

1STPLAYER NGDP 1000W 80PLUS PLATINUM MODULAR PSU (WHITE)

0 Review
₱8,800.00
Availability: Out of stock
SKU:
PSU-1ST-NGDP-1000W-W

The 120 mm FDB fan features a 0 RPM mode for silent operation, while the embossed cable design adds style and durability. This fully modular power supply allows for easy cable management and boasts an impressive 80 PLUS Platinum certification, achieving 90.62% efficiency at full load. Built with full Japanese electrolytic capacitors for reliability, it’s also ATX 3.1 and PCIe 5.1 ready, ensuring stable power delivery to high-performance graphics cards, with individual test reports accessible via MES ID.

Brands:

Specifications:



  • Model Specifications

    • Model: HA-1000BA3 / HA-1300BA3

    • Dimensions (L x W x H): 140 x 150 x 86 mm

  • Modular Design

    • Type: Full-Modular

  • Certifications

    • Certification: 80 PLUS Platinum

  • Input Specifications

    • Input Voltage: 100 - 240 Vac

    • Input Current: 15 - 7.5 A

    • Input Frequency: 50 - 60 Hz

  • Efficiency

    • Efficiency:

      • 91.01% at full load (1000W)

      • 90.62% at full load (1300W)

  • Output Capacity

    • Output Capacity: 1000 W / 1300 W

  • Power Factor Correction

    • PFC: Active PFC

  • Fan Specifications

    • Fan Size: 120 mm FDB

  • Protections

    • Protection Features:

      • UVP (Under Voltage Protection)

      • OVP (Over Voltage Protection)

      • OPP (Over Power Protection)

      • SCP (Short Circuit Protection)

      • OCP (Over Current Protection)

      • OTP (Over Temperature Protection)

  • Environmental Specifications

    • Protection Temperature: 0 - 40℃

    • MTBF (Mean Time Between Failures): 100,000 hours

  • Circuit Structure

    • Circuit Design: LLC + DC-DC

  • Regulatory Compliance

    • Regulatory Certifications: CE, FCC, C-Tik, ROHS, CCC, cTUVus, IEC, EAC
