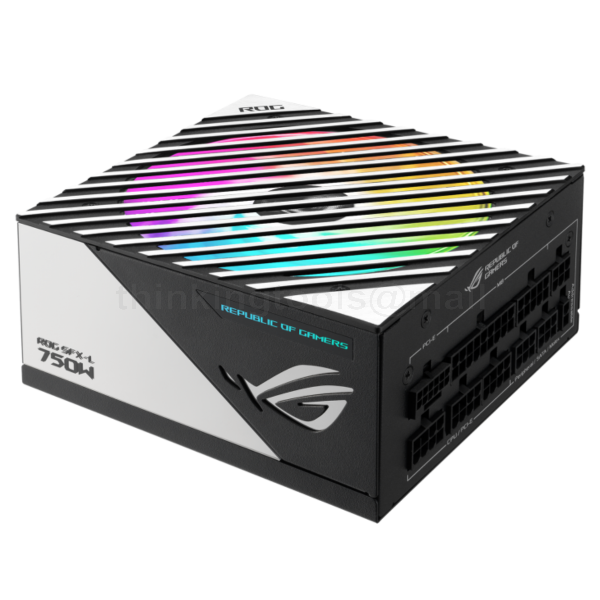

ASUS ROG LOKI SFX-L 750W 80PLUS-PLATINUM
The ROG Loki 750W Platinum is an SFX-L power supply designed for high-performance small form factor builds, featuring enthusiast-grade components for quiet operation. With a compact size of 125 x 125 x 63.5 mm, it includes a 120mm PWM-controlled fan for optimal thermals and low noise. Certified with 80 PLUS Platinum efficiency, it supports PCIe Gen 5.0 with a 16-pin cable for up to 600W power delivery, while its ARGB-illuminated fan allows for synchronized lighting effects across your gaming setup.
Specifications:
-
Form Factor: SFX-L
-
PFC Type: Active PFC
-
ATX Standard: ATX 3.0
-
Dimensions: 125 x 125 x 63.5 mm
-
Efficiency: 80Plus Platinum
-
MTBF: >120,000 hrs @ 25°C
-
Protection Features: OPP, OVP, UVP, SCP, OCP, OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240Vac
-
DC Output Voltage:
-
+3.3V: 20A (110W)
-
+5V: 20A (110W)
-
+12V: 62.5A (750W)
-
-12V: 0.8A (9.6W)
-
+5Vsb: 2.5A (12.5W)
-
-
Total Output: 750W
-
Cable Connectors
-
MB: 24/20-pin x 1
-
CPU: 4+4-pin x 2
-
PCI-E: 16-pin x 1 (both PSU & component side)
-
PCI-E 8-pin: x 3
-
SATA: x 6
-
Peripheral: x 4
-
-
Package Contents
-
Power Cord x 1
-
Motherboard Power Cable x 1 (450mm)
-
CPU Cable x 2 (550mm)
-
PCI-E Gen 5 16-pin Cable x 1 (450mm)
-
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
-
PCI-E 1-to-1 Cable x 1 (450mm)
-
SATA 1-to-3 Cable x 2 (300+200+100mm)
-
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
-
Addressable RGB Cable x 1 (800mm)
-
User Manual x 1
-
ATX to SFX adapter bracket x 1
-
-
Additional Features
-
Weight: 1.815 kg (single PSU)
-
AURA SYNC: ARGB
-
Cybenetics Noise Level Certification: A+
-
0dB Technology: Supported; fan shuts off at certain load
-
0dB Fan Button: No; operates in 0dB mode by default
-
