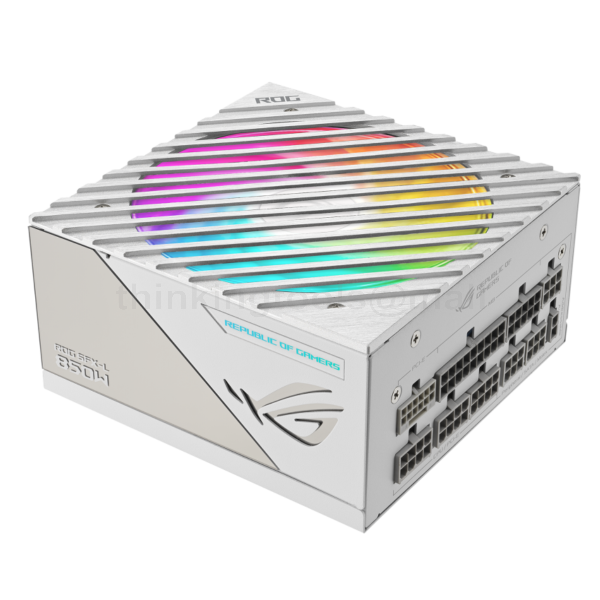

ASUS ROG LOKI SFX-L 850W 80PLUS-PLATINUM (WHITE)
The ROG Loki 850W Platinum White Edition is an SFX-L power supply designed for high performance and quiet operation, perfect for your next small form factor build. Featuring a 120mm Axial-Tech cooling fan with PWM control, it maintains low noise levels while efficiently delivering power. With 80 PLUS Platinum certification, it offers up to 92% efficiency and includes a PCIe Gen 5.0 ready 16-pin cable for next-gen graphics cards, all wrapped in a sleek, compact design with customizable ARGB lighting for a striking setup.
Specifications:
-
Form Factor: SFX-L
-
PFC Type: Active PFC
-
ATX Standard: ATX 3.0
-
Dimensions: 125 x 125 x 63.5 mm
-
Efficiency: 80 PLUS Platinum
-
MTBF: >120,000 hrs @ 25°C
-
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240 Vac
-
DC Output Voltage:
-
+3.3V: 20A
-
+5V: 20A
-
+12V: 70.8A
-
-12V: 0.8A
-
+5Vsb: 2.5A
-
-
Maximum Load:
-
Combined Load:
-
+3.3V: 110W
-
+5V: 110W
-
+12V: 850W
-
-12V: 9.6W
-
+5Vsb: 12.5W
-
-
-
Total Output: 850W
-
Cable Connectors:
-
MB 24/20-pin x 1
-
CPU 4+4-pin x 2
-
PCI-E 16-pin x 1 (both PSU & component side)
-
PCI-E 8-pin x 3
-
SATA x 6
-
Peripheral x 4
-
-
Package Contents:
-
Power Cord x 1
-
Motherboard Power Cable x 1 (450mm)
-
CPU Cable x 2 (550mm)
-
PCI-E Gen 5 16-pin Cable x 1 (450mm)
-
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
-
PCI-E 1-to-1 Cable x 1 (450mm)
-
SATA 1-to-3 Cable x 2 (300+200+100mm)
-
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
-
Addressable RGB Cable x 1 (800mm)
-
User Manual x 1
-
ATX to SFX adapter bracket x 1
-
-
Weight: 1.815 kg (single PSU)
-
AURA SYNC: ARGB
-
Cybenetics Noise Level Certification: A
-
0dB Technology: Supported; fan shuts off under certain load
-
0dB Fan Button: No (operates in 0dB mode by default)
