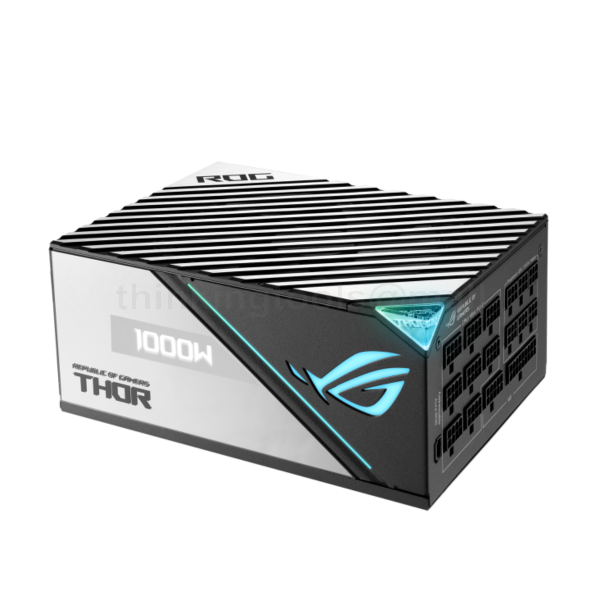

ASUS ROG THOR 1000P2 GAMING 1000W 80PLUS-PLATINUM
The ROG Thor 1000W Platinum II is the quietest power supply in its class, featuring Lambda A++ Certification for silent operation. Equipped with advanced ROG heatsinks and a 135mm Axial-tech fan, it effectively manages thermals while minimizing noise. With real-time power draw monitoring via an OLED display and Aura Sync compatibility, this PSU combines performance with customizable aesthetics for your gaming setup.
Specifications:
-
Form Factor: ATX12V
-
PFC Type: Active PFC
-
Dimensions: 190 x 150 x 86 mm
-
Efficiency: 80Plus Platinum
-
MTBF: >120,000 hrs @ 25°C
-
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240Vac
-
DC Output Voltage:
-
+3.3V: 25A
-
+5V: 25A
-
+12V: 83A
-
-12V: 0.3A
-
+5Vsb: 3A
-
-
Combined Load:
-
+3.3V: 125W
-
+5V: 125W
-
+12V: 996W
-
-12V: 3.6W
-
+5Vsb: 15W
-
-
Total Output: 1000W
-
Cable Connectors:
-
MB 24/20-pin: 1
-
CPU 4+4-pin: 2
-
PCI-E 16-pin: 1 (component side)
-
PCI-E 6+2-pin: 8
-
SATA: 12
-
Peripheral: 6
-
-
Package Contents:
-
Power Cord: 1
-
Motherboard Power Cable (610mm): 1
-
CPU Cables (650mm): 2
-
PCI-E 16-pin Cable (675mm): 1
-
PCI-E 1-to-1 Cables (675mm): 4
-
PCI-E 1-to-2 Cables (675+75mm): 2
-
SATA 1-to-4 Cables (400+120+120+120mm): 3
-
Peripheral 1-to-3 Cables (450+120+120mm): 2
-
Addressable RGB Cable (800mm): 1
-
ROG sticker: 1
-
ROG cable ties: 6
-
Sleeved Cable Combs (6-pin): 4
-
Sleeved Cable Combs (8-pin): 10
-
Sleeved Cable Combs (24-pin): 2
-
Chassis Screws Package: 1
-
Cable Ties: 12
-
User Manual: 1
-
-
Weight: 2.37 kg
-
AURA SYNC: ARGB
-
Cybenetics Noise Level Certification: A++
-
0dB Technology: Supported
-
0dB Fan Button: Yes (ON for load activation, OFF for continuous spin)
