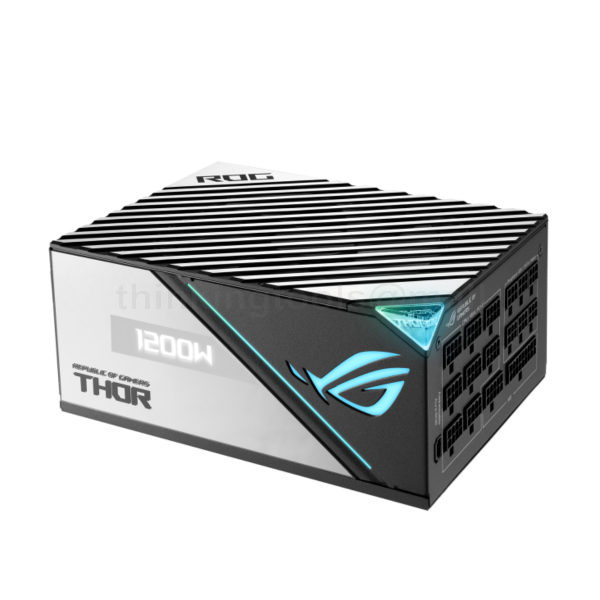

ASUS ROG THOR 1200P2 1200W 80PLUS-PLATINUM
The ROG Thor 1200W Platinum II is the ultimate silent powerhouse, certified with Lambda A++ for quiet performance. It features ROG heatsinks to maintain lower temperatures and noise levels, alongside a 135mm Axial-tech fan with PWM control for optimal cooling. With low-ESR capacitors, an OLED display for real-time power monitoring, and Aura Sync compatibility, this PSU combines premium performance with stunning aesthetics for any gaming rig.
Specifications:
-
Intel Form Factor: ATX12V
-
PFC Type: Active PFC
-
ATX Standard: ATX 3.0
-
Dimensions: 190 x 150 x 86 mm
-
Efficiency: 80 PLUS Platinum
-
MTBF: >120,000 hrs @ 25°C
-
Protection Features: OPP, OVP, UVP, SCP, OCP, OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240 Vac
-
DC Output Voltage: +3.3V, +5V, +12V, -12V, +5Vsb
-
Maximum Load:
-
+3.3V: 25A
-
+5V: 25A
-
+12V: 100A
-
-12V: 0.3A
-
+5Vsb: 3A
-
-
Combined Load:
-
+3.3V: 125W
-
+5V: 125W
-
+12V: 1200W
-
-12V: 3.6W
-
+5Vsb: 15W
-
-
Total Output: 1200W
-
Cable Connectors:
-
MB 24/20-pin x 1
-
CPU 4+4-pin x 2
-
PCI-E 16-pin x 1 (component side)
-
PCI-E 6+2-pin x 8
-
SATA x 12
-
Peripheral x 6
-
-
Package Contents:
-
Power Cord x 1
-
Motherboard Power Cable x 1 (610mm)
-
CPU Cable x 2 (650mm)
-
PCI-E 16-pin Cable x 1 (675mm)
-
PCI-E 1-to-1 Cable x 4 (675mm)
-
PCI-E 1-to-2 Cable x 2 (675+75mm)
-
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
-
Peripheral 1-to-3 Cable x 2 (450+120+120mm)
-
Addressable RGB Cable x 1 (800mm)
-
ROG sticker x 1
-
ROG cable ties x 6
-
Sleeved Cable Combs (6-pin) x 4
-
Sleeved Cable Combs (8-pin) x 10
-
Sleeved Cable Combs (24-pin) x 2
-
Chassis Screws Package x 1
-
Cable Tie x 12
-
User Manual x 1
-
-
Weight: 2.37 kg
-
AURA SYNC: Yes (ARGB)
-
Cybenetics Noise Level Certification: A++
-
0dB Technology: Supported
-
0dB Fan Button: Yes (ON: fan only spins at certain load, OFF: fan continuously spins)
