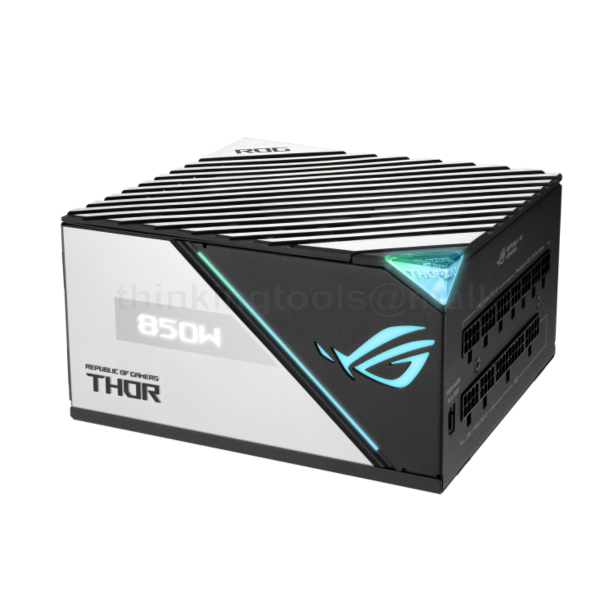

ASUS ROG THOR 850P2 GAMING 850W 80PLUS-PLATINUM
The ROG Thor 850W Platinum II is a high-performance power supply designed for quiet operation and efficiency, featuring Lambda A++ certification for minimal noise. It utilizes ROG heatsinks to maintain low temperatures and incorporates a 135mm wing-blade fan with PWM control for optimal cooling. With an OLED display for real-time power monitoring and Aura Sync compatibility for customizable lighting effects, it’s perfect for any premium gaming rig.
Specifications:
-
Intel Form Factor: ATX12V
-
PFC Type: Active PFC
-
Dimensions: 160 x 150 x 86 mm
-
Efficiency: 80 PLUS Platinum
-
MTBF: >120,000 hrs @ 25°C
-
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240Vac
-
DC Output Voltage:
-
+3.3V: 20A
-
+5V: 20A
-
+12V: 71A
-
-12V: 0.3A
-
+5Vsb: 3A
-
-
Combined Load:
-
+3.3V: 100W
-
+5V: 100W
-
+12V: 852W
-
-12V: 3.6W
-
+5Vsb: 15W
-
-
Total Output: 850W
-
Cable Connectors:
-
Motherboard: 24/20-pin x 1
-
CPU: 4+4-pin x 2
-
PCI-E: 16-pin x 1 (component side), 6+2-pin x 3
-
SATA: x 10
-
Peripheral: x 6
-
-
Package Contents:
-
Power Cord x 1
-
-
Motherboard Power Cable x 1 (610mm)
-
CPU Cable x 2 (650mm)
-
PCI-E Cable 16-pin x 1 (675mm)
-
PCI-E 1-to-1 Cable x 3 (675mm)
-
PCI-E 1-to-2 Cable x 2 (675+75mm)
-
SATA 1-to-2 Cable x 1 (400+120mm)
-
SATA 1-to-4 Cable x 2 (400+120+120+120mm)
-
Peripheral 1-to-3 Cable x 2 (450+120+120mm)
-
Addressable RGB Cable x 1 (800mm)
-
ROG Sticker x 1
-
ROG Cable Tie x 4
-
Sleeved Cable Combs (6-pin) x 2
-
Sleeved Cable Combs (8-pin) x 6
-
Sleeved Cable Combs (24-pin) x 2
-
Chassis Screws Package x 1
-
Cable Tie x 10
-
User Manual x 1
-
-
Additional Features:
-
Weight: 1.865 kg (single)
-
AURA SYNC: ARGB
-
Cybenetics Noise Level Certification: A++
-
0dB Technology: Supported
-
0dB Fan Button: Yes (Fan operates in 0dB mode by default, spins up only under certain load)
-
