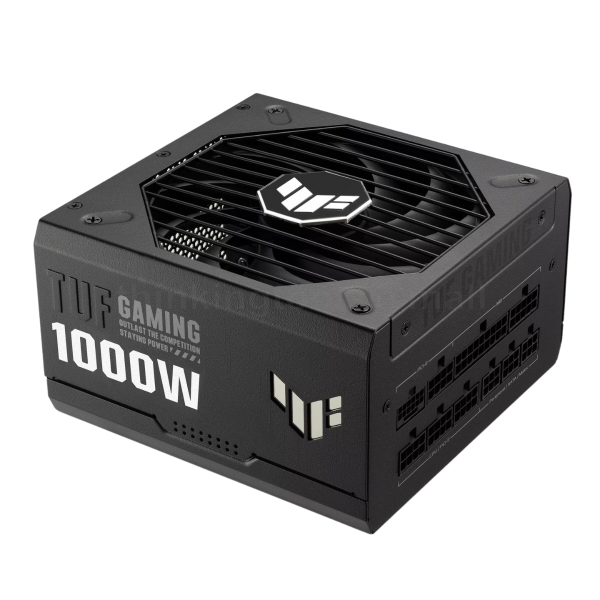

ASUS TUF GAMING 1000W 80PLUS GOLD (MODULAR CABLING)
The TUF Gaming 1000W Gold PSU delivers exceptional efficiency and durability with its Military-grade Certified components. It features a robust design, including dual ball fan bearings for extended lifespan and a protective PCB coating to withstand environmental challenges. With 80 Plus Gold Certification and fully modular cables, it ensures optimal performance while keeping your setup organized.
Specifications:
-
Form Factor: ATX12V
-
PFC Type: Active PFC
-
ATX Standard: ATX 3.0
-
Dimensions: 150 x 150 x 86 mm
-
Efficiency: 80 Plus Gold
-
MTBF: >120,000 hrs @ 40°C
-
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
-
Hazardous Materials: ROHS
-
AC Input Range: 100-240Vac
-
DC Output Voltage: +3.3V, +5V, +12V, -12V, +5Vsb
-
Maximum Load:
-
+3.3V: 25A
-
+5V: 25A
-
+12V: 83.3A
-
-12V: 0.8A
-
+5Vsb: 3A
-
-
Combined Load:
-
+3.3V: 130W
-
+5V: 130W
-
+12V: 1000W
-
-12V: 9.6W
-
+5Vsb: 15W
-
-
Total Output: 1000W
-
Cable Connectors:
-
MB 24/20-pin x 1
-
CPU 4+4-pin x 2
-
PCI-E 16-pin x 1
-
PCI-E 8-pin x 4
-
SATA x 5
-
Peripheral x 4
-
-
Package Contents:
-
Power Cord x 1
-
Motherboard Power Cable x 1 (610mm)
-
CPU Cables x 2 (650mm)
-
PCI-E Gen 5 16-pin Cable x 1 (675mm)
-
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
-
PCI-E 1-to-1 Cables x 2 (675mm)
-
SATA 1-to-2 Cable x 1 (400+120mm)
-
SATA 1-to-3 Cable x 1 (400+120+120mm)
-
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
-
TUF Gaming Cable Ties x 3
-
User Manual x 1
-
-
Weight: 2.48kg (single PSU)
-
0dB Technology: Supported (fan shuts off under low load)
-
0dB Fan Button: No (operates in 0dB mode by default)
