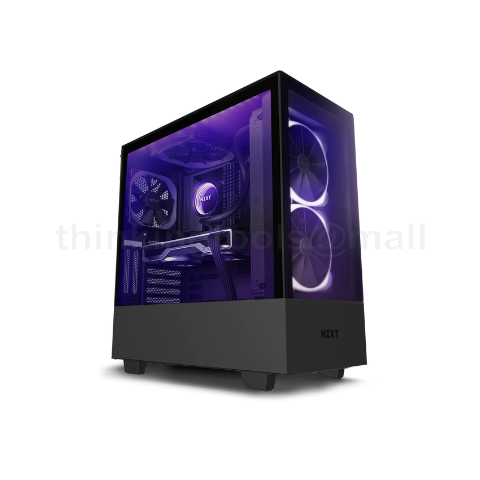

NZXT H510 ELITE MID TOWER CASE W/ RGB LED STRIP (2X140MM RGB FANS) (BLACK)

0 Review
₱8,500.00
Availability: Out of stock
SKU:
CAS-NZX-H510E-B

This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.

  • Two tempered glass panels for showcasing stunning RGB builds.
  • Two Aer RGB 2 fans and one RGB LED are included
  • Removable radiator mounting bracket and simple-to-use SSD trays
  • Patented cable management system
  • Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
  • USB 3.1 Gen 2-compatible USB-C connector
  • Iconic cable management bar
Brands:

SPECIFICATIONS

KEY SPECS
Motherboard Support Mini-ITX, MicroATX, ATX
Enclosure Type Compact Mid-Tower
Case Material SGCC Steel, Tempered Glass

FAN SUPPORT
Front 2 x 120mm / 2 x 140mm
Top 1 x 120mm / 1 x 140mm
Rear 1 x 120mm
Filters All air intakes

DIMENSIONS
Height 460mm / 18.11 inches
Width 210mm / 8.27 inches
Depth 428mm / 16.85 inches
Weight 7.5 kg / 16.53 lb

RADIATOR SUPPORT
Front 280mm
Top -
Rear 120mm

COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance 165mm
Max GPU Clearance 338 - 368mm
Front Fan & Radiator Clearance 60mm
Vertical GPU Clearance 50.8mm
Cable Management 19 - 23mm

FAN SPECS
Model Aer RGB 2 140mm
Speed 500 - 1,500 ± 300RPM
Airflow 30.39 - 91.19 CFM
Static Pressure 0.17 - 1.52 mm-H₂O
Noise 22 - 33 dBA
Fan Connector 4-pin PWM

FRONT I/O PORTS
USB 3.2 Gen 2 Type-A 1
USB 3.2 Gen 1 Type-C 1
Headset Audio Jack 1

FAN SPECS
Model Aer P 140mm (Case Version)
Speed 1,000 ± 200RPM
Airflow 68.95 CFM
Noise 28 dBA
Fan Connector 3-pin

EXPANSION SLOTS
Standard 7
Vertical 2

DRIVE BAYS
2.5" 2 + 1
3.5" 2 + 1

GENERAL
Warranty 2 Years
Model Number CA-H510E-W1
UPC 815671015112
EAN 5060301695294
More Information
Color Black
