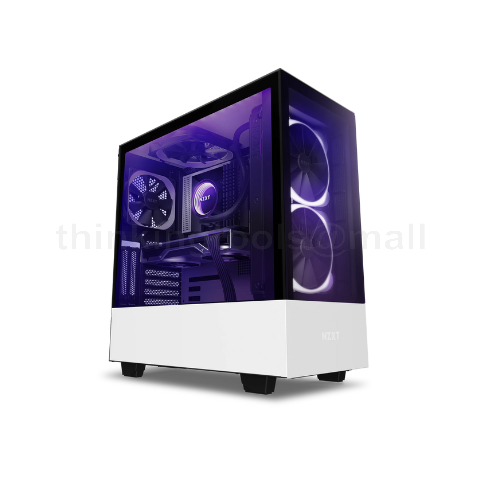

NZXT H510 ELITE MID TOWER CASE W/ RGB LED STRIP (2X140MM RGB FANS) (WHITE)
This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.
- Two tempered glass panels for showcasing stunning RGB builds.
- Two Aer RGB 2 fans and one RGB LED are included
- Removable radiator mounting bracket and simple-to-use SSD trays
- Patented cable management system
- Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
- USB 3.1 Gen 2-compatible USB-C connector
- Iconic cable management bar
Brands:
SPECIFICATIONS
KEY SPECS |
|
Motherboard Support | Mini-ITX, MicroATX, ATX |
Enclosure Type | Compact Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
FAN SUPPORT |
|
Front | 2 x 120mm / 2 x 140mm |
Top | 1 x 120mm / 1 x 140mm |
Rear | 1 x 120mm |
Filters | All air intakes |
DIMENSIONS |
|
Height | 460mm / 18.11 inches |
Width | 210mm / 8.27 inches |
Depth | 428mm / 16.85 inches |
Weight | 7.5 kg / 16.53 lb |
RADIATOR SUPPORT |
|
Front | 280mm |
Top | - |
Rear | 120mm |
COMPATIBILITY & CLEARANCE |
|
Max CPU Cooler Clearance | 165mm |
Max GPU Clearance | 338 - 368mm |
Front Fan & Radiator Clearance | 60mm |
Vertical GPU Clearance | 50.8mm |
Cable Management | 19 - 23mm |
FAN SPECS |
|
Model | Aer RGB 2 140mm |
Speed | 500 - 1,500 ± 300RPM |
Airflow | 30.39 - 91.19 CFM |
Static Pressure | 0.17 - 1.52 mm-H₂O |
Noise | 22 - 33 dBA |
Fan Connector | 4-pin PWM |
FRONT I/O PORTS |
|
USB 3.2 Gen 2 Type-A | 1 |
USB 3.2 Gen 1 Type-C | 1 |
Headset Audio Jack | 1 |
FAN SPECS |
|
Model | Aer P 140mm (Case Version) |
Speed | 1,000 ± 200RPM |
Airflow | 68.95 CFM |
Noise | 28 dBA |
Fan Connector | 3-pin |
EXPANSION SLOTS |
|
Standard | 7 |
Vertical | 2 |
DRIVE BAYS |
|
2.5" | 2 + 1 |
3.5" | 2 + 1 |
GENERAL |
|
Warranty | 2 Years |
Model Number | CA-H510E-W1 |
UPC | 815671015112 |
EAN | 5060301695294 |
Color | White |
---|
