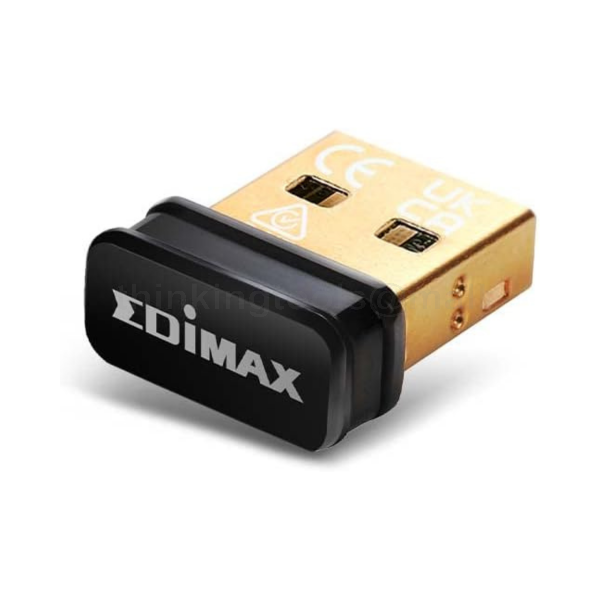

EDIMAX EW7811UN WIFI N-LITE USB ADAPTER
The EW-7811Un is a compact nano USB wireless adapter that delivers impressive speeds of up to 150 Mbps, making it three times faster than standard 802.11g connections. Designed to enhance wireless coverage and reduce dead spots, it complies with IEEE 802.11b/g/n standards and incorporates Green WLAN technology to lower power consumption by up to 50%. With easy WPS support for secure network setup and a user-friendly EZmax setup wizard, this adapter is an ideal upgrade for mobile users seeking reliable connectivity.
Specifications:
-
Hardware:
-
Interface: 1 x USB 1.0/2.0 Type A
-
LED Indicator: 1 x Link/Activity LED
-
Antenna: 1 x Internal Antenna (1T1R)
-
Dimensions: 7.1 mm (H) x 14.9 mm (W) x 17.5 mm (D)
-
Weight: 2 g
-
-
Wireless:
-
Standards: 2.4GHz - IEEE 802.11b, 802.11g, 802.11n
-
Frequency Band: 2.4000 - 2.4835 GHz (subject to local regulations)
-
Operating Channel:
-
FCC: Channel 1-11
-
CE: Channel 1-13
-
-
Max. Data Rate/Speed:
-
11b: 1/2/5.5/11 Mbps
-
11g: 6/9/12/24/36/48/54 Mbps
-
11n (20MHz): MCS0-07, up to 72 Mbps
-
11n (40MHz): MCS0-07, up to 150 Mbps
-
-
Output Power:
-
11b: 17±1.5 dBm
-
11g: 15±1.5 dBm
-
11n: 14±1.5 dBm
-
-
Receive Sensitivity:
-
11n (20MHz) @ MCS7: -68 dBm±2 dBm
-
11n (40MHz) @ MCS7: -64 dBm±2 dBm
-
11g @ 54 Mbps: -71 dBm±2 dBm
-
11b @ 11 Mbps: -81 dBm±2 dBm
-
-
Security:
-
WEP 64/128-bit
-
WPA
-
WPA2
-
IEEE 802.1x
-
Software WPS Configuration
-
-
-
Others:
-
Installation: Multi-language EZmax Setup Wizard
-
System Requirements:
-
Windows XP/Vista/7/8/8.1/10 or above
-
Mac OS 10.4 or above
-
Linux OS
-
-
Environment:
-
Temperature:
-
Operating: 32 - 104°F (0 - 40°C)
-
Storage: -4 - 140°F (-20 - 60°C)
-
-
Humidity:
-
Operating: 10 - 90% (non-condensing)
-
Storage: max. 95% (non-condensing)
-
-
-
Certification:
-
CE / RED (Europe)
-
FCC (U.S)
-
IC (Canada)
-
NCC (TW)
-
MIC & VCCI (Japan)
-
-
