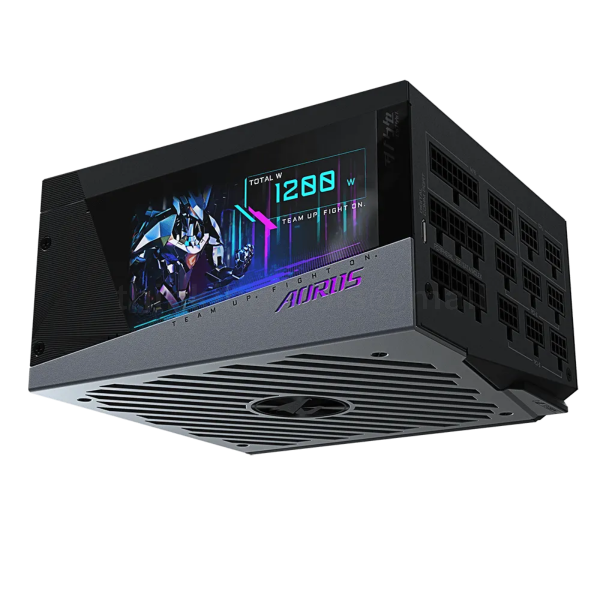

GIGABYTE AORUS P1200W 1X140MM FAN, 16SATA, 10PCIE, ACTIVE PFC, MODULAR, 80PLUS-PLATINUM
The Digital LCD monitor power supply is 80 PLUS Platinum certified, ensuring top-tier efficiency and reliability. Its fully modular design, combined with 100% Japanese capacitors, allows for easy cable management and enhanced performance. Featuring a compact size, a 140mm smart double ball bearing fan with a dust removal function, and comprehensive protections (OVP, OPP, SCP, UVP, OCP, OTP), this PSU delivers stable power for demanding systems.
Specifications:
-
Type: Intel Form Factor ATX 12V v2.31
-
PFC: Active PFC (>0.9 typical)
-
Input Voltage: 100-240 Vac (full range)
-
Input Current: 15-7.5A
-
Input Frequency: 60-50 Hz
-
Output Capacity: 1200W
-
Dimensions: 150 x 160 x 86 mm
-
Fan Type: 140mm Double ball bearing Fan
-
80 PLUS Certification: Platinum
-
Efficiency: 92% at typical load
-
MTBF: >100,000 hours
-
Protection Features: OVP, OPP, SCP, UVP, OCP, OTP
-
Power Good Signal: 100-150 ms
-
Hold Up Time: >16 ms
-
Cable Type: Flat, All black
-
Connectors:
-
ATX/MB 20+4 Pin x 1: 610mm
-
CPU/EPS 4+4 Pin x 2: 650mm
-
PCI-e 6+2 Pin x 10: 650mm+150mm (4) / 650mm (2)
-
SATA x 16: 650mm+150mm+150mm+150mm (4)
-
4 Pin Peripheral x 6 + 4-Pin Floppy x 2: 600mm+120mm+120mm+150mm (2)
-
