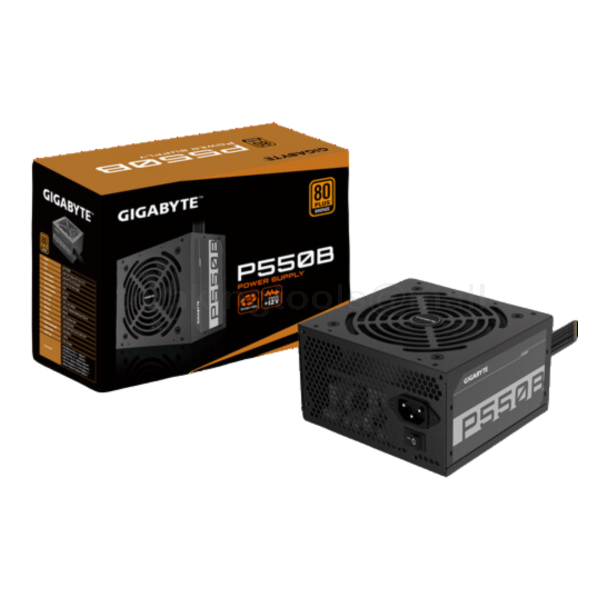

GIGABYTE P550B 550W 1X120MM FAN, 6SATA, 2PCIE, ACTIVE PFC, 80PLUS-BRONZE

Specifications:

• Type: Intel Form Factor ATX 12V v2.31

• PFC: Active PFC (>0.9 typical)

• Input Voltage: 100-240 Vac (full range)

• Input Current: 8-4 A

• Input Frequency: 60-50 Hz

• Output Capacity: 550W

• Dimension: 150 x 140 x 86 mm

• Fan Type: 120mm Hydraulic Bearing (HYB) Fan

• 80 PLUS: Bronze

• Efficiency: 85% at typical load

• MTBF: >100,000 hours

• Protection: OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal: 100-500ms

• Hold Up Time: >16ms

• Cable Type: Flat, All black

• Connectors:

  • ATX/MB 20+4 Pin x 1: 550mm*1

  • CPU/EPS 4+4 Pin x 1: 600mm*1

  • PCI-e 6+2 Pin x 2: 550mm+150mm*1

  • SATA x 6: 500mm+120mm+120mm*2

  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1
