  • HIKVISION COLORVU DS-2CE70DF3T-PFS(3.6) 2MP 20M-IR 3D DNR TRUE WDR 4IN1 INDOOR TURRET CAM
main product photo

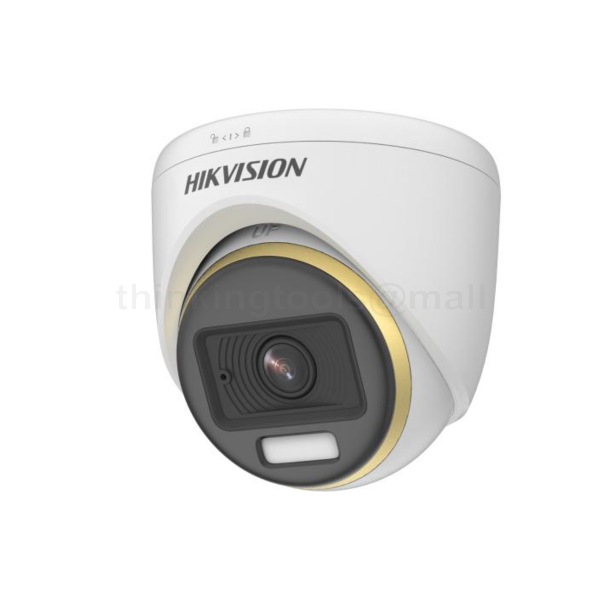

HIKVISION COLORVU DS-2CE70DF3T-PFS(3.6) 2MP 20M-IR 3D DNR TRUE WDR 4IN1 INDOOR TURRET CAM

0 Review
₱1,400.00
Availability: Out of stock
SKU:
SUR-HIK-CAM-DS2CE70DF3TPFS-3.6

The HIKVISION DS-2CE70DF3T-PFS(3.6) camera offers exceptional 2 MP, 1920 × 1080 resolution for high-quality imaging, enhanced by a 24/7 color imaging capability with an F1.0 aperture and 130 dB true WDR technology for clear visuals even in challenging lighting conditions. It features versatile 2.8 mm and 3.6 mm fixed focal lenses. It delivers up to 20 meters of bright night-time illumination with white light, while its built-in microphone and audio over coaxial cable ensure high-quality audio capture. Additionally, the camera supports a single port for four switchable signals (TVI/AHD/CVI/CVBS), making it a flexible and comprehensive solution for various surveillance needs.

Brands:

Specifications:

  • Image Sensor:

    • Type: 2 MP CMOS

  • Max. Resolution:

    • 1920 (H) × 1080 (V)

  • Min. Illumination:

    • 0.0005 Lux @ (F1.0, AGC ON)
    • 0 Lux with white light

  • Shutter Time:

    • PAL: 1/25 s to 1/50,000 s
    • NTSC: 1/30 s to 1/50,000 s

  • Day & Night:

    • 24/7 Color Imaging

  • Angle Adjustment:

    • Pan: 0° to 360°
    • Tilt: 0° to 75°
    • Rotation: 0° to 360°

  • Signal System:

    • PAL/NTSC

  • Slow Shutter:

    • Max. 16 times

  • Light Alarm:

    • Solid Light Alarm (White Light)

Lens

  • Lens Type:

    • 2.8 mm, 3.6 mm fixed focal lens

  • Focal Length & FOV:

    • 2.8 mm:
      • Horizontal FOV: 98°
      • Vertical FOV: 52°
      • Diagonal FOV: 116°
    • 3.6 mm:
      • Horizontal FOV: 77°
      • Vertical FOV: 42°
      • Diagonal FOV: 91°

  • Lens Mount:

    • M12

Illuminator

  • Supplement Light Type:

    • White Light

  • Supplement Light Range:

    • Up to 20 m

  • Smart Supplement Light:

    • Yes


  • Image Parameters Switch:

    • STD/HIGH-SAT/HIGHLIGHT

  • Image Settings:

    • Brightness
    • Contrast
    • Mirror
    • Sharpness
    • Anti-Banding
    • AGC

  • Frame Rate:

    • TVI: 1080P@25 fps/30 fps
    • CVI: 1080P@25 fps/30 fps
    • AHD: 1080P@25 fps/30 fps
    • CVBS: PAL/NTSC

  • Day/Night Mode:

    • Color

  • Wide Dynamic Range (WDR):

    • ≥130 dB

  • Image Enhancement:

    • BLC (Backlight Compensation)
    • HLC (Highlight Compensation)
    • Global
    • HLS (Highlight Suppression)

  • Privacy Mask:

    • 4 programmable privacy masks

  • Noise Reduction:

    • 3D DNR (Digital Noise Reduction)
    • 2D DNR (Digital Noise Reduction)

  • White Balance:

    • Auto/Manual

Interface

  • Video Output:

    • Switchable TVI/AHD/CVI/CVBS

  • Built-in Microphone:

    • Yes

Event

  • Motion Detection:
    • 4 programmable motion areas

General

  • Power:

    • 12 VDC ± 25%
    • Max. 4.2 W

  • Power Supply Recommendation:

    • Use one power adapter to supply power for one camera

  • Material:

    • Plastic

  • Dimension:

    • 85.02 mm × 81.25 mm (3.35" × 3.2")

  • Weight:

    • Approx. 163 g (0.36 lb.)

  • Operating Condition:

    • Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 90% or less (non-condensing)

  • Communication:

    • HIKVISION-C

  • Language:

    • English
More Information
Color White
