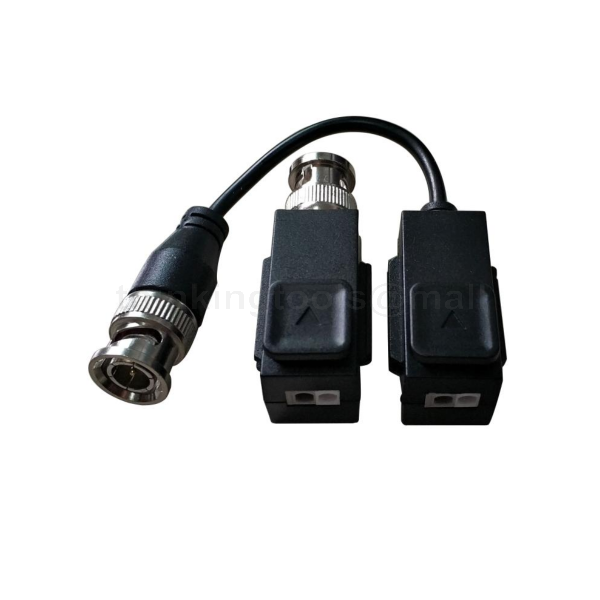

main product photo

HIKVISION DS-1H18S/E(C) TVI CONVERT TO UTP TRANSMISSION WITH EXTEND CABLE PRESS TYPE PLUG

0 Review
₱150.00
Availability: Out of stock
SKU:
ACC-HIK-DS1H18S/EC
This 1-channel passive video UTP balun features a patented press-type terminal on top and a clasp on the side for secure connections. It supports cameras and DVRs with Power Over Coax (POC), providing real-time transmission of high-quality and stable video signals. Compatible with HDCVI, TVI, AHD, and CVBS formats, it ensures superior anti-interference capabilities, enabling reliable video transmission up to 250m for non-POC cameras and up to 150m for POC-enabled cameras.
Brands:

Specifications:



Properties:

  • Transmission Signal: 1 channel
  • Transmission Distance:
    • Non-POC Camera: Max 250m
    • POC Camera: Max 150m
  • Category Type: UTP CAT 5E/6 (R < 10Ω/100M)
  • Video Transmission Properties And Port:
    • Coaxial Video Connector: BNC-M
    • Twisted-Pair Video Connector: Pat Push Interface
  • Compatible Format: HDCVI/TVI/AHD/CVBS
  • Resolution: 720P/1080P/4MP/5MP/8MP
  • Ant-Interference: >60db

Protection:

  • ESD:
    • Contact discharge electricity level 3
    • Air discharge electricity level 3
    • Per: IEC61000-4-2
  • Coaxial Cable Connector: 2KV (common-code) Per: IEC61000-4-5
  • UTP Cable Connector: 2KV (different-code), 2KV (common-code) Per: IEC61000-4-5

Impedance:

  • BNC Male: 75 ohms
  • UTP Cable: 100 ohms

Physical Properties:

  • Shell: ABS
  • Color: Black
  • Dimensions (L x W x H):
    • 150mm x 20mm x 22mm (balun with cable)
    • 50mm x 20mm x 22mm (balun without cable)
  • Weight: 32 g

Stability:

  • MTBF: >10000 h

Environmental:

  • Operating Temperature: -10-55ºC
  • Storage Temperature: -20-70ºC
  • Humidity: 0-95% (non-condensing)
