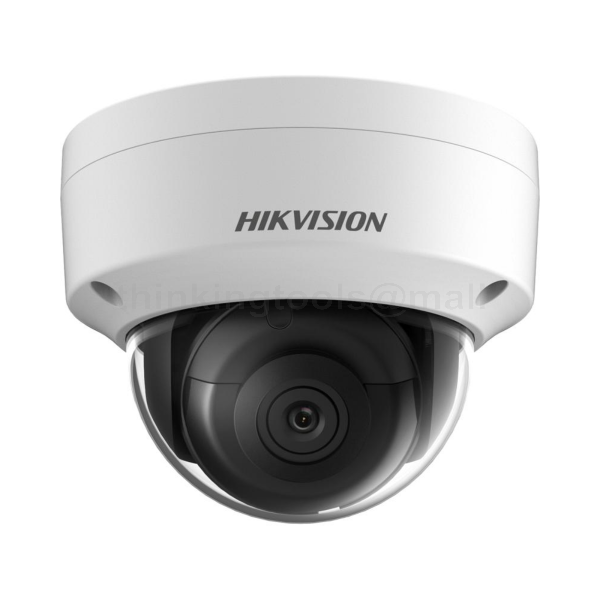

HIKVISION DS-2CD2121G0-IS 2MP WDR 30M-IR IP67 IK10 DOME NETWORK CAMERA

Specifications:

Image Sensor

• Type: 1/2.7" Progressive Scan CMOS

Resolution

• Maximum Resolution: 1920 × 1080 (Full HD)

Illumination

• Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)

  • B/W: 0 Lux with IR

Shutter Time

• Range: 1/3 s to 1/100,000 s

Day & Night

• Type: IR Cut Filter

Angle Adjustment

• Pan: 0° to 355°

• Tilt: 0° to 75°

• Rotate: 0° to 355°

Lens

• Focal Length & Field of View (FOV):

  • 2.8 mm: Horizontal FOV 111.6°, Vertical FOV 59.1°, Diagonal FOV 133.9°

  • 4 mm: Horizontal FOV 91.5°, Vertical FOV 46.1°, Diagonal FOV 109.8°

  • 6 mm: Horizontal FOV 56°, Vertical FOV 29.8°, Diagonal FOV 65.3°

• Lens Mount: M12

• Focus: Fixed

• Aperture: F1.6

Illuminator

• Supplement Light Range: Up to 30 m

• IR Wavelength: 850 nm

Video

• Main Stream Frame Rates:

  • 50 Hz: 25 fps at 1920 × 1080, 1280 × 720

  • 60 Hz: 30 fps at 1920 × 1080, 1280 × 720

• Sub-Stream Frame Rates:

  • 50 Hz: 25 fps at 640 × 480, 640 × 360

  • 60 Hz: 30 fps at 640 × 480, 640 × 360

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Region of Interest (ROI): Support 1 fixed region for mainstream

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

• Simultaneous Live View: Up to 6 channels

• API: Open Network Video Interface, ISAPI

• User/Host: Up to 32 users; 3 levels: administrator, operator, and user

• Network Storage:

  • Support: Micro SD/SDHC/SDXC card (up to 256 GB), local storage, NAS (NFS, SMB/CIFS), ANR

Client Software

• Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browser Compatibility

• Plug-in Required Live View: IE 10+

• Plug-in Free Live View: Chrome 57.0+, Firefox 52.0+

• Local Service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

• Day/Night Switch: Day, Night, Auto, Schedule

• Image Enhancement: BLC (Back Light Compensation), 3D DNR (Digital Noise Reduction)

• Wide Dynamic Range (WDR): 120 dB

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage: Built-in Micro SD slot, up to 256 GB

Audio

• Audio Input/Output (Model -S): 1 input (line in), 1 output (line out)

Alarm

• Alarm Input/Output (Model -S): 1 input, 1 output (max. 12 VDC, 30 mA)

• Reset Key: Yes

Event

• Basic Events: Motion detection, video tampering alarm

• Smart Events: Line crossing detection, intrusion detection

• Linkage Actions: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power:

  • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W

• Dimension: Ø110.8 mm × 84.7 mm (Ø 4.4" × 3.3")

• Package Dimension: 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")

• Weight:

  • Approx. 497 g (1.1 lb.)

  • With Package Weight: Approx. 597 g (1.3 lb.)

• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

• Language: 33 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Functions

• Features: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
