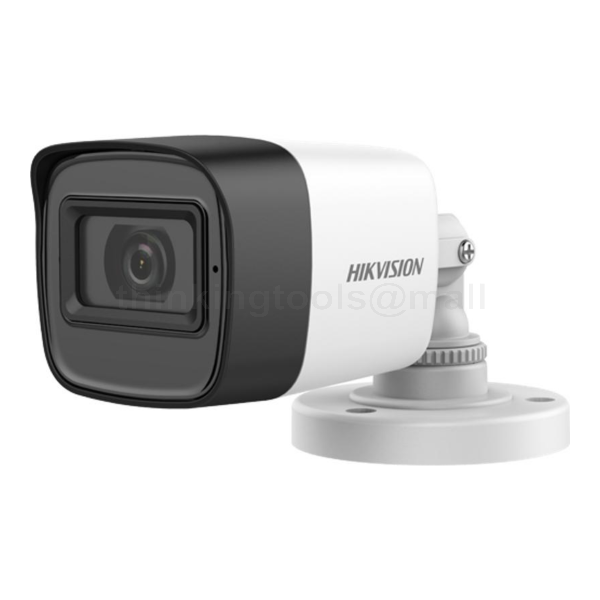

HIKVISION DS-2CE16H0T-ITPFS(2.8) 5MP 25M-IR IP67 FIXED MINI BULLET CAMERA

0 Review
₱1,400.00
Availability: In stock
SKU:
SUR-HIK-CAM-DS2CE16H0TITPFS-2.8

The HIKVISION DS-2CE16H0T-ITPFS(2.8) is a versatile 5 MP mini bullet camera offering stunning 2560 × 1944 resolution and digital WDR for clear imaging in challenging light conditions. It features a choice of 2.8 mm, 3.6 mm, or 6 mm fixed focal lenses, Smart IR with up to 25 meters of night vision, and built-in audio capabilities over coaxial cable. With a durable IP67 rating and switchable 4-in-1 video output (TVI/AHD/CVI/CVBS), this camera ensures reliable performance in various environments.

Brands:

Specifications:

  • Image Sensor:

    • Type: 5 MP CMOS

  • Max. Resolution:

    • 2560 (H) × 1944 (V)

  • Min. Illumination:

    • 0.01 Lux @(F2.0, AGC ON)
    • 0 Lux with IR

  • Shutter Time:

    • PAL: 1/25 s to 1/50,000 s
    • NTSC: 1/30 s to 1/50,000 s

  • Day & Night:

    • ICR (Infrared Cut Filter Removal)

  • Angle Adjustment:

    • Pan: 0° to 355°
    • Tilt: 0° to 75°
    • Rotation: 0° to 355°

  • Signal System:

    • PAL/NTSC

Lens

  • Lens Type:

    • 2.8 mm, 3.6 mm, 6 mm fixed lens

  • Focal Length & FOV:

    • 2.8 mm:
      • Horizontal FOV: 85.5°
      • Vertical FOV: 63.7°
      • Diagonal FOV: 110.7°
    • 3.6 mm:
      • Horizontal FOV: 80.1°
      • Vertical FOV: 63.7°
      • Diagonal FOV: 105.9°
    • 6 mm:
      • Horizontal FOV: 57.1°
      • Vertical FOV: 43.1°
      • Diagonal FOV: 72.5°

  • Lens Mount:

    • M12


  • Image Settings:

    • Brightness
    • Sharpness
    • Mirror
    • Smart IR

  • Frame Rate:

    • TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
    • CVI: 4MP@30fps, 4MP@25fps
    • AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
    • CVBS: PAL/NTSC

  • Day/Night Mode:

    • Auto/Color/BW (Black and White)

  • Image Enhancement:

    • BLC (Backlight Compensation)

  • Noise Reduction:

    • 2D DNR (Digital Noise Reduction)

  • White Balance:

    • ATW (Auto Tracking White Balance)
    • Manual

  • AGC (Automatic Gain Control):

    • Support

Interface

  • Video Output:
    • Switchable TVI/AHD/CVI/CVBS

General

  • Material:

    • Plastic

  • Dimension:

    • 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")

  • Weight:

    • Approx. 160 g (0.35 lb.)

  • Operating Condition:

    • Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 90% or less (non-condensing)

  • Communication:

    • HIKVISION-C

  • Language:

    • English

  • Power Supply:

    • 12 VDC ± 25%

  • Power Consumption:

    • Max. 3.7 W

  • IR Range:

    • Up to 25 m

  • Protection:

    • IP67

  • Power Supply Recommendation:

    • Use one power adapter to supply power for one camera
