  • HIKVISION DS-K1TA70MI-T FACE RECOGNITION W/ TEMPERATURE SCREENING ACCESS CONTROL TERMINAL
main product photo

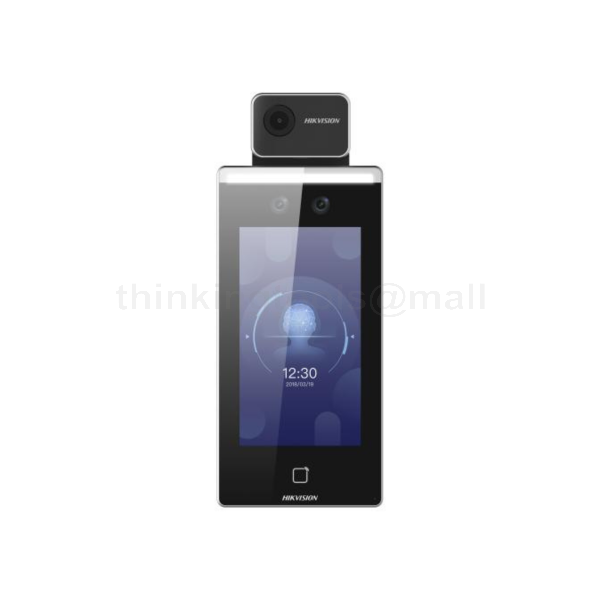

HIKVISION DS-K1TA70MI-T FACE RECOGNITION W/ TEMPERATURE SCREENING ACCESS CONTROL TERMINAL

0 Review
₱35,700.00
Availability: In stock
SKU:
BIO-HIK-DSK1TA70MIT

  • Accurate Temperature Measurement: 30 °C to 45 °C range with ±0.5 °C deviation and 0.1 °C accuracy

  • Fast & Accurate Face Recognition: < 0.2 seconds/user, ≥ 99% accuracy

  • Face Mask Detection: Supports identification even with masks

  • High Capacity: Stores up to 6,000 faces, 6,000 cards, and 100,000 events

  • Smart Display: 7-inch LCD touch screen with real-time temperature display

  • Camera & Card Reader: 2MP wide-angle camera and built-in Mifare card reader

  • Recognition Distance: Works effectively from 0.3 to 1.8 meters

Brands:

Specifications:



  • General Specifications

    • Power Supply: 12 VDC / 2 A

    • Working Temperature: 0 °C to 50 °C (32 °F to 122 °F)

    • Temperature Measurement Operating Range: 10 °C to 35 °C (50 °F to 95 °F)

    • Working Humidity: 10% to 90% (non-condensing)

    • Application Environment: Indoor, windless environment only

    • Gross Weight: 1.89 kg (4.17 lb)

    • Net Weight: 1.04 kg (2.29 lb)

  • Temperature Measurement

    • Measurement Range: 30 °C to 45 °C (86 °F to 113 °F)

    • Sensor Type: Vanadium Oxide uncooled sensor

    • Resolution: 120 × 160

    • Frame Rate: 25 fps

    • Accuracy: 0.1 °C

    • Deviation: ±0.5 °C

    • Measuring Distance: 0.3 to 1.8 m

  • Display

    • Screen Size: 7-inch

    • Type: Touch screen

  • Video

    • Field of View (FOV): HFOV = 46°, VFOV = 87°

    • Camera Resolution: 2 MP

    • Lens Type: Dual-lens

  • Network & Interfaces

    • Wired Network: Supported, 10/100/1000 Mbps self-adaptive

    • Interfaces:

      • Network Interface: 1

      • RS-485: 1

      • Wiegand: 1

      • Lock Output: 1

      • Exit Button: 1

      • Door Contact Input: 1

      • IO Input: 2

      • IO Output: 1

      • Tamper Switch: 1

  • Capacity

    • Face Capacity: 6,000

    • Card Capacity: 6,000

    • Event Capacity: 100,000

  • Authentication

    • Card Type: M1 card

    • Card Reading Distance: 0 to 5 cm

    • Card Reading Duration: < 1 second

    • Face Recognition Duration: < 0.2 seconds per person

    • Face Recognition Distance: 0.3 to 1.8 m

  • Functions

    • Face Mask Detection: Supported

    • Face Anti-Spoofing: Supported

    • Live View: Supported

    • Audio Prompt: Supported

    • Temperature Display: Shown on authentication page
