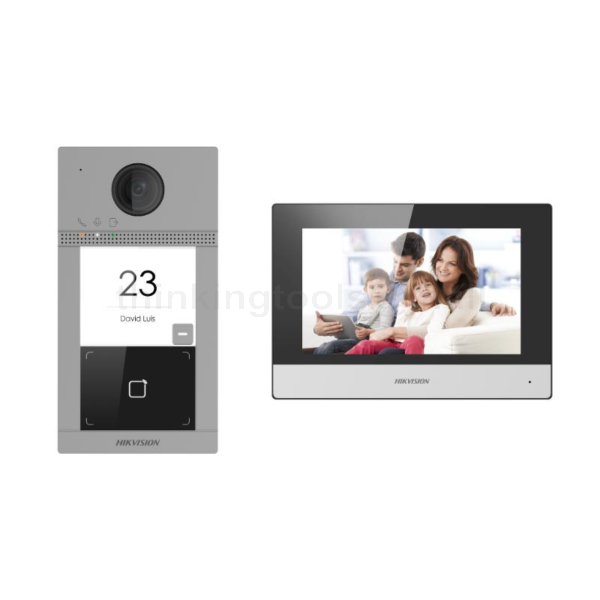

HIKVISION DS-KIS604-P(B) IP VIDEO INTERCOM KIT

Specifications:

Door Station/System Parameters:

• Operating System: Embedded Linux

• Operation Mode: Single-button

• Flash: 32 MB

• RAM: 256 MB

Door Station/Video Parameters:

• Camera: 2MP HD

• Night Vision: Low illumination IR supplement mode (up to 3 m)

• Backlight Compensation: Supported

• Digital Noise Reduction: Supported

• WDR (Wide Dynamic Range): True WDR

• Field of View:

  • Horizontal: 129°

  • Vertical: 75°

• Video Compression Standard: H.264

• Stream:

  • Main Stream: 1080p @ 30 fps, 720p @ 25 fps

  • Sub Stream: D1 @ 25 fps

• Motion Detection: Supported

• Flash-Avoid Frequency: 50 Hz, 60 Hz

Door Station/Audio Parameters:

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Audio Quality: Noise suppression and echo cancellation

• Audio Compression Standard: G.711 U

• Audio Compression Rate: 64 Kbps

• Audio Intercom: Two-way communication

Door Station/Network Parameters:

• Network Protocol: TCP/IP, RTSP

• Wired Network: 10/100 Mbps Ethernet

Door Station/Device Interfaces:

• RS-485 Port: 1

• Alarm Input: 4

• Debugging Port: 1

• Grounding: 1

• TAMPER Switch: 1

Door Station/General:

• Power Consumption: < 10 W

• Working Temperature: -40°C to 53°C (-40°F to 127.4°F)

• Working Humidity: 10% to 95%

• Dimensions: 174 mm × 91 mm × 29 mm

• Installation: Surface mounting/Flush mounting

• Protection Level: IP65, IK08

• Indicator: 3

• Power Supply: IEEE 802.3af, standard PoE; 12 VDC
