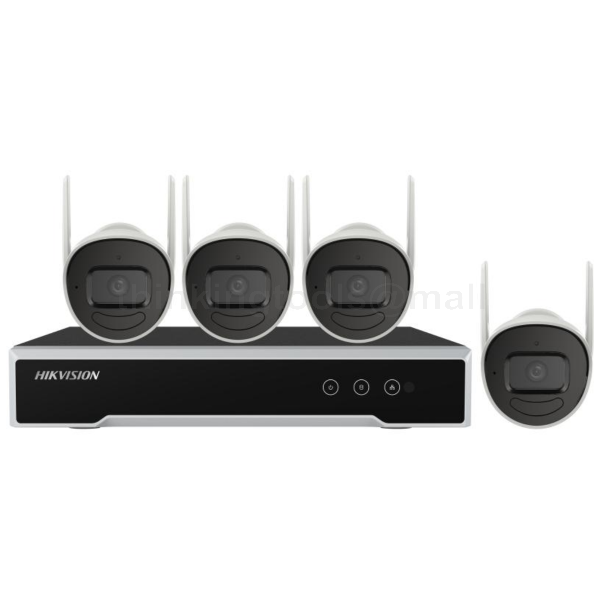

HIKVISION NK42W0-1T 4CH NVR W/ 1TB WDPURX, 4 X BULLET 2MP IP66 WIFI CAMERA

Specifications:

• Camera Case Type: Bullet

• Image Sensor: 1/2.8" Progressive Scan CMOS

• Min. Illumination: 0.028 Lux

• Shutter Speed: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• WDR: DWDR (Digital Wide Dynamic Range)

• Angle Adjustment:

  • Pan: 0° to 360°

  • Tilt: -90° to 90°

  • Rotate: 0° to 90°

• Protection Level: IP66

• Material:

  • Front Cover: Metal

  • Back Cover: Plastic

• Wi-Fi Support: Yes

Camera/Lens:

• Focal Length: 2.8 mm

• Aperture: F2.0

• Focus: Fixed

• Field of View (FOV):

  • Horizontal FOV: 114.5°

  • Vertical FOV: 62°

  • Diagonal FOV: 135.5°

• Lens Mount: M12

Camera/IR:

• IR Range: Up to 30 m

Camera/Compression Standard:

• Video Compression: H.264+, H.264, MJPEG

• H.264 Type: Baseline Profile/Main Profile

• H.264+: Supported

• H.265 Type: Not Supported

• H.265+: Not Supported

• Video Bit Rate: 32 Kbps to 8 Mbps

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM

• Audio Bit Rate:

  • G.711: 64 Kbps

  • G.722.1: 16 Kbps

  • G.726: 16 Kbps

  • MP2L2: 32 to 160 Kbps

• Audio Sampling Rate: 8 kHz / 16 kHz

• Environment Noise Filtering: Yes

Camera/Image:

• Max. Resolution: 2MP

• Main Stream:

  • 50Hz: 25 fps (1920 × 1080, 1280 × 720)

  • 60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-stream:

  • 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

  • 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• Day/Night Switch: Auto/Scheduled/Day/Night

Camera/Network:

• Alarm Trigger: Motion detection, video tampering, illegal login

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour

• General Function: Heartbeat, mirror, password protection, privacy mask, watermark

• Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Camera/Interface:

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

• On-board Storage: 128 GB

• Audio I/O: 1 Built-in mic

• Video Out: No

• Alarm I/O: No

• Reset Button: No

Camera/General:

• Power Supply: 12 VDC ± 25%, 0.4 A, Φ 5.5 mm coaxial plug power

• Consumption: ≤ 5 W

• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)

• Working Humidity: 95% or less (non-condensing)

• Dimension (W × D × H): 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6")

• Weight: 272 g (0.6 lb)

NVR Specifications:

NVR/Video and Audio:

• IP Video Input: 4-ch

• Incoming/Outgoing Bandwidth: 50 Mbps / 40 Mbps

• HDMI/VGA Output:

  • Resolution:

    • 1920 × 1080/60Hz

    • 1280 × 1024/60Hz

    • 1280 × 720/60Hz

    • 1024 × 768/60Hz

• Audio Output: 1-ch, RCA (linear, 1 KΩ)

• Decoding Capability: 2-ch @ 1080p / 1-ch @ 4 MP

• Synchronous Playback: 4-ch

NVR/Network:

• Network Interface: 1, RJ45 10/100M Ethernet interface

• Network Protocol: IPv6, UPnP™, NTP, SADP, DHCP

• Remote Connection: 16

NVR/Wi-Fi:

• Frequency Band: 2.4 GHz

• Antenna Structure: 2 × 2 MIMO

• Transmission Speed: 144 Mbps

• Transmission Standard: IEEE 802.11b/g/n

NVR/Auxiliary Interface:

• SATA: 1 (Up to 6 TB capacity for each disk)

• USB Interface: Rear panel: 2 × USB 2.0

• Alarm In/Out: No

NVR/General:

• Power Supply: 12 VDC

• Consumption (without HDD and PoE off): ≤ 12 W

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity: 10% to 90%

• Dimension (W × D × H): 260 mm × 246 mm × 48 mm (10.2" × 9.7" × 1.9")

• Weight (without hard disk): ≤ 1 kg (2.2 lb)
