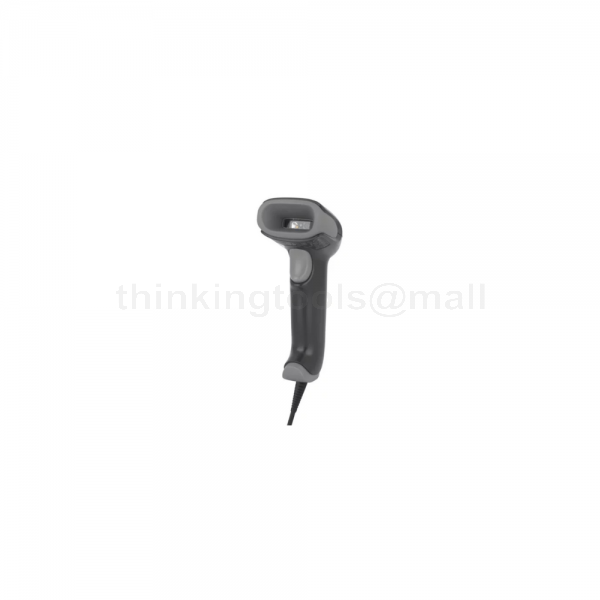

HONEYWELL 1470G2D-2USB HANDHELD 2D BARCODE SCANNER

Specifications:

Scanning

• Scanner Type: Handheld 1D / 2D area imager

• Sensor Resolution: 1040 × 720 pixels

• Scan Pattern: Omni-directional

• Supported Codes:

  • 1D: UPC, EAN, Code 39, Code 128, etc.

  • 2D: QR Code, Data Matrix, PDF417, DotCode

Performance

• Typical Scan Distance: Up to ~40 cm

• Scan Angles:

  • Yaw: ±70°

  • Pitch: ±65°

  • Roll: 360°

• Motion Tolerance: Up to ~70 cm/s

• Ambient Light Tolerance: Up to 100,000 lux

Connectivity

• Interface: USB (wired)

• Power Source: USB-powered

Durability

• Drop Resistance: Up to 1.8 m

• Ingress Protection: IP40

• Tumble Rating: Up to 1,000 tumbles at 0.5 m

Power

• Input Voltage: 4.0 – 5.5 V DC

• Power Consumption:

  • Active: ~2 W

  • Standby: ~0.45 W

Physical

• Color: Black / Gray

• Dimensions: ~16.9 × 8.2 × 6.2 cm

• Weight: ~130 g

Environmental

• Operating Temperature: 0°C – 50°C

• Storage Temperature: –40°C – 60°C

• Humidity: 0 – 95% (non-condensing)

Package Contents

• Barcode Scanner ×1

• USB Cable ×1

• User Manual ×1
