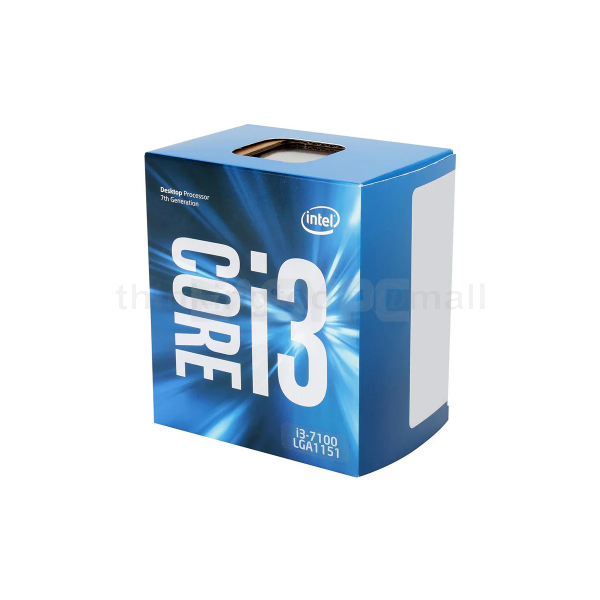

INTEL CORE I3 7100 3.9GHZ 3MB LGA1151 14NM

0 Review
₱7,000.00
Availability: Out of stock
SKU:
CPU-INT-CI3-7100
The Intel Core i3-7100, part of the 7th Generation Kaby Lake processors, offers 2 cores and 4 threads with a base frequency of 3.90 GHz. It features Intel HD Graphics 630, supports 64 GB of DDR4/DDR3L memory, and provides a thermal design power (TDP) of 51W. Launched in Q1 2017, this processor supports advanced technologies like Intel® Quick Sync Video and Intel® Virtualization Technology.
Brands:

Intel Core i3-7100 Specifications:

  • Product Collection: 7th Generation Intel® Core™ i3 Processors

  • Code Name: Kaby Lake

  • Vertical Segment: Desktop

  • Processor Number: i3-7100

  • Lithography: 14 nm

  • CPU Specifications:

    • Total Cores: 2

    • Total Threads: 4

    • Processor Base Frequency: 3.90 GHz

    • Cache: 3 MB Intel® Smart Cache

    • Bus Speed: 8 GT/s

    • # of QPI Links: 0

    • TDP: 51 W

  • Memory Specifications:

    • Max Memory Size: 64 GB (dependent on memory type)

    • Memory Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V

    • Max # of Memory Channels: 2

    • ECC Memory Supported: Yes

  • GPU Specifications:

    • GPU Name: Intel® HD Graphics 630

    • Graphics Base Frequency: 350 MHz

    • Graphics Max Dynamic Frequency: 1.10 GHz

    • Graphics Video Max Memory: 64 GB

    • 4K Support: Yes, at 60Hz

    • Max Resolution (HDMI): 4096x2304 @ 24Hz

    • Max Resolution (DP): 4096x2304 @ 60Hz

    • Max Resolution (eDP - Integrated Flat Panel): 4096x2304 @ 60Hz

    • DirectX Support: 12

    • OpenGL Support: 4.5

    • Intel® Quick Sync Video: Yes

    • Intel® InTru™ 3D Technology: Yes

    • Intel® Clear Video HD Technology: Yes

    • Intel® Clear Video Technology: Yes

    • # of Displays Supported: 3

    • Device ID: 0x5912

  • Expansion Options:

    • Scalability: 1S Only

    • PCI Express Revision: 3.0

    • PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4

    • Max # of PCI Express Lanes: 16

  • Package Specifications:

    • Sockets Supported: FCLGA1151

    • Max CPU Configuration: 1

    • Thermal Solution Specification: PCG 2015C (65W)

    • TJUNCTION: 100°C

    • Package Size: 37.5 mm x 37.5 mm

  • Advanced Technologies:

    • Intel® Optane™ Memory Supported: Yes

    • Intel® Turbo Boost Technology: No

    • Intel® Hyper-Threading Technology: Yes

    • Intel® Transactional Synchronization Extensions: No

    • Intel® 64: Yes

    • Instruction Set: 64-bit

    • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

    • Idle States: Yes

    • Enhanced Intel SpeedStep® Technology: Yes

    • Thermal Monitoring Technologies: Yes

    • Intel® Identity Protection Technology: Yes

  • Security & Reliability:

    • Intel® Software Guard Extensions (Intel® SGX): Yes with Intel® ME

    • Intel® AES New Instructions: Yes

    • Secure Key: Yes

    • Intel® Memory Protection Extensions (Intel® MPX): Yes

    • Intel® OS Guard: Yes

    • Intel® Trusted Execution Technology: No

    • Execute Disable Bit: Yes

    • Intel® Boot Guard: Yes

    • Intel® Stable IT Platform Program (SIPP): No

    • Intel® Virtualization Technology (VT-x): Yes

    • Intel® Virtualization Technology for Directed I/O (VT-d): Yes

    • Intel® VT-x with Extended Page Tables (EPT): Yes
