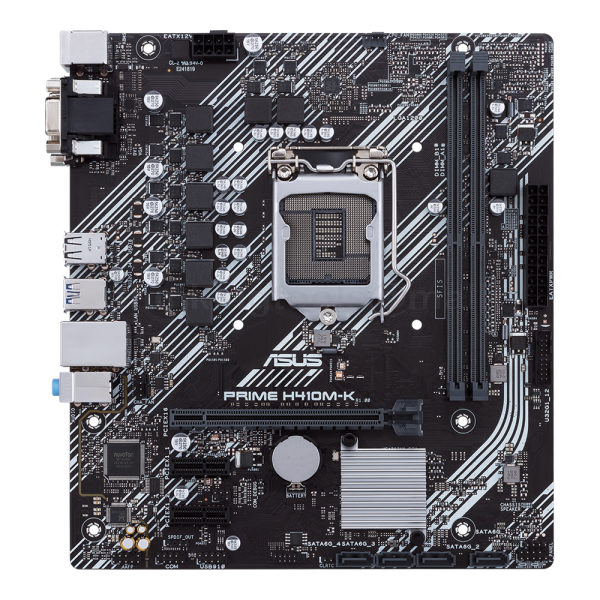

ASUS PRIME H410M-K 2DDR4 MOTHERBOARD (DB15, DVI) W/ COM PORT HEADER
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Brands:
SPECIFICATIONS
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H410 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
Graphic |
Integrated Graphics Processor 1 x DVI-D 1 x D-Sub *Graphics specifications may vary between CPU types. |
| Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 2 x PCIe 3.0 x1 |
| Storage | Total supports 4x SATA 6Gb/s ports Intel® H410 Chipset : 4 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H |
|
Audio |
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature :- Audio Shielding- Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
|
Software Features |
ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
ASUS Special Features |
ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
|
Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 3 x Audio jack(s) |
|
Internal I/O Ports |
1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
|
Accessories |
I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
