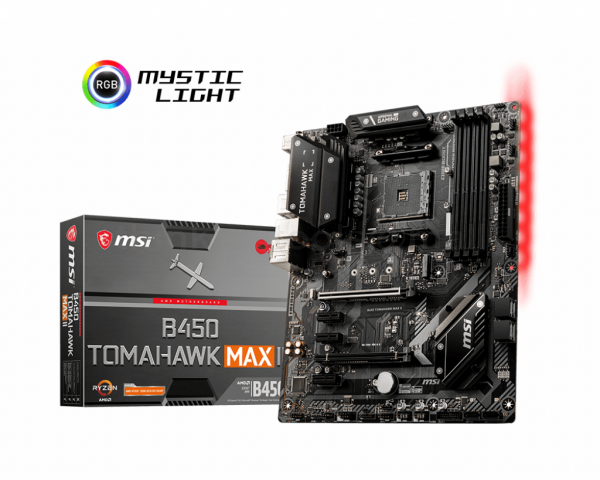

MSI B450 TOMAHAWK MAX II A,V,GBL 4DDR4 M.2 MOTHERBOARD (DVI, HDMI)
B450 TOMAHAWK MAX II
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU:Supports 2-Way AMD Crossfire™. By STEEL ARMOR PCI-E slot & STEEL PCI-E slot.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Brands:
SPECIFICATIONS
| CPU (MAX SUPPORT) | RYZEN 9 |
| SOCKET | AM4 |
| CHIPSET | AMD® B450 Chipset |
| DDR4 MEMORY | 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133 by A-XMP OC mode For AMD Other CPU 2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E GEN | Gen3(PCI_E1), Gen2(PCI_E4) |
| PCI-E X1 | 3 |
| SATAIII | 6 |
| M.2 SLOT | 1 |
| RAID | 0/1/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® 8111H Gigabit LAN controller |
| USB 3.2 PORTS (FRONT) | 2(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC892/ALC897 Codec |
| DVI-D | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| FORM FACTOR | ATX |
