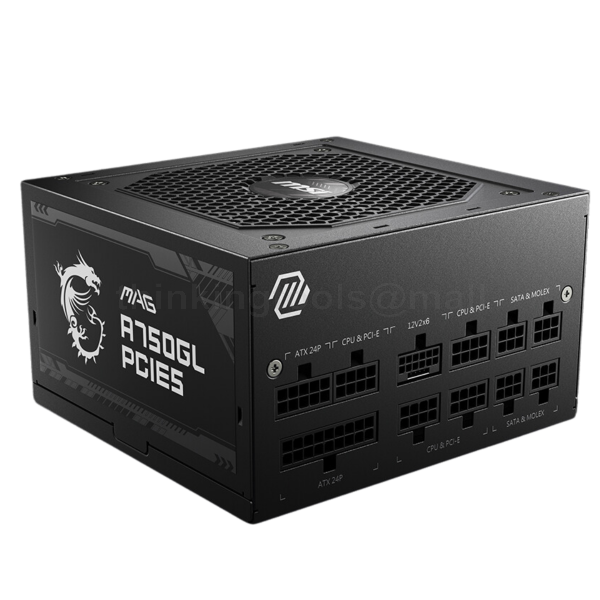

MSI MAG A750GL PCIE5 750W 1X120MM FAN, 8SATA, 6PIN PCIE, ACTIVE PFC, 80PLUS GOLD
The MSI MAG A750GL PCIE5 power supply is designed for gamers, featuring ATX 3.0 compatibility and a native PCIe 5.0 connector, supporting high-performance graphics cards like the NVIDIA GeForce RTX 40 Series. With an 80 PLUS Gold certification, it ensures high efficiency and lower energy consumption, while its compact design and flat cables simplify cable management and improve airflow. Equipped with a 120mm fluid dynamic bearing fan and multiple protection mechanisms (OVP, OCP, OPP, OTP, SCP, UVP), this PSU delivers stable power for demanding systems.
Specifications:
-
Efficiency Rating: 80 PLUS Gold (up to 90%)
-
Modular: Yes (full modular)
-
Fan Size: 120 mm
-
Fan Bearing: Fluid Dynamic Bearing
-
Dimensions (DxWxH): 140 x 150 x 86 mm
-
PFC Type: Active PFC
-
Input Voltage Range: 100~240 VAC
-
Power Watt: 750W
-
Power Excursion: 1500W (up to 200% of the PSU's rated power for 100μs)
-
Input Frequency Range: 47-63 Hz
-
Protection Features: OCP, OVP, OPP, OTP, SCP, UVP
-
Connectors:
-
ATX (24 pin): 1
-
EPS (4+4 pin): 2
-
PCI-E 5.0 (16 pin): 1 (450W)
-
PCI-E (6+2 pin): 3
-
SATA (15 pin): 8
-
MOLEX (4 pin): 4
-
FDD (4 pin): 1
-
