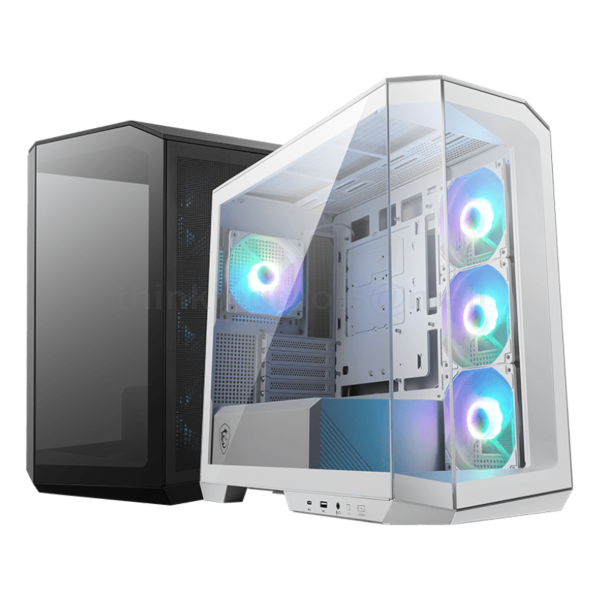

MSI MAG PANO M100R PROJECT ZERO MICRO ATX CASE
The MAG PANO M100R PZ Gaming Case combines military-inspired ruggedness with advanced aesthetics, featuring a 270-degree panoramic display to showcase your ARGB PC build. It supports a back-connect motherboard and includes a reverse-blade side fan and an ARGB-PWM control board for streamlined cable management. This case is designed for gamers who value both durability and striking visual appeal.
Specifications:
-
Manufacturer Number: MAG PANO M100R PZ
-
Product Condition: New
-
Form Factor: Micro-ATX Tower
-
Power Supply: Standard ATX (PSU Not Included)
-
LED Light: ARGB
-
I/O Ports:
-
1 x USB 3.2 Gen 1 Type-A
-
1 x USB 3.2 Gen 2x2 Type-C
-
1 x Audio-Out / Mic-In
-
1 x LED Switch Button
-
1 x Power Button
-
-
Drive Bays:
-
1 x 2.5”
-
1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5” + 1 x 3.5”)
-
-
Case Expansion Slots: 5
-
Maximum GPU Length: 390 mm (15.35 inches) (Horizontal installation only)
-
Maximum CPU Cooler Height: 175 mm (6.9 inches)
-
Radiator Compatibility:
-
Top: 120 / 240 / 360 mm
-
Front: NA
-
Rear: 120 / 140 mm
-
Side: NA
-
Bottom: NA
-
-
Supported Motherboard Form Factors: M-ATX (Back-connect supported) / ITX
-
Pre-Installed Fans:
-
Side: 3 x 120 mm
-
Rear: 1 x 120 mm
-
-
Fan Size:
-
Top: 3 x 120 mm / 2 x 140 mm
-
Front: NA
-
Rear: 1 x 120 mm / 1 x 140 mm
-
Side: 3 x 120 mm
-
Bottom: 1 x 120 mm
-
PSU Shroud: 2 x 120 mm
-
-
Dimensions: 17.32" x 9.25" x 15.94" (440 x 235 x 405 mm)
-
Weight: 19.42 lbs (8.8 kg)
-
Manufacturer Warranty: 2 Years
