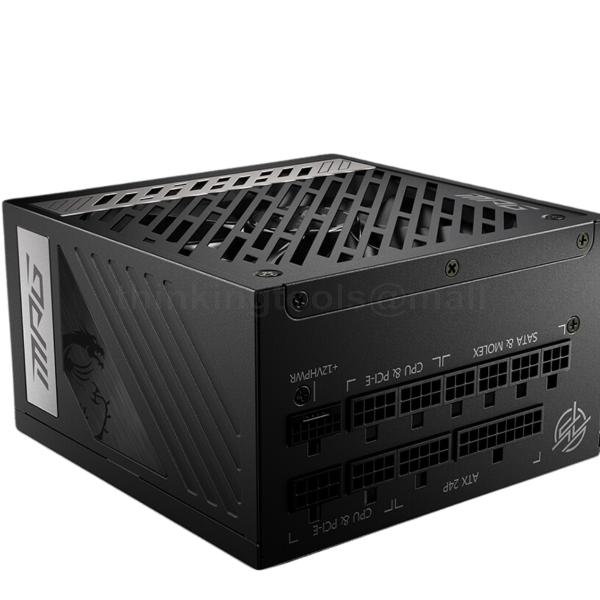

MSI MPG A1000G PCIE5 1000W 1X135MM FAN, 12SATA, 6PIN PCIE, ACTIVE PFC, 80PLUS GOLD
The MSI MPG A1000G PCIE5 power supply combines stylish design with exceptional performance, perfectly suited for gamers. It features ATX 3.0 compatibility and a native 16-pin PCIe connector, supporting NVIDIA GeForce RTX 40 Series graphics cards with up to 600W of power. With an 80 PLUS Gold certification, full modular design, and industrial-level protections, this PSU ensures efficiency and reliability for high-performance gaming systems.
Specifications:
-
Efficiency Rating: 80 PLUS Gold (up to 90%)
-
Modular: Yes (fully modular)
-
Fan Size: 135 mm
-
Fan Bearing: Fluid Dynamic Bearing
-
Dimensions (DxWxH): 150 x 150 x 86 mm
-
PFC Type: Active PFC
-
Input Voltage Range: 100~240 VAC
-
Power Watt: 1000W
-
Power Excursion: 2000W (up to 200% of the PSU's rated power for 100μs)
-
Input Frequency Range: 50~60 Hz
-
Protection Features: OCP, OVP, OPP, OTP, SCP, UVP
-
Connectors:
-
ATX (24 pin): 1
-
EPS (4+4 pin): 2
-
PCI-E 5.0 (16 pin): 1 (600W)
-
PCI-E (6+2 pin): 6
-
SATA (15 pin): 12
-
MOLEX (4 pin): 4
-
FDD (4 pin): 1
-
