TPLINK SF1008D 8PORT 10/100 MINI DESKSTOP SWITCH | TP-Link

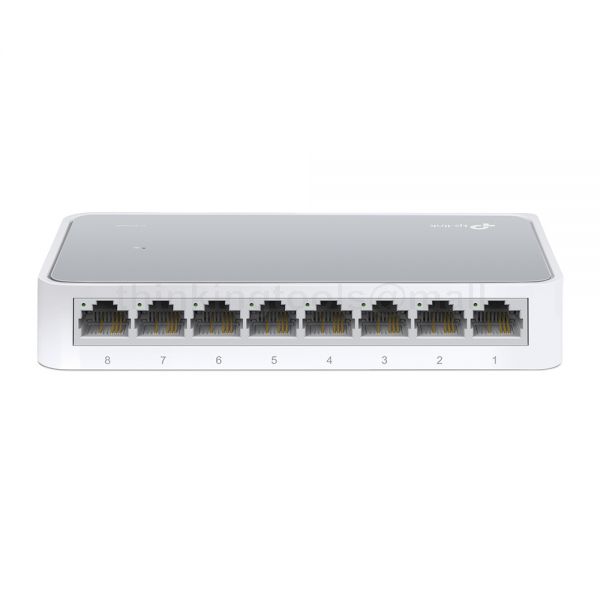

TL-SF1008D
8-Port 10/100Mbps Desktop Switch
- 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Brands:
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | 100-240VAC, 50/60Hz (Output: 9VDC / 0.6A) |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex |
| LED Indicator | Power Port network activity (on the network module) |
| Dimensions ( W x D x H ) | 5.3 × 3.1 × 0.9 in. (135 × 79 × 23mm) |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
SOFTWARE FEATURES |
|
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology 802.3X Flow Control, Back Pressure |
OTHERS |
|
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 8-Port 10/100Mbps Desktop Switch Power Adapter User Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
