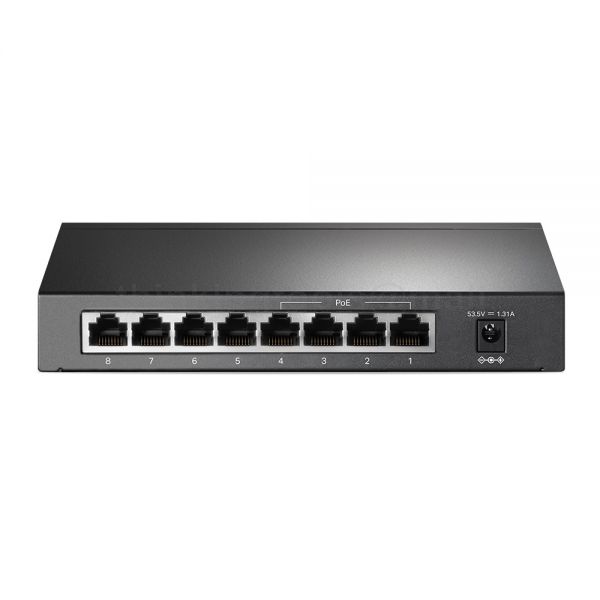

TPLINK SG1008P 8PORT GIGABIT SWITCH (4PORTS W/ POE SUPPORT) | TP-Link
TL-SG1008P
8-Port Gigabit Desktop Switch with 4-Port PoE+
- 8× 10/100/1000 Mbps RJ45 ports.
- 4× PoE+ ports transfer data and power on the cables
- Works with IEEE 802.3af/at compliant PDs
- Plug and Play, no configuration and installation required
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 30 W for each PoE port
- Supports PoE power up to 64 W for all PoE ports*
Brands:
HARDWARE FEATURES |
|
|---|---|
| Interface | 8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External power adapter (Output: 54VDC / 1.3A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: ports 1–4 • Power budget for all PoE ports: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171×98×27 mm) |
| Max Power Consumption | • 5.4 W (with no PD connected) • 75 W (with 64W PD connected) |
| Max Heat Dissipation | • 18.4 BTU/h (with no PD connected) • 225.8 BTU/h (with 64 W PD connected) |
SOFTWARE FEATURES |
|
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG1008P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
