TPLINK SG1024 24PORT GIGABIT SWITCH | TP-Link

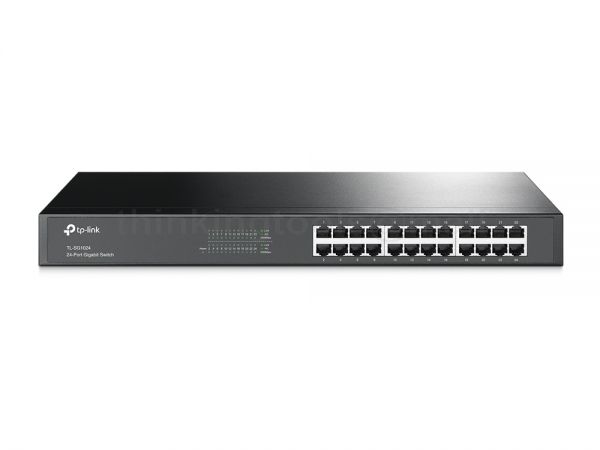

TL-SG1024
24-Port Gigabit Rackmount Switch
- 24 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Brands:
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
| Mounting | 19" Rack Mountable |
| Max Power Consumption | 13.6W |
| Max Heat Dissipation | 46.4BTU/h |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| QoS | 802.1p/DSCP QoS* *Only for V11 and later version |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 24-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
