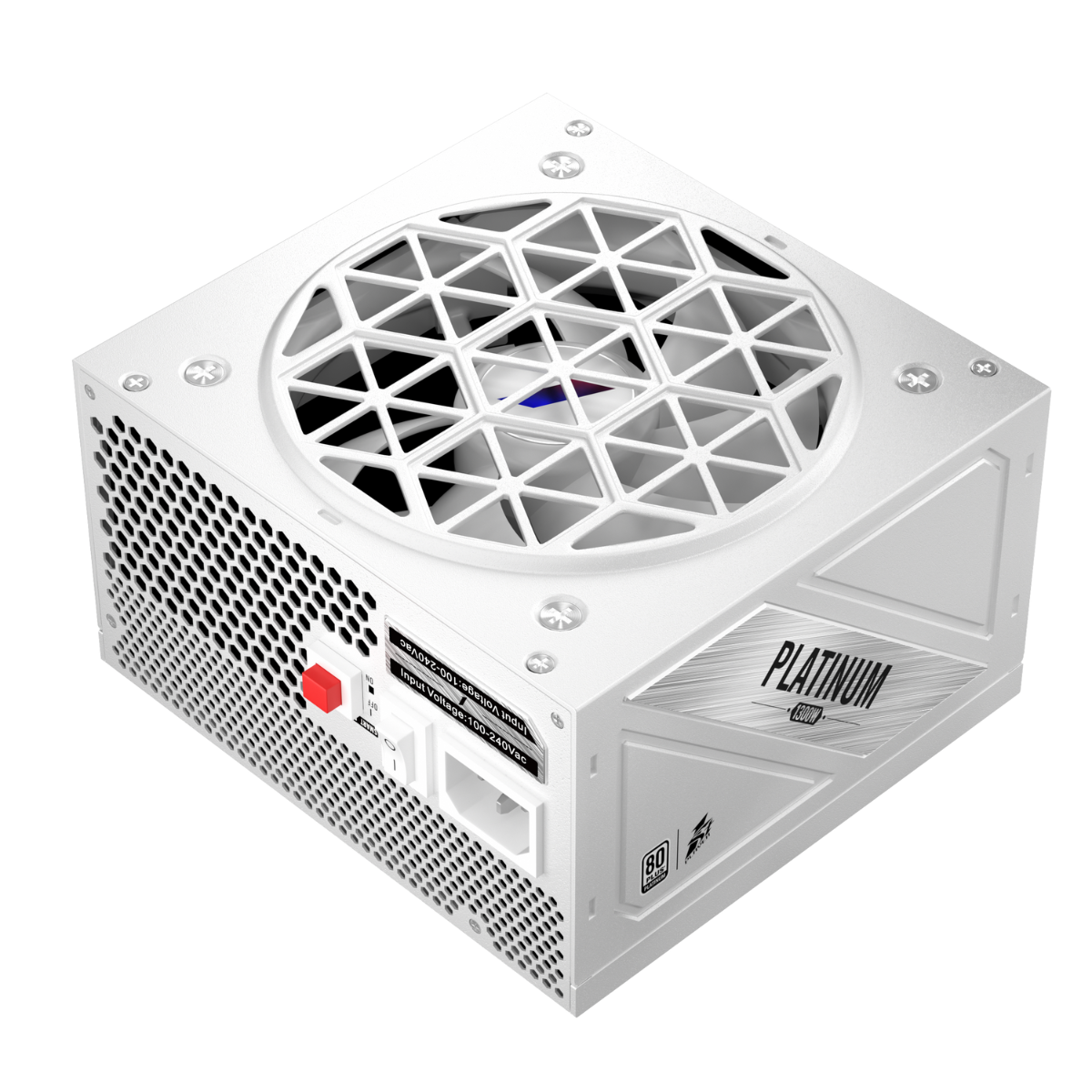

1STPLAYER NGDP 1300W 80PLUS PLATINUM MODULAR PSU (WHITE)

Specifications:

• Model Specifications

  • Model: HA-1000BA3 / HA-1300BA3

  • Dimensions (L x W x H): 140 x 150 x 86 mm

• Modular Design

  • Type: Full-Modular

• Certifications

  • Certification: 80 PLUS Platinum

  • Warranty: 10 years

• Input Specifications

  • Input Voltage: 100 - 240 Vac

  • Input Current: 15 - 7.5 A

  • Input Frequency: 50 - 60 Hz

• Efficiency

  • Efficiency:

    • 91.01% at full load (1000W)

    • 90.62% at full load (1300W)

• Output Capacity

  • Output Capacity: 1000 W / 1300 W

• Power Factor Correction

  • PFC: Active PFC

• Fan Specifications

  • Fan Size: 120 mm FDB

• Protections

  • Protection Features:

    • UVP (Under Voltage Protection)

    • OVP (Over Voltage Protection)

    • OPP (Over Power Protection)

    • SCP (Short Circuit Protection)

    • OCP (Over Current Protection)

    • OTP (Over Temperature Protection)

• Environmental Specifications

  • Protection Temperature: 0 - 40€žÆ'

  • MTBF (Mean Time Between Failures): 100,000 hours

• Circuit Structure

  • Circuit Design: LLC + DC-DC

• Regulatory Compliance

  • Regulatory Certifications: CE, FCC, C-Tik, ROHS, CCC, cTUVus, IEC, EAC
