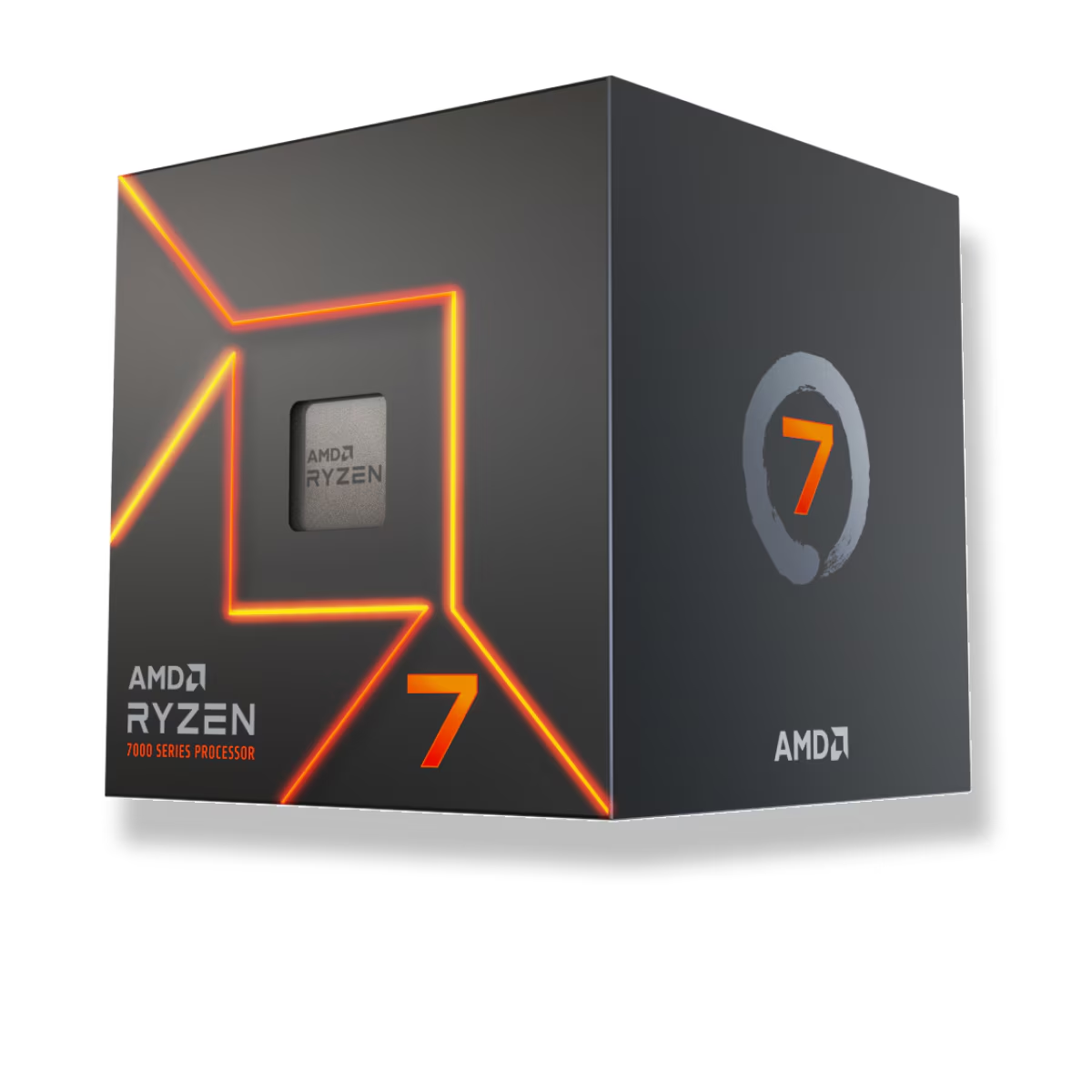

AMD RYZEN 7 7700 3.8GHZ 8CORE/16THREAD/65W (AM5) W/ FAN

Specifications:

• • Name: AMD Ryzen€žÂ¢ 7 7700

  • Family: Ryzen

  • Series: Ryzen 7000 Series

  • Form Factor: Desktops, Boxed Processor

  • Market Segment: Enthusiast Desktop

  • AMD PRO Technologies: No

  • Consumer Use: Yes

  • Regional Availability: Global

  • Former Codename: Raphael AM5

  • Architecture: Zen 4

  • # of CPU Cores: 8

  • Multithreading (SMT): Yes

  • # of Threads: 16

  • Max. Boost Clock: Up to 5.3 GHz

  • Base Clock: 3.8 GHz

  • L1 Cache: 512 KB

  • L2 Cache: 8 MB

  • L3 Cache: 32 MB

  • Default TDP: 65W

  • Processor Technology for CPU Cores: TSMC 5nm FinFET

  • Processor Technology for I/O Die: TSMC 6nm FinFET

  • CPU Compute Die (CCD) Size: 71mm²

  • I/O Die (IOD) Size: 122mm²

  • Package Die Count: 2

  • Unlocked for Overclocking: Yes

  • AMD EXPO€žÂ¢ Memory Overclocking Technology: Yes

  • Precision Boost Overdrive: Yes

  • Curve Optimizer Voltage Offsets: Yes

  • AMD Ryzen€žÂ¢ Master Support: Yes

  • CPU Socket: AM5

  • Supporting Chipsets: A620, X670E, X670, B650E, B650

  • CPU Boost Technology: Precision Boost 2

  • Instruction Set: x86-64

  • Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

  • Thermal Solution (PIB): AMD Wraith Prism

  • Max. Operating Temperature (Tjmax): 95C

  • OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

  • Connectivity:

    • Native USB 3.2 Gen 2 (10Gbps) Ports: 4

    • Native USB 3.2 Gen 1 (5Gbps) Ports: 0

    • Native USB 2.0 (480Mbps) Ports: 1

    • Native SATA Ports: 0

  • PCI Express Version: PCIe 5.0

  • Native PCIe Lanes (Total/Usable): 28, 24

  • Additional Usable PCIe Lanes from Motherboard:

    • X670E: 12x Gen4

    • X670: 12x Gen4

    • B650E: 8x Gen4

    • B650: 8x Gen4

  • NVMe Support: Boot, RAID0, RAID1, RAID10

  • System Memory Type: DDR5

  • Memory Channels: 2

  • Max. Memory: 128 GB

  • System Memory Subtype: UDIMM

  • Max Memory Speed:

    • 2x1R DDR5-5200

    • 2x2R DDR5-5200

    • 4x1R DDR5-3600

    • 4x2R DDR5-3600

  • ECC Support: Yes (Requires motherboard support)

  • Graphics Capabilities:

    • Graphics Model: AMD Radeon€žÂ¢ Graphics

    • Graphics Core Count: 2

    • Graphics Frequency: 2200 MHz

    • USB Type-C DisplayPort€žÂ¢ Alternate Mode: Yes
