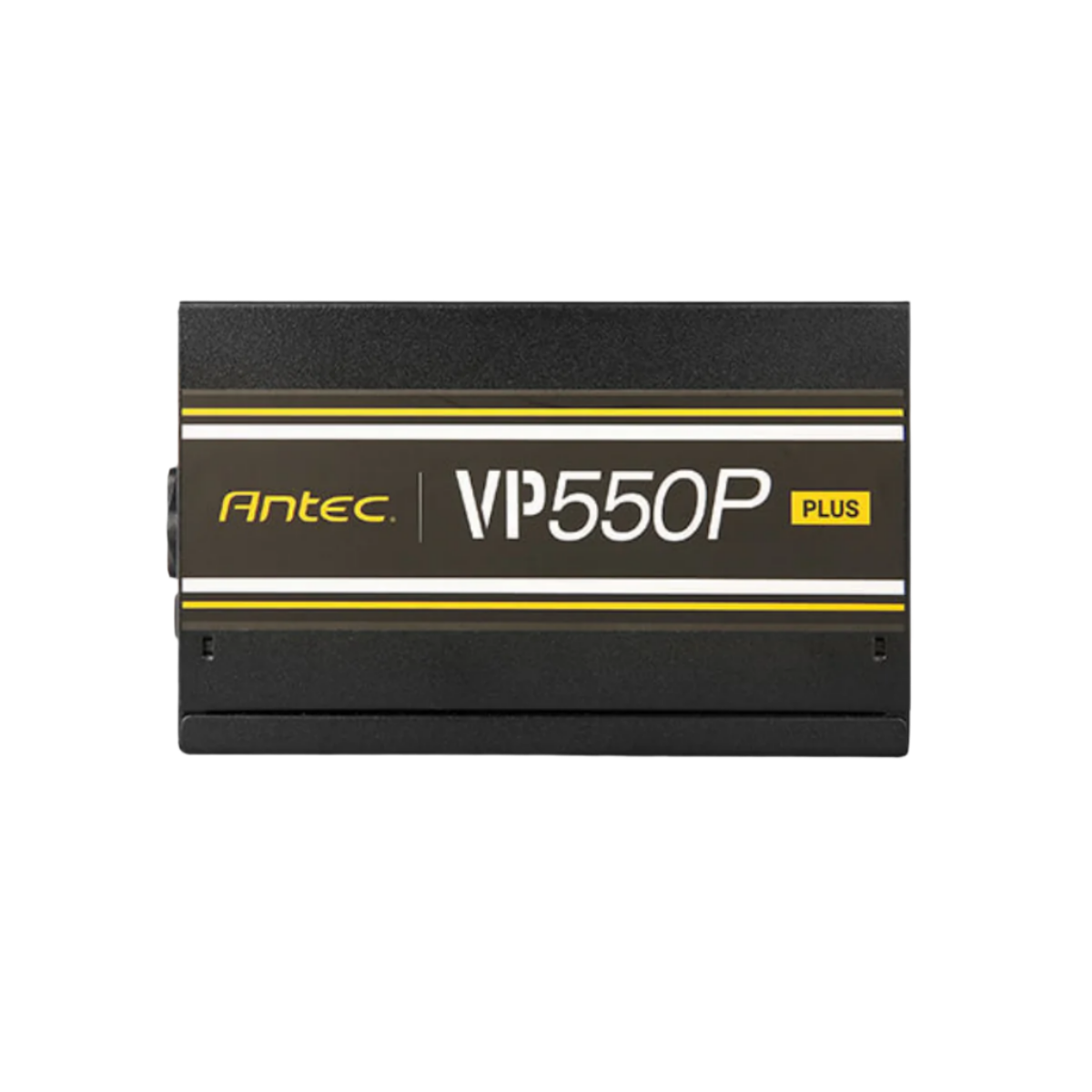

ANTEC VP550P PLUS 550W 1X120MM FAN, ACTIVE PFC

Product Description

The VP550P PLUS is an entry-level power supply that combines quality and performance with exceptional energy efficiency, rated up to 85% and certified by 80 PLUS® 230V Standard. It features a 120 mm Silent Fan for quiet operation and a Thermal Manager for optimal heat and noise management. This reliable solution delivers power from 500W to 700W, ensuring consistent performance under various load conditions.

Product Specifications

• Product Name: VP550P PLUS
• Model Name: V3000A202H-18
• Modular: Non-Modular
• Dimensions (W x L x H): 140 mm(D) x 150 mm(W) x 86 mm(H)
• Warranty: 3 years
• Input Voltage: 200-240 VAC ±10%
• Input Current: 5A
• Input Frequency Range: 50-60 Hz
• PFC: Active PFC (>0.9 typical)
• Power Good Signal: 100-500 ms
• Efficiency: 85% Typically
• Protection Features: OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), NLO (No Load Operation)
• Output Capacity: 550W
• Regulatory Certifications: cTUVus, TUV, CB (IEC62368 Compliant), CE, KC
• Fan: 120 mm Silent Fan
• Certifications: 80 Plus
• Connectors:
  • 1 x 24(20+4) Pin Motherboard Connector
  • 1 x 8(4+4) Pin EPS 12V Connector
  • 2 x 8(6+2) Pin PCI-E Connectors
  • 7 x SATA Connectors
  • 2 x Molex Connectors
  • 1 x FDD Connector
• Net Weight: 1.71 kg
• Gross Weight: 2.10 kg

Key Features

• Guaranteed Continuous Power: Reliable performance from Antec.
• 80 PLUS® 230V Standard Certified: Up to 85% efficiency to lower electricity costs.
• AQ3 Warranty: Antec Quality 3-year warranty for peace of mind.
• 120mm Silent Fan: Ensures quiet operation.
• Thermal Manager: Advanced low voltage fan control for optimal heat and noise management.
• CircuitShield™: Comprehensive industrial-grade protections (OVP/SCP/OPP/NLO).
• Multi PCI-E Support: Two PCI-E connectors for multiple GPU setups.
