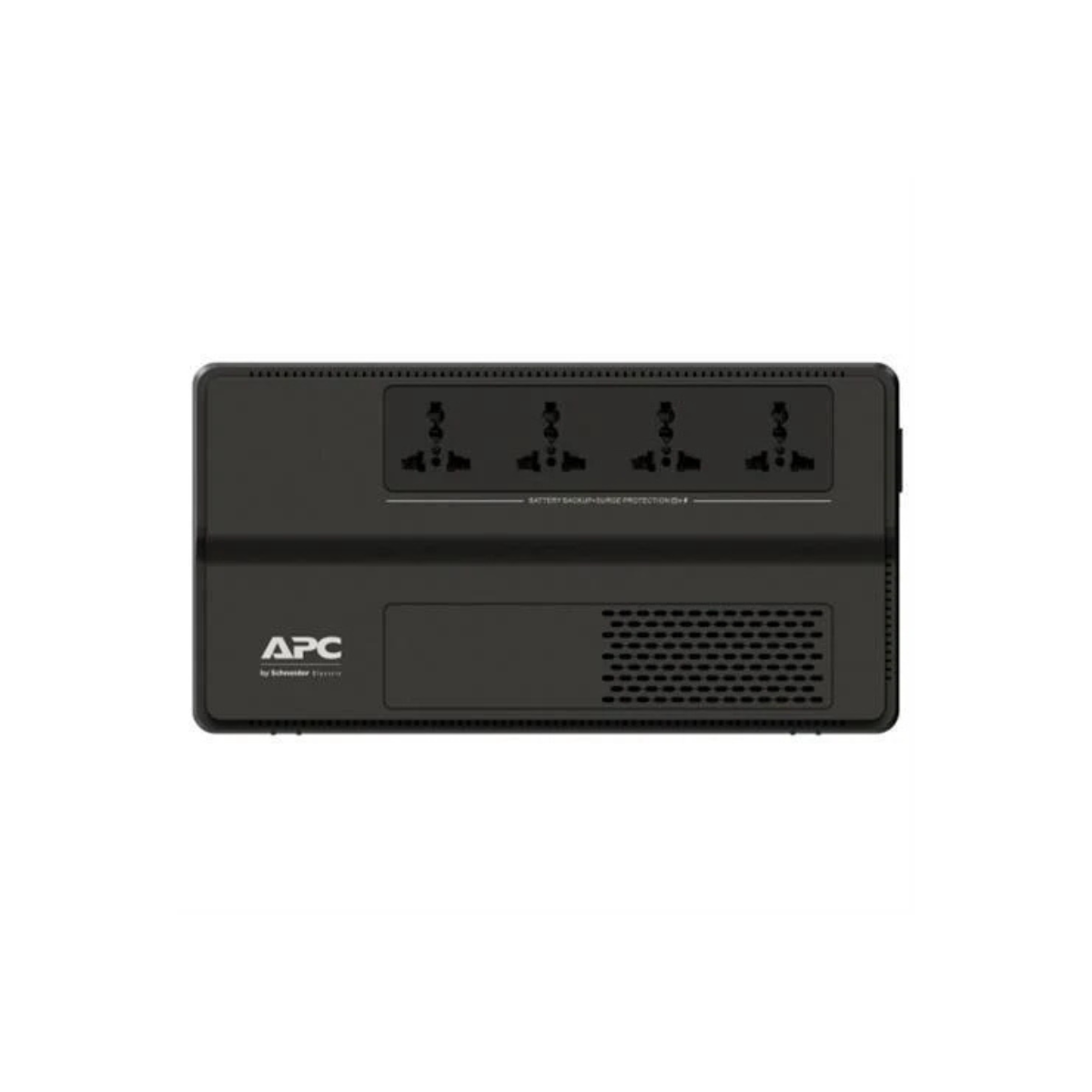

APC BV1000I-MS EASY UPS 1000VA 230V WITH AVR

Specifications:

Main Features:

• Product Type: Uninterruptible Power Supply (UPS)
• Rated Power: 600W / 1000VA
• Main Input Voltage: 230V
• Main Output Voltage: 230V
• Input Connection Type: NEMA 5-15P
• Output Connection Type: 4 universal receptacles (battery backup & surge protection)
• Cable Length: 1.20 meters
• Battery Type: Lead-acid battery
• Battery Voltage: 12V
• Battery Capacity: 9.0 Ah
• Battery Life: 3‚¬"5 years
• Battery Recharge Time: 8 hours
• Replacement Battery: RBC17
• Runtime: Refer to runtime graph (available online)
• Surge Energy Rating: 156 Joules
• Efficiency: Refer to efficiency graph (available online)
• Product Certifications: CE, EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
• Warranty: 2-year

Physical Characteristics:

• Color: Black
• Height: 9.25 cm
• Width: 16.05 cm
• Depth: 30.5 cm
• Net Weight: 5.7 kg
• Mounting Preference: No preference, not rack-mountable
• Acoustic Level: 40 dBA
• IP Protection: IP20

Electrical & Performance:

• UPS Type: Line Interactive
• Wave Type: Stepped approximation to a sine wave
• Input Voltage Limits: 170V ‚¬" 280V
• Input Frequency: 50/60 Hz +/- 5 Hz auto-sensing
• Output Frequency: 50/60 Hz +/- 1 Hz unsynchronized
• Transfer Time: 6 ms typical / 10 ms maximum
• Number of Battery Slots: 0 filled, 0 free
• Number of Power Module Slots: 0 filled, 0 free
• Redundant: No

Environmental Conditions:

• Operating Temperature: 0C to 40C
• Storage Temperature: -20C to 50C
• Operating Humidity: 0% to 90% RH
• Storage Humidity: 0% to 90% RH
• Operating Altitude: 0 to 6667 ft (0 to 2000 meters)
• Storage Altitude: 0 to 15,240 meters

Alarms & Alerts:

• Alarms:
  • Alarm when on battery
  • Distinctive low battery alarm
  • Overload continuous tone alarm

Communications & Management:

• USB Compatible: No
• Management Software: Not specified

Surge Protection & Filtering:

• Surge Energy Rating: 156 Joules

Packaging:

• Unit Type of Package: 1 PCE
• Units in Package: 1
• Package Dimensions:
  • Height: 23.7 cm
  • Width: 37.3 cm
  • Length: 14.3 cm
  • Weight: 6 kg

Additional Information:

• SCC14 Code: 10731304338250
