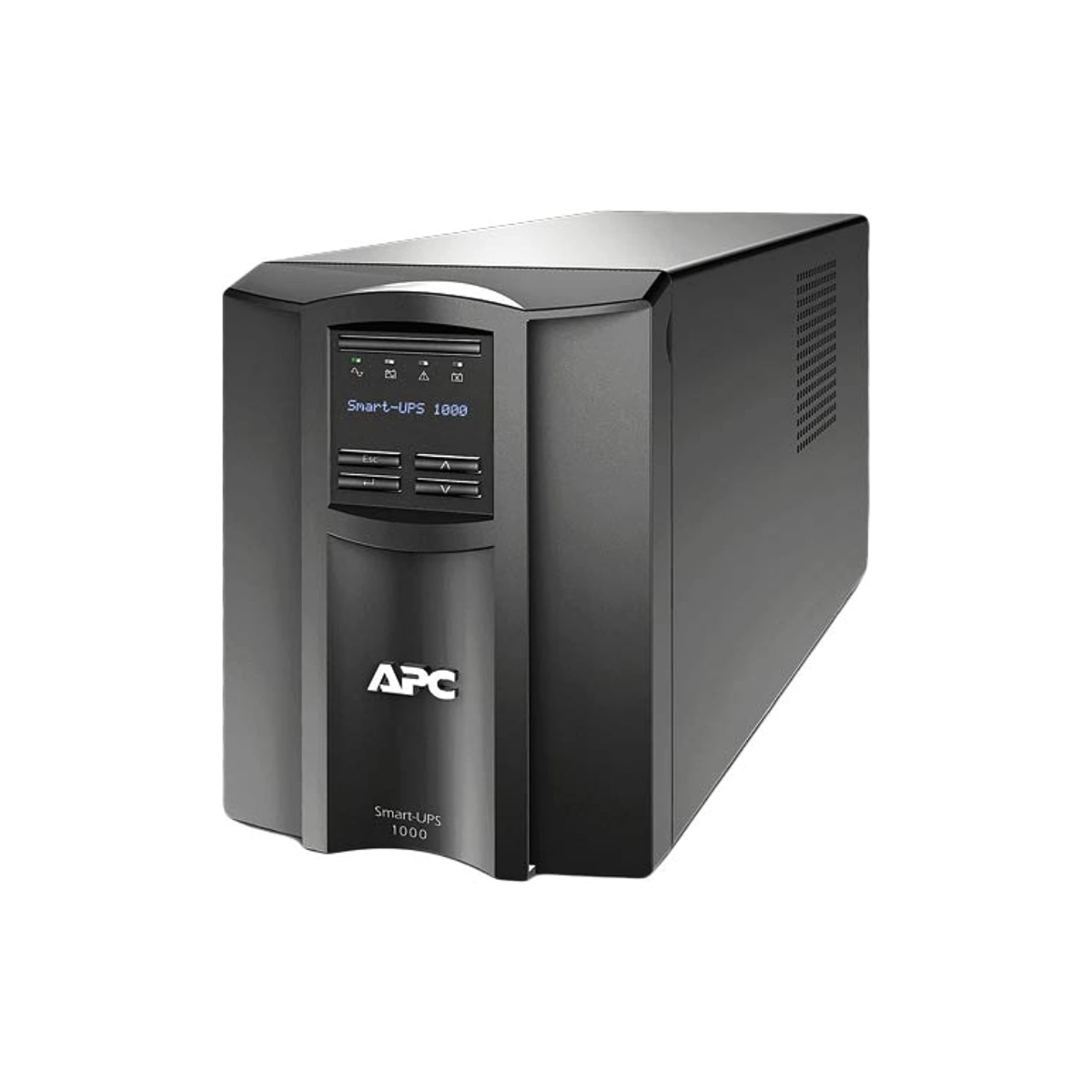

APC SMART-UPS SMT1000I 1000VA LCD 230V

Specifications:

Main Specifications

• Rated Power: 700 W (Max), 1000 VA
• Input Voltage: 230 V (220‚¬"240 V compatible)
• Output Voltage: 230 V (220‚¬"240 V configurable)
• Topography: Line Interactive
• Waveform Type: Pure Sine Wave
• Input Connection: IEC 320 C14
• Output Connection: 8 IEC 320 C13, 2 IEC Jumpers
• Battery Type: Lead-Acid Battery
• Battery Life: 3-5 years
• Recharge Time: 3 hours
• Typical Runtime at Full Load: 5 minutes 49 seconds (700W load)
• Communication Ports: SmartSlot, RS-232, USB
• Surge Protection Energy Rating: 459 J
• Efficiency at Full Load: 151‚¬"302 V adjustable input

Physical & Environmental Specifications

• Dimensions:
  • Height: 21.9 cm (8.62 in)
  • Width: 17.1 cm (6.73 in)
  • Depth: 43.9 cm (17.28 in)
• Weight: 18.86 kg (41.58 lb)
• Mounting: Non-rack-mountable, floor mount
• Noise Level: 41 dBA
• Operating Temperature: 0C to 40C (32F to 104F)
• Storage Temperature: -15C to 45C (5F to 113F)
• Operating Humidity: 0‚¬"95%
• Operating Altitude: 0 to 10,000 ft (0‚¬"3,048 m)
• Storage Altitude: 0 to 50,000 ft (0‚¬"15,240 m)

Battery & Runtime

• Battery Capacity: 1 RBC6 (user-replaceable)
• Battery Charge Power: 88 W
• Battery Slots: 0 filled, 0 free
• Runtime at Half Load: Approximately 10 minutes
• Battery Charger Power: 88 W
• Battery Recharge Time: 3 hours
• Battery Type: Lead-Acid
• Replacement Battery: RBC6

Certifications & Compliance

• Certifications: CE, EAC, RCM, VDE
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Additional Features

• LCD Console: Multi-function display for status and control
• Emergency Power Off (EPO): Optional
• Alarm: Battery, overload, low battery alerts
• Surge Filtering: Full-time multi-pole noise filtering

Packaging

• Unit Packaging:
  • Height: 37.6 cm (14.8 in)
  • Width: 32.8 cm (12.9 in)
  • Length: 59.5 cm (23.4 in)
  • Weight: 22.77 kg (50.2 lb)
• Shipping Units: 9 per pallet
• GTIN: 731304762331
