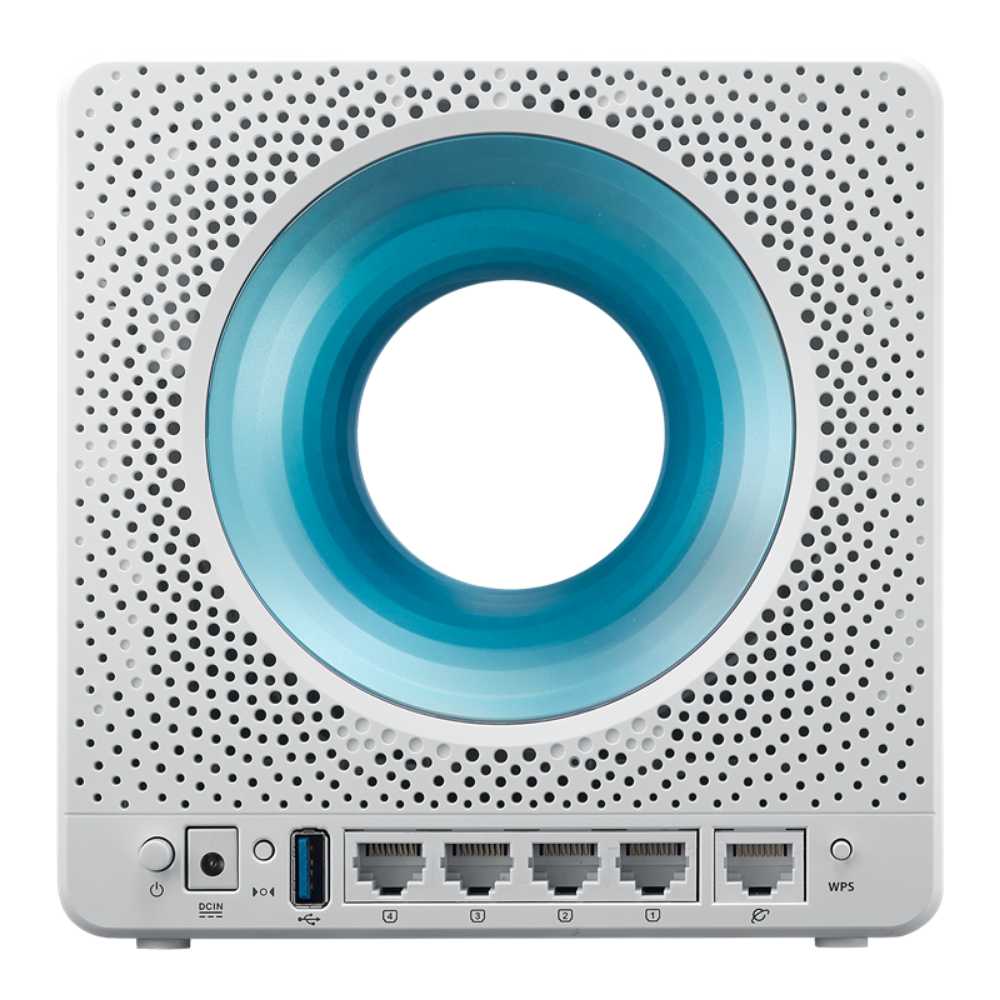

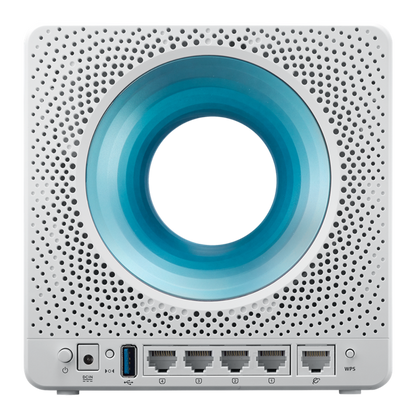

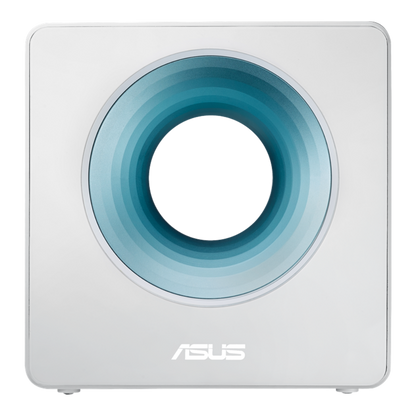

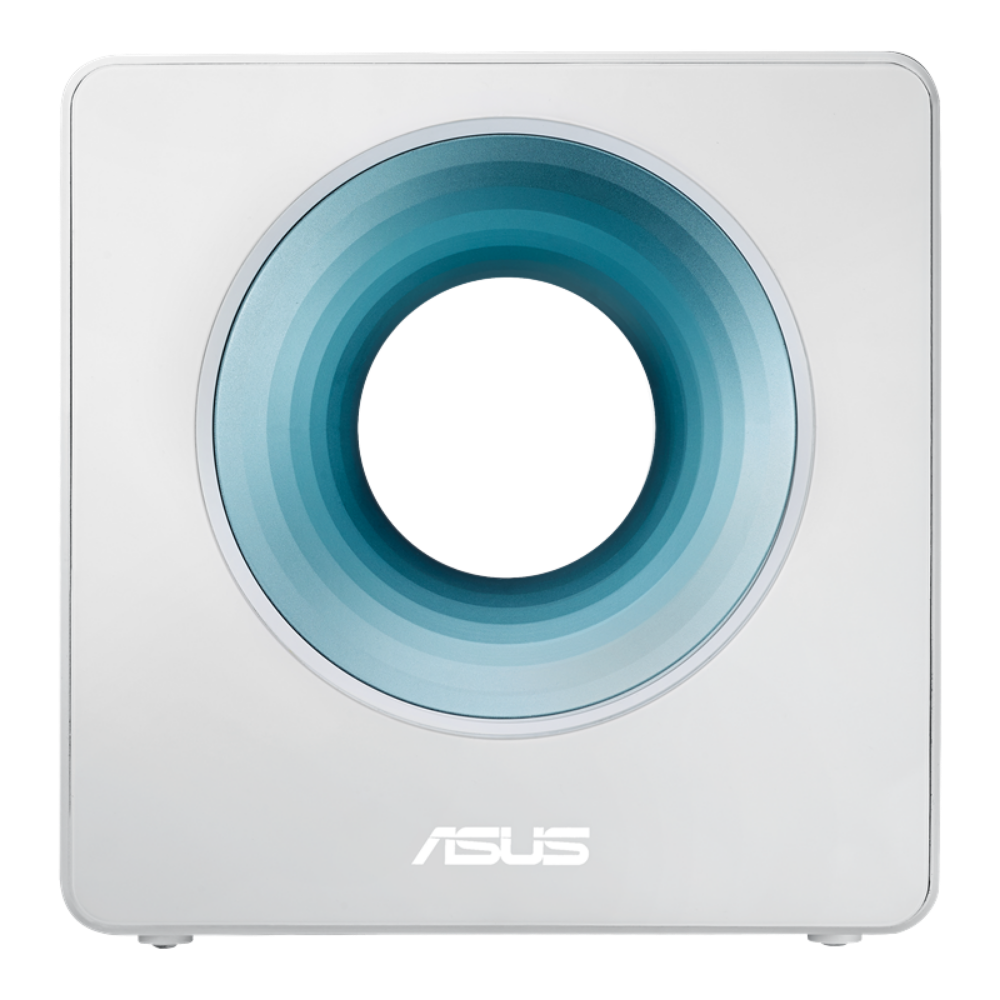

ASUS BLUE CAVE AC2600 DUAL BAND GIGABIT ROUTER

Specifications:

Model:

• Blue Cave Wireless-AC2600 Dual Band Gigabit Router

Network Standard:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• IPv4
• IPv6

WiFi Data Rate:

• 802.11a: Up to 54 Mbps
• 802.11b: Up to 11 Mbps
• 802.11g: Up to 54 Mbps
• WiFi 4 (802.11n): Up to 600 Mbps
• WiFi 4 (802.11n) (256QAM): Up to 800 Mbps
• WiFi 5 (802.11ac): Up to 1734 Mbps

Antenna:

• Internal Antennas: 4
• Transmit / Receive:
  • 2.4GHz: 4x4
  • 5GHz: 4x4

Memory:

• Flash: 128 MB
• RAM: 512 MB

Operating Frequency:

• 2.4 GHz / 5 GHz

Operating Mode:

• Access Point
• AiMesh Node
• Media Bridge
• Repeater
• Router

I/O Ports:

• LAN: 4 x RJ45 (10/100/1000 Mbps)
• WAN: 1 x RJ45 (10/100/1000 Mbps)
• USB 3.0: x1

Buttons:

• WPS Button
• Reset Button
• Power Button

Power Supply:

• AC Input: 110V240V (5060Hz)
• DC Output: 19V with max. 1.75A current

Package Content:

• 1 x Blue Cave Wireless-AC2600 Dual Band Gigabit Router
• 1 x RJ-45 Cable
• 1 x Power Adapter
• 1 x Warranty Card
• 1 x Quick Start Guide (QSG)

Product Weight:

• 800g

Product Dimensions:

• 160 x 160 x 80 mm (WxDxH)

AiMesh:

• Primary AiMesh Router
• AiMesh Node

Parental Control:

• Block access to unwanted websites and apps
• Customized internet schedule

Guest Network:

• Maximum Guest Network Rule:
  • 2.4GHz: 3
  • 5GHz: 3
• Guest Network Connection Time Limit
• Guest Network Encryption: Open system, WPA/WPA2-Personal

Security:

• AiProtection
  • Router Security Assessment
  • Malicious Site Blocking
  • Two-Way IPS
  • Infected Device Prevention and Blocking
• WPS
• SSH
• Firewall
  • Maximum Firewall Keyword Filter: 64
  • Maximum Firewall Network Service Filter: 32
  • Maximum Firewall URL Filter: 64
• VPN Support
  • VPN Client L2TP, OpenVPN, PPTP
  • VPN Server OpenVPN, PPTP

Traffic Control:

• Adaptive QoS
  • Bandwidth Monitor
  • Bandwidth Limiter: Max. 32 rules
• Traditional QoS: Max. 32 rules
• Traffic Monitor:
  • Real-time Traffic Monitor
  • Wired Traffic Monitor
  • Wireless Traffic Monitor
• Traffic Analyzer:
  • Traffic Analysis Period: Daily, Weekly, Monthly
  • Website History

WAN Configuration:

• Internet Connection Types:
  • PPPoE
  • PPTP
  • L2TP
  • Automatic IP
  • Static IP
• Dual WAN Support: 3G/4G LTE dongle
• Port Forwarding: Max. 64 rules
• Port Triggering: Max. 32 rules
• DMZ Support
• DDNS Support
• NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

LAN Configuration:

• DHCP Server
• IGMP Snooping
• IPTV Support
• Manually Assign IP Address: Max. 64 rules
• Wake on LAN (WOL)

Wireless Configuration:

• WiFi MAC Address Filter: Max. 64 filters
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB Applications:

• File System Supported:
  • HFS+, NTFS, vFAT, ext2, ext3, ext4
• HDD Hibernation
• Safely Remove Disk

AiCloud Services:

• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration:

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
