ASUS INTEL NUC 13 PRO-i3

Specifications:

Models:

• NUC13ANHI3: Intel Core€žÂ¢ i3-1315U

• NUC13ANHi5: Intel Core€žÂ¢ i5-1340P

• NUC13ANHI7: Intel Core€žÂ¢ i7-1360P

Processors:

• Intel Core€žÂ¢ i3-1315U (TDP 15W)

• Intel Core€žÂ¢ i5-1340P (TDP 28W)

• Intel Core€žÂ¢ i7-1360P (TDP 28W)

Graphics:

• Integrated Intel UHD Graphics (i3)

• Integrated Intel Iris Xe Graphics (i5/i7)

  • Note: Intel Iris Xe Graphics requires 128-bit dual channel memory for optimal performance

Memory:

• 2 x SODIMM slots

• Supports up to DDR4-3200MHz, up to 64GB

Storage:

• 1 x M.2 2280 PCIe Gen4x4 slot, supports 128GB~8TB NVMe€žÂ¢ SSD

• 1 x M.2 2242 SATA slot, supports 256GB~1TB SSD

• 1 x 2.5" SATA 6Gb/s slot, supports 4TB HDD (7~15mm)

  • Note: 2.5" HDD support is available on Tall SKUs only

Connectivity:

• Wireless:

  • Intel Wi-Fi 6E (Gig+) 2x2

  • Bluetooth 5.3

    • Note: Bluetooth v5.2 and later versions are supported in Windows 11 or later

    • Wi-Fi 7 and Wi-Fi 6E 6GHz regulatory may vary by country

• Networking:

  • 1 x Intel I226V, 2.5G LAN or Intel I226LM, 2.5G LAN (vPro support)

Front I/O:

• 2 x USB 3.2 Gen2 Type-A (1 x Front Panel, 1 x Front Panel Charging)

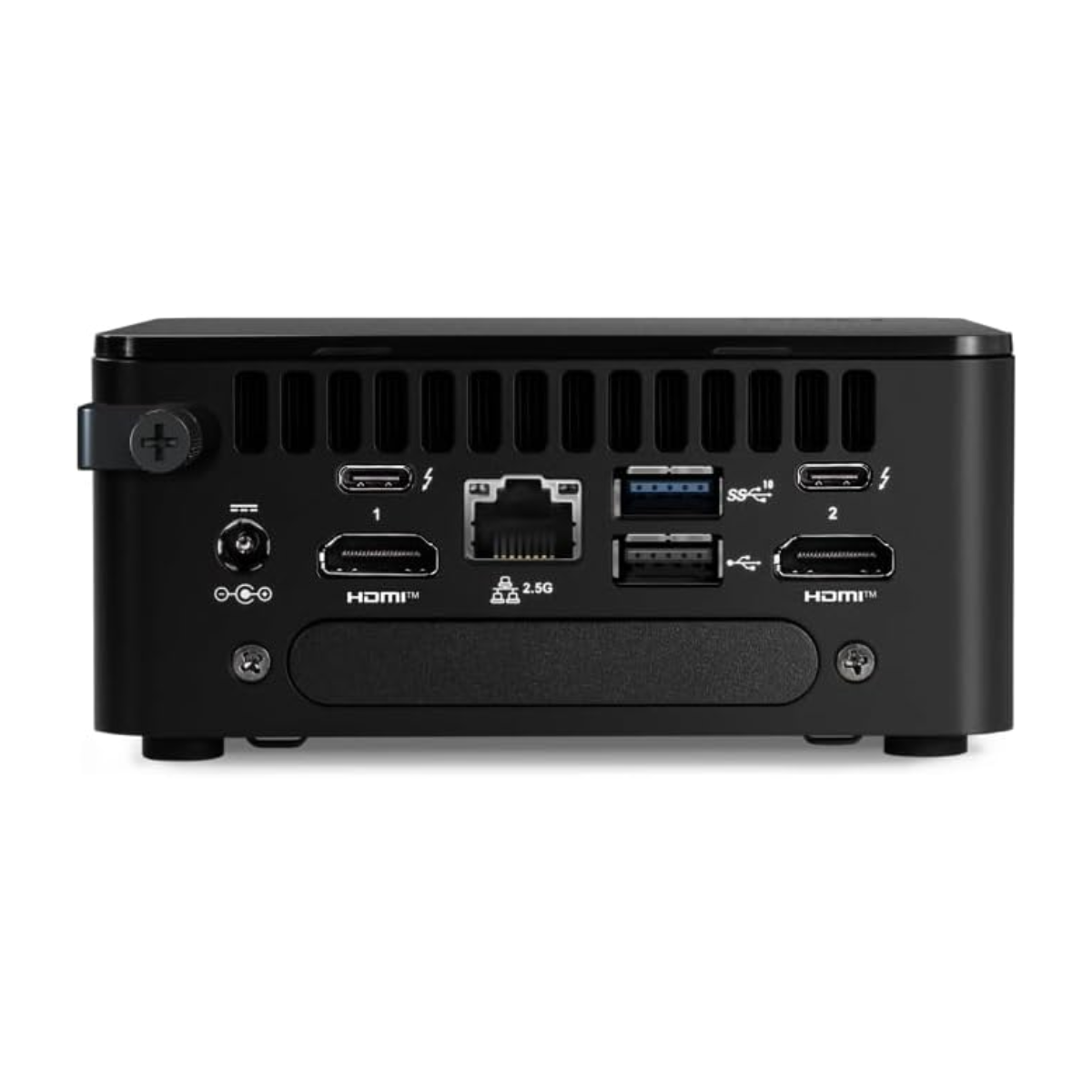

Side I/O:

• 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm

• 2 x Thunderbolt 4 Type-C Ports

• 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)

• 1 x USB 2.0 (5V/0.5A)

• 2 x HDMI 2.1 (Up to 4K@60Hz)

• 1 x 2.5G RJ45 LAN

• 1 x DC-in

Power Adapters:

• 120W Power Adapter (for i5/i7 models)

• 90W Power Adapter (for i3 model)

Chassis Dimensions:

• Tall Chassis: 117 x 112 x 54 mm (0.7L)

• Weight: 750g (barebone)

Compatibility:

• Support for Windows 11*

• Compatible with various Linux distributions
