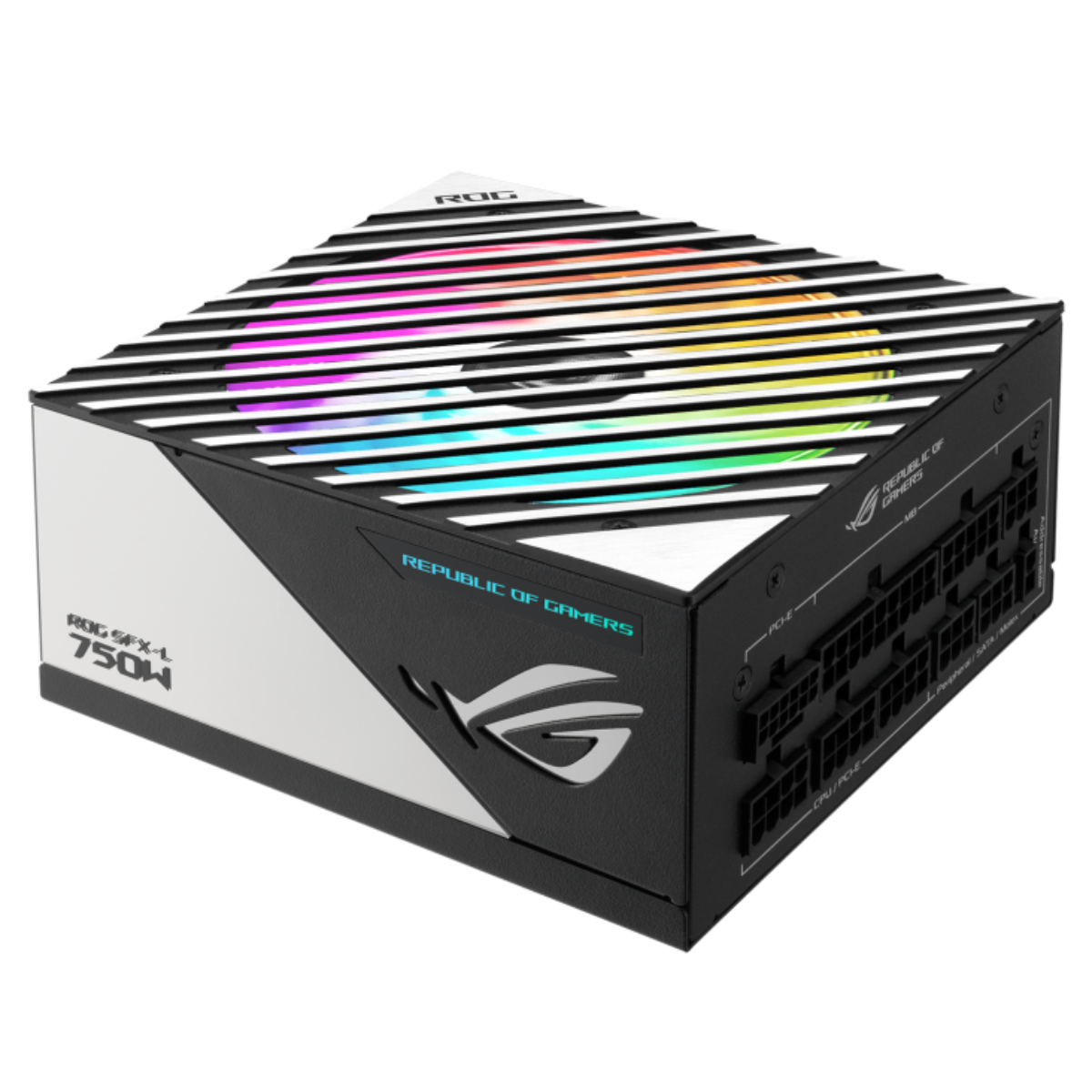

ASUS ROG LOKI SFX-L 750W 80PLUS-PLATINUM

Specifications:

• Form Factor: SFX-L

• PFC Type: Active PFC

• ATX Standard: ATX 3.0

• Dimensions: 125 x 125 x 63.5 mm

• Efficiency: 80Plus Platinum

• MTBF: >120,000 hrs @ 25C

• Protection Features: OPP, OVP, UVP, SCP, OCP, OTP

• Hazardous Materials: ROHS

• AC Input Range: 100-240Vac

• DC Output Voltage:

  • +3.3V: 20A (110W)

  • +5V: 20A (110W)

  • +12V: 62.5A (750W)

  • -12V: 0.8A (9.6W)

  • +5Vsb: 2.5A (12.5W)

• Total Output: 750W

• Cable Connectors

  • MB: 24/20-pin x 1

  • CPU: 4+4-pin x 2

  • PCI-E: 16-pin x 1 (both PSU & component side)

  • PCI-E 8-pin: x 3

  • SATA: x 6

  • Peripheral: x 4

• Package Contents

  • Power Cord x 1

  • Motherboard Power Cable x 1 (450mm)

  • CPU Cable x 2 (550mm)

  • PCI-E Gen 5 16-pin Cable x 1 (450mm)

  • PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)

  • PCI-E 1-to-1 Cable x 1 (450mm)

  • SATA 1-to-3 Cable x 2 (300+200+100mm)

  • Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)

  • Addressable RGB Cable x 1 (800mm)

  • User Manual x 1

  • ATX to SFX adapter bracket x 1

• Additional Features

  • Weight: 1.815 kg (single PSU)

  • AURA SYNC: ARGB

  • Cybenetics Noise Level Certification: A+

  • 0dB Technology: Supported; fan shuts off at certain load

  • 0dB Fan Button: No; operates in 0dB mode by default
