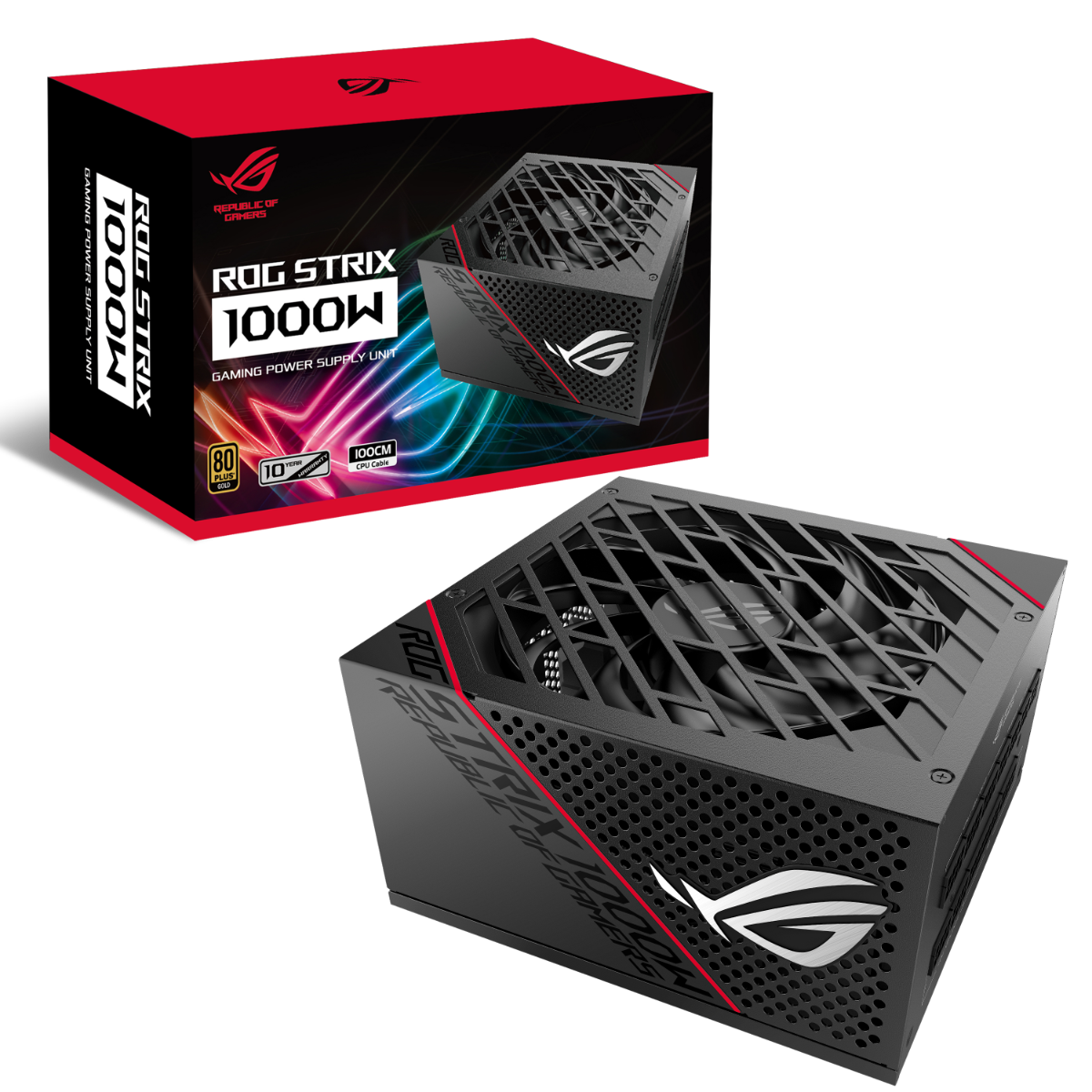

ASUS ROG STRIX 1000W 80PLUS GOLD (MODULAR CABLING)

Specifications:

Model:

• ROG STRIX 1000W Gold (16-pin cable)

Intel Specification:

• ATX12V

Power Factor Correction (PFC):

• Active PFC

Physical Dimensions:

• Size: 16 x 15 x 8.6 cm

Efficiency:

• Certification: 80Plus Gold

MTBF (Mean Time Between Failures):

• >120,000 hours @ 25C

Protection Features:

• OPP (Over Power Protection)

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• SCP (Short Circuit Protection)

• OCP (Over Current Protection)

• OTP (Over Temperature Protection)

Hazardous Materials:

• ROHS Compliant

AC Input Range:

• 100-240Vac

DC Output Voltage & Load:

• +3.3V: 25A (125W)

• +5V: 25A (125W)

• +12V: 83A (996W)

• -12V: 0.3A (3.6W)

• +5Vsb: 3A (15W)

Total Output Power:

• 1000W

Cable Connectors:

• Motherboard Power: 24/20-pin x1

• CPU Power: 4+4-pin x2

• PCI-E:

  • 16-pin Cable x1 (component side)

  • 6+2-pin Cables x3

• SATA Power: x8

• Peripheral Power: x4

Included Cables:

• Power Cord: x1

• Motherboard Power Cable: 1 x 610mm

• CPU Cables: 2 x 1000mm

• PCI-E Gen 5 Cable (8-pin-8-pin-to-16-pin): 1 x 675mm

• PCI-E 1-to-1 Cable: 3 x 675mm

• SATA 1-to-4 Cable: 2 x (450+120+120+120mm)

• Peripheral 1-to-4 Cable: 1 x (450+120+120+120mm)

Additional Accessories:

• ROG Badges: x2

• ROG Logo Magnet: x1

• ROG Labels: x3

• Chassis Screws Package: x1

• User Manual: x1

Weight:

• 1.88 kg (Single PSU)

Cybenetics Noise Level Certification:

• N/A

0dB Fan Technology:

• Supported: Fan shuts off completely when PSU is under certain load
