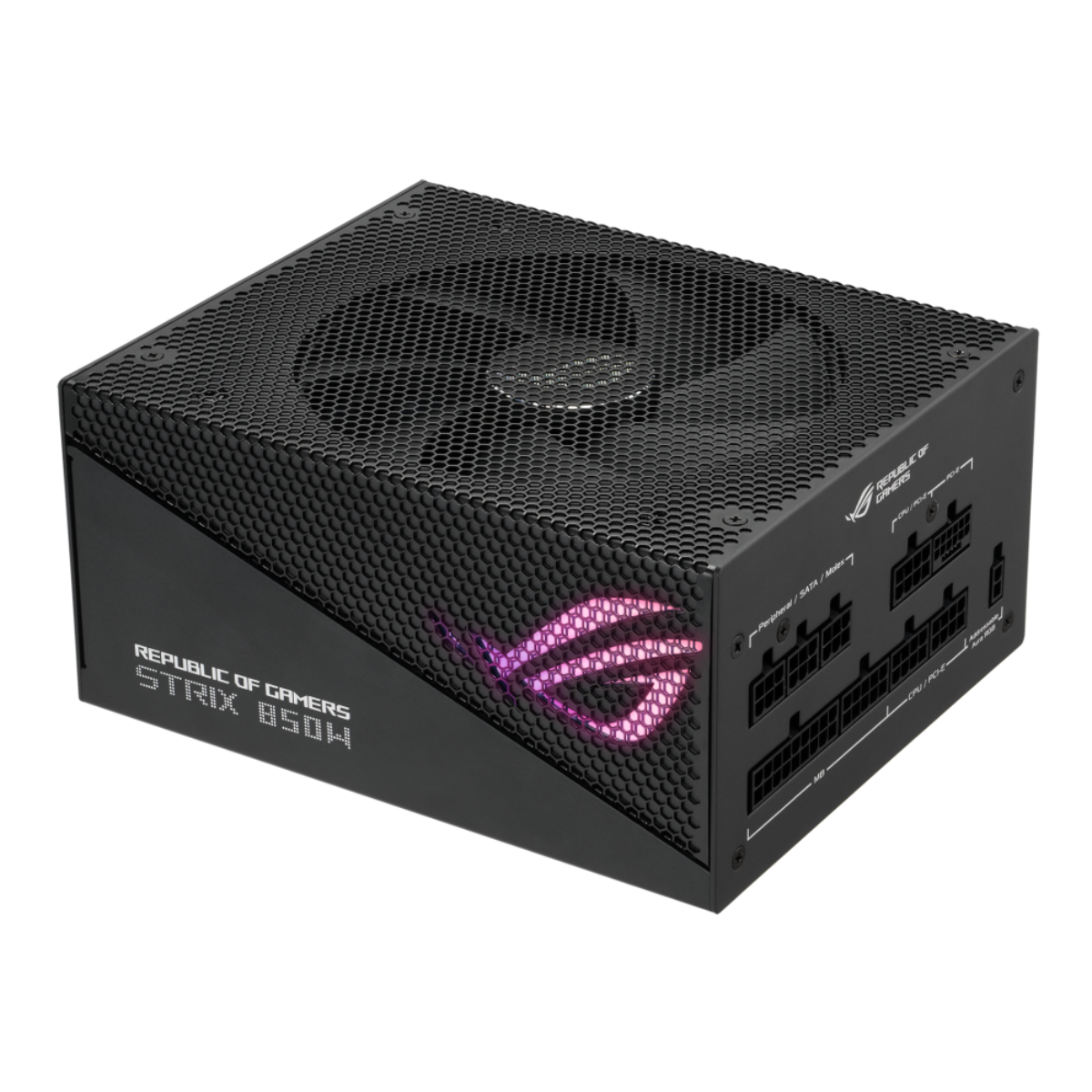

ASUS ROG STRIX 850W 80PLUS GOLD (MODULAR CABLING) AURA EDITION

Specifications:

• Intel Form Factor: ATX12V

• PFC Type: Active PFC

• ATX Standard: ATX 3.0

• Dimensions: 180 x 150 x 86 mm

• Efficiency: 80Plus Gold

• MTBF: >120,000 hrs @ 25C

• Protection Features: OPP, OVP, UVP, SCP, OCP, OTP

• Hazardous Materials: ROHS compliant

• AC Input Range: 100-240Vac

• DC Output Voltage:

  • +3.3V: 22A (Max Load: 120W)

  • +5V: 22A (Max Load: 120W)

  • +12V: 70.8A (Max Load: 849.6W)

  • -12V: 0.3A (Max Load: 3.6W)

  • +5Vsb: 3A (Max Load: 15W)

• Total Output: 850W

• Cable Connectors:

  • MB 24/20-pin: x1

  • CPU 4+4-pin: x2

  • PCI-E 16-pin: x1 (both PSU & component side)

  • PCI-E 8-pin: x3

  • SATA: x5

  • Peripheral: x4

• Package Contents:

  • Power Cord: x1

  • Motherboard Power Cable (600mm): x1

  • CPU Cable (650mm): x2

  • PCI-E Gen 5 16-pin Cable (675mm): x1

  • PCI-E 1-to-1 Cable (675mm): x1

  • PCI-E 16-pin to 8-pin-8-pin Cable (675mm): x1

  • SATA 1-to-2 Cable (400+120mm): x1

  • SATA 1-to-3 Cable (400+120+120mm): x1

  • Peripheral 1-to-4 Cable (400+150+150+150mm): x1

  • Addressable RGB Cable (800mm): x1

  • User Manual: x1

• Weight: 2.728 kg (single PSU)

• AURA SYNC: ARGB support

• Cybenetics Noise Level Certification: A++

• 0dB Technology: Supported; fan shuts off at low load

• 0dB Fan Button: Yes (controls fan operation based on load)
