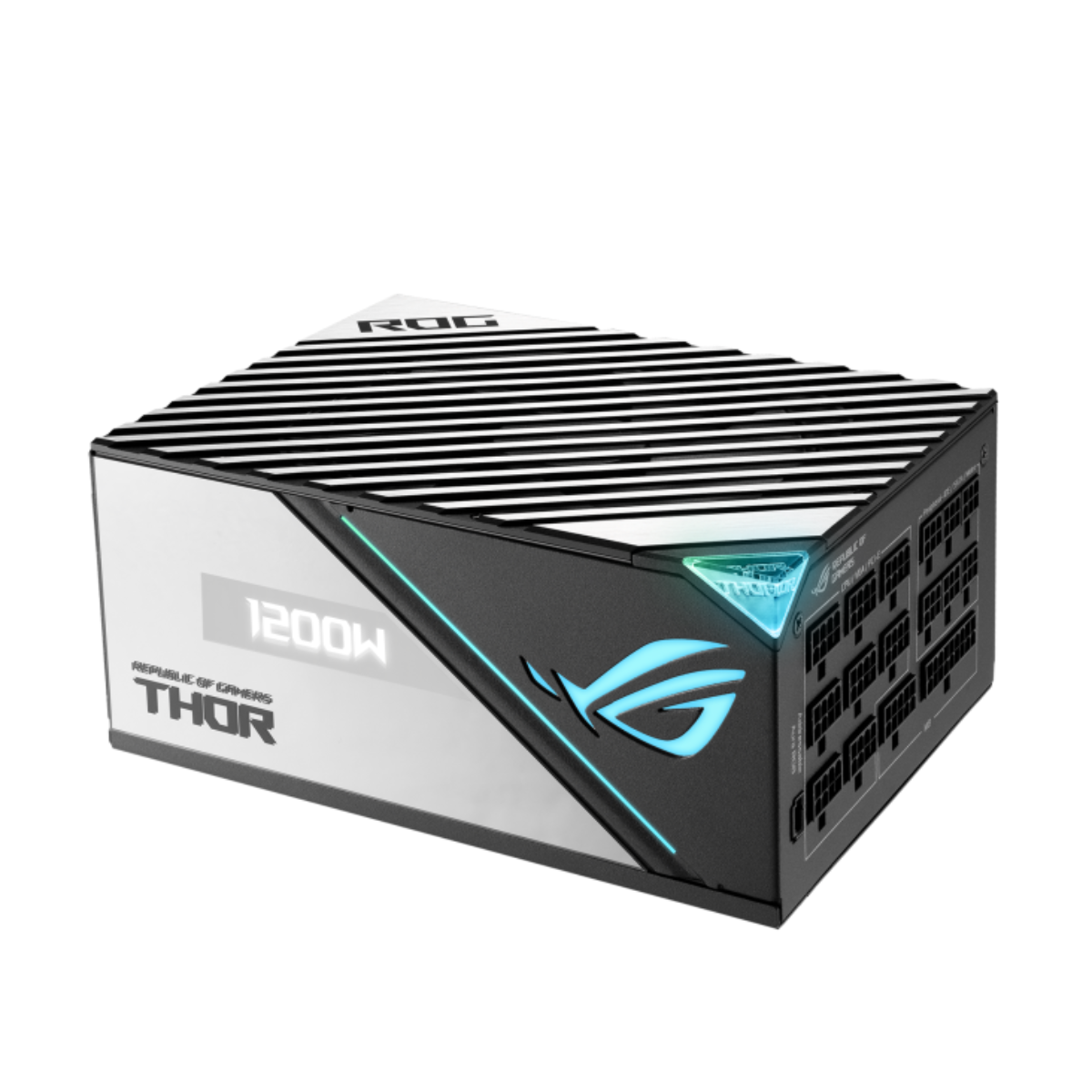

ASUS ROG THOR 1200P2 1200W 80PLUS-PLATINUM

Specifications:

• Intel Form Factor: ATX12V

• PFC Type: Active PFC

• ATX Standard: ATX 3.0

• Dimensions: 190 x 150 x 86 mm

• Efficiency: 80 PLUS Platinum

• MTBF: >120,000 hrs @ 25C

• Protection Features: OPP, OVP, UVP, SCP, OCP, OTP

• Hazardous Materials: ROHS

• AC Input Range: 100-240 Vac

• DC Output Voltage: +3.3V, +5V, +12V, -12V, +5Vsb

• Maximum Load:

  • +3.3V: 25A

  • +5V: 25A

  • +12V: 100A

  • -12V: 0.3A

  • +5Vsb: 3A

• Combined Load:

  • +3.3V: 125W

  • +5V: 125W

  • +12V: 1200W

  • -12V: 3.6W

  • +5Vsb: 15W

• Total Output: 1200W

• Cable Connectors:

  • MB 24/20-pin x 1

  • CPU 4+4-pin x 2

  • PCI-E 16-pin x 1 (component side)

  • PCI-E 6+2-pin x 8

  • SATA x 12

  • Peripheral x 6

• Package Contents:

  • Power Cord x 1

  • Motherboard Power Cable x 1 (610mm)

  • CPU Cable x 2 (650mm)

  • PCI-E 16-pin Cable x 1 (675mm)

  • PCI-E 1-to-1 Cable x 4 (675mm)

  • PCI-E 1-to-2 Cable x 2 (675+75mm)

  • SATA 1-to-4 Cable x 3 (400+120+120+120mm)

  • Peripheral 1-to-3 Cable x 2 (450+120+120mm)

  • Addressable RGB Cable x 1 (800mm)

  • ROG sticker x 1

  • ROG cable ties x 6

  • Sleeved Cable Combs (6-pin) x 4

  • Sleeved Cable Combs (8-pin) x 10

  • Sleeved Cable Combs (24-pin) x 2

  • Chassis Screws Package x 1

  • Cable Tie x 12

  • User Manual x 1

• Weight: 2.37 kg

• AURA SYNC: Yes (ARGB)

• Cybenetics Noise Level Certification: A++

• 0dB Technology: Supported

• 0dB Fan Button: Yes (ON: fan only spins at certain load, OFF: fan continuously spins)
