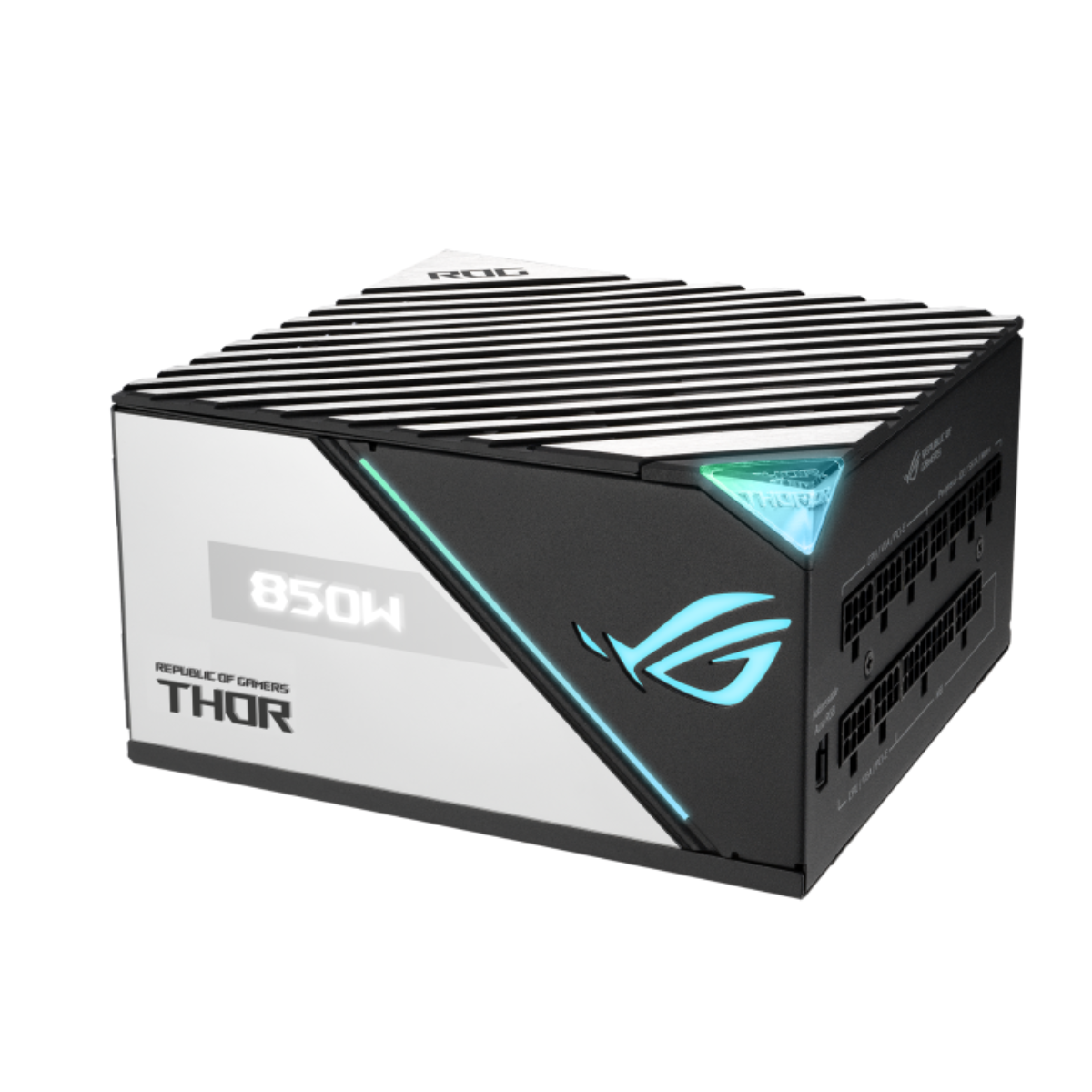

ASUS ROG THOR 850P2 GAMING 850W 80PLUS-PLATINUM

Specifications:

• Intel Form Factor: ATX12V

• PFC Type: Active PFC

• Dimensions: 160 x 150 x 86 mm

• Efficiency: 80 PLUS Platinum

• MTBF: >120,000 hrs @ 25C

• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials: ROHS

• AC Input Range: 100-240Vac

• DC Output Voltage:

  • +3.3V: 20A

  • +5V: 20A

  • +12V: 71A

  • -12V: 0.3A

  • +5Vsb: 3A

• Combined Load:

  • +3.3V: 100W

  • +5V: 100W

  • +12V: 852W

  • -12V: 3.6W

  • +5Vsb: 15W

• Total Output: 850W

• Cable Connectors:

  • Motherboard: 24/20-pin x 1

  • CPU: 4+4-pin x 2

  • PCI-E: 16-pin x 1 (component side), 6+2-pin x 3

  • SATA: x 10

  • Peripheral: x 6

• Package Contents:

  • Power Cord x 1

• Motherboard Power Cable x 1 (610mm)

  • CPU Cable x 2 (650mm)

  • PCI-E Cable 16-pin x 1 (675mm)

  • PCI-E 1-to-1 Cable x 3 (675mm)

  • PCI-E 1-to-2 Cable x 2 (675+75mm)

  • SATA 1-to-2 Cable x 1 (400+120mm)

  • SATA 1-to-4 Cable x 2 (400+120+120+120mm)

  • Peripheral 1-to-3 Cable x 2 (450+120+120mm)

  • Addressable RGB Cable x 1 (800mm)

  • ROG Sticker x 1

  • ROG Cable Tie x 4

  • Sleeved Cable Combs (6-pin) x 2

  • Sleeved Cable Combs (8-pin) x 6

  • Sleeved Cable Combs (24-pin) x 2

  • Chassis Screws Package x 1

  • Cable Tie x 10

  • User Manual x 1

• Additional Features:

  • Weight: 1.865 kg (single)

  • AURA SYNC: ARGB

  • Cybenetics Noise Level Certification: A++

  • 0dB Technology: Supported

  • 0dB Fan Button: Yes (Fan operates in 0dB mode by default, spins up only under certain load)
