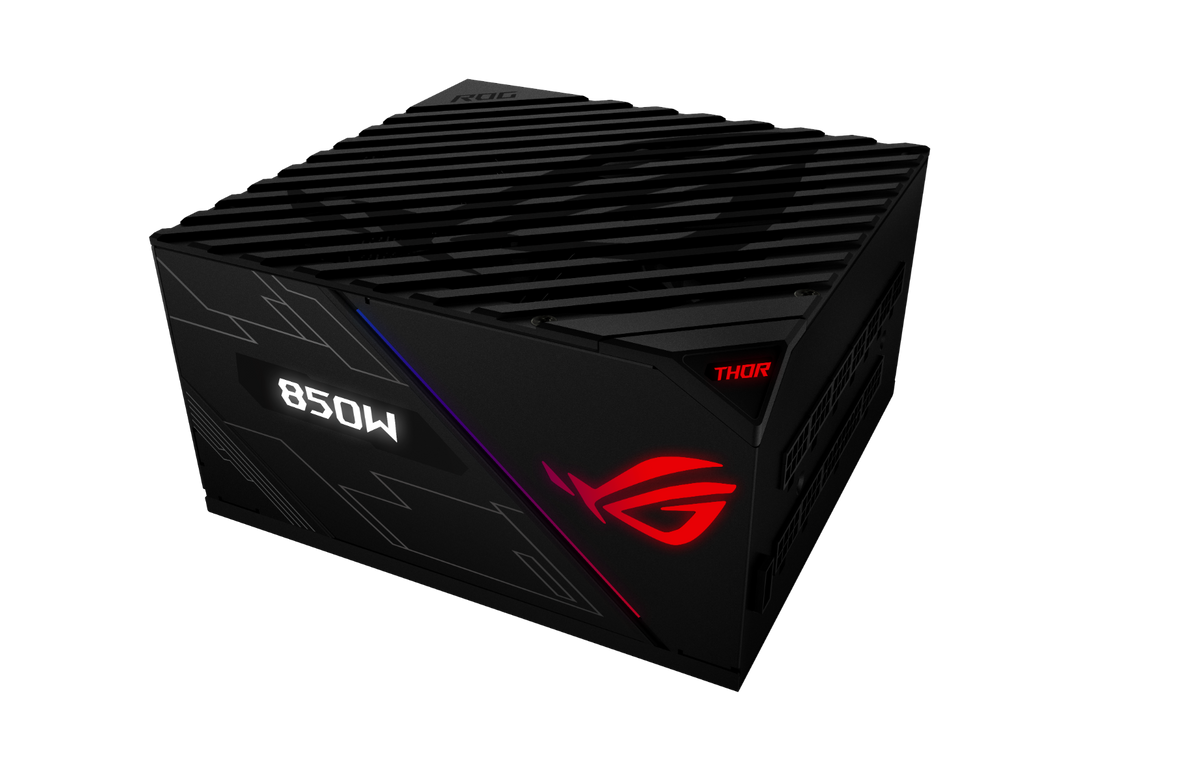

ASUS ROG THOR 850W 80PLUS-PLATINUM

Specifications:

Model:

• ROG-THOR-850P

Intel Specification:

• ATX12V

Power Factor Correction (PFC):

• Active PFC

Physical Dimensions:

• Size: 16 x 15 x 8.6 cm

Efficiency:

• Certification: 80Plus Platinum

  • Efficiency at AC 115V 60Hz:

    • 20% Load: 90%

    • 50% Load: 92%

    • 100% Load: 89%

  • Efficiency at AC 230V 50Hz:

    • 20% Load: 90%

    • 50% Load: 92%

    • 100% Load: 89%

MTBF (Mean Time Between Failures):

• >120,000 hours @ 25C

Protection Features:

• OPP (Over Power Protection)

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• SCP (Short Circuit Protection)

• OCP (Over Current Protection)

• OTP (Over Temperature Protection)

Hazardous Materials:

• ROHS Compliant

AC Input Range:

• 100-240Vac

RGB Connector:

• Aura Sync (ARGB)

DC Output Voltage & Load:

• +3.3V: 20A (100W)

• +5V: 20A (100W)

• +12V: 71A (852W)

• -12V: 0.3A (3.6W)

• +5Vsb: 3A (15W)

Total Output Power:

• 850W

Cable Connectors:

• Motherboard Power: 24/20-pin x1

• CPU Power: 8/4-pin x2

• PCI-E Power:

  • 8/6-pin x4

• SATA Power: x12

• Peripheral Power: x5 (4-pin)

• Floppy Power: x1

Included Cables:

• Power Cable: x1

• Motherboard Power Cable: x1 (610mm)

• CPU Cables: x2 (650mm)

• PCI-E 1-to-1 Cable: x2 (675mm)

• PCI-E 1-to-2 Cable: x1 (675+75mm)

• SATA 1-to-2 Cable: x1 (400+120mm)

• SATA 1-to-4 Cable: x2 (400+120+120+120mm)

• Peripheral 1-to-2 Cable: x1 (350+120mm)

• Peripheral 1-to-3 Cable: x1 (450+120+120mm)

• Floppy Cable: x1 (101mm)

• Addressable RGB Cable: x2 (800mm)

Additional Accessories:

• ROG Sticker: x1

• ROG Cable Tie: x4

• Sleeved Cable Combs:

  • 6-pin x2

  • 8-pin x6

  • 24-pin x2

• Chassis Screws Package: x1

• Cable Tie: x10

• User Manual: x1

AURA SYNC:

• ARGB Support

Cybenetics Noise Level Certification:

• A+

0dB Fan Technology:

• Supported: The fan shuts off completely when PSU is under certain load
