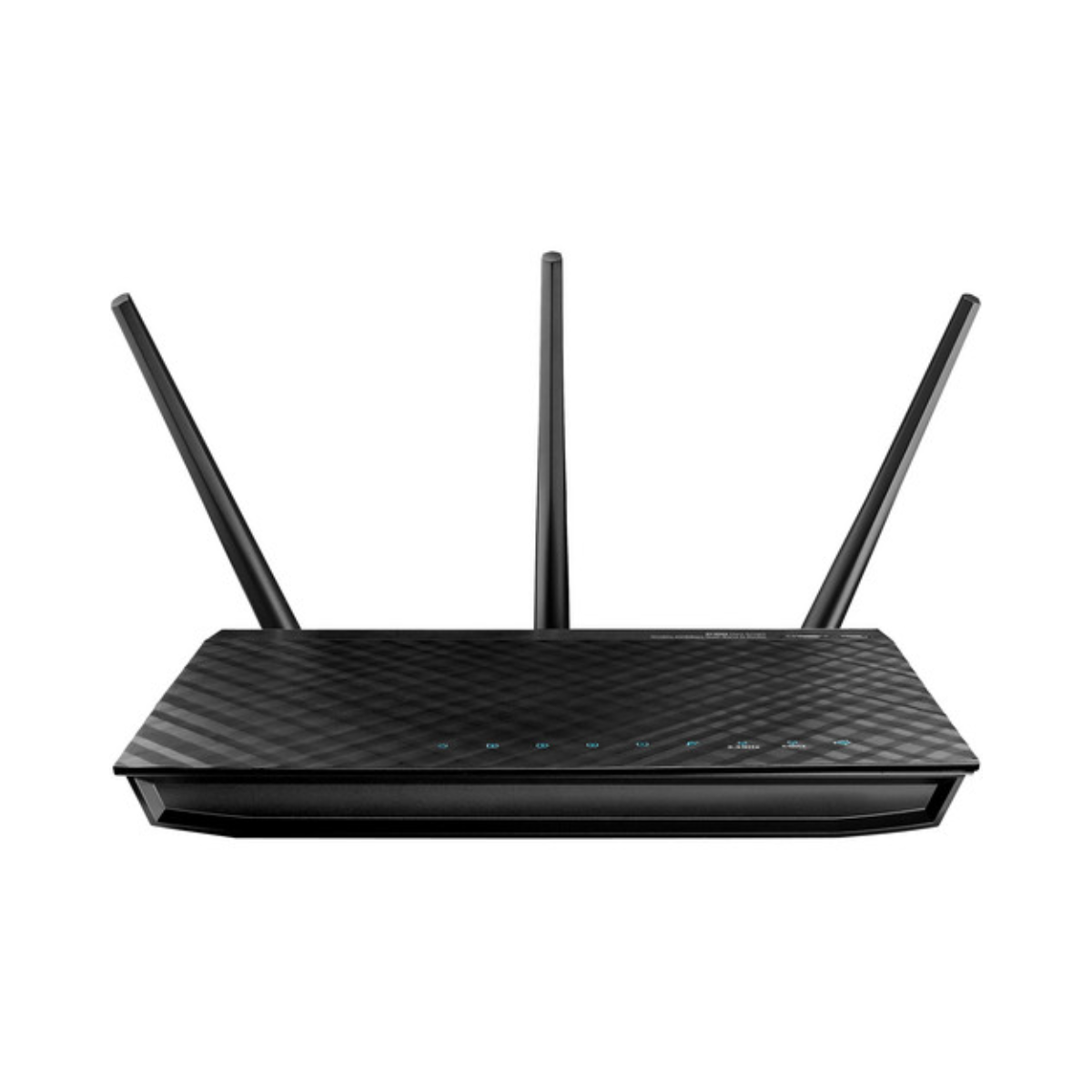

ASUS RT-N66U WIRELESS DUAL BAND ROUTER

Specifications:

• Base Station Standards:

  • IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6

• Data Rate:

  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • 802.11b: 1, 2, 5.5, 11 Mbps

  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • 802.11n: Up to 450 Mbps

• Frequency Range:

  • 2.4-2.48 GHz / 5.1-5.8 GHz

• Security:

  • 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-enterprise, WPA2-enterprise, WPS support

  • Firewall: SPI intrusion detection, DoS protection

  • Access Control: Parental control, network service filter, URL filter, port filter

• Antenna:

  • Detachable antennas x 3

• Management:

  • UPnP, DLNA, DNS proxy, DHCP, NTP client, DDNS, port trigger, virtual server, DMZ

• VPN Support:

  • IPSec pass-through, PPTP pass-through, L2TP pass-through

• WAN:

  • Internet connection types: Automatic IP, static IP, PPPoE (MPPE supported), PPTP, L2TP

  • Dual link support, multicast proxy support

• Utilities:

  • Download Master (supports BT, NZB, HTTP, ED2K)

  • Media server support: JPEG, mp3, wma, wav, mp4, ogg, asf, avi, mpeg, mkv

  • QoS: WMM, user-definable rules for IP/MAC/Port

• Guest Network:

  • 2.4 GHz guest network x 3, 5 GHz guest network x 3

• Printer Server:

  • Multifunctional printer support (Windows only), LPR protocol support

• File Server:

  • Samba and FTP server with account management

• Network Map & Traffic Monitor:

  • Yes

• General Ports:

  • 4 x RJ-45 for LAN (10/100/1000 Mbps)

  • 1 x RJ-45 for WAN (10/100/1000 Mbps)

  • USB 2.0 x 2

• Buttons:

  • WPS button, reset button, power button

• LED Indicators:

  • LAN x 4, WAN x 1, AIR x 2, USB x 1

• Power Supply:

  • AC input: 110-240V (50/60Hz)

  • DC output: 19V with max. 1.58A current

• Dimensions:

  • 8.1 x 5.9 x 1.4 inches (207 x 148.8 x 35.5 mm)

• Weight:

  • 15.9 oz. (450 g)

• Packaging Info:

  • Package Weight: 3 lb

  • Box Dimensions (LxWxH): 12 x 9.2 x 3.4 inches
