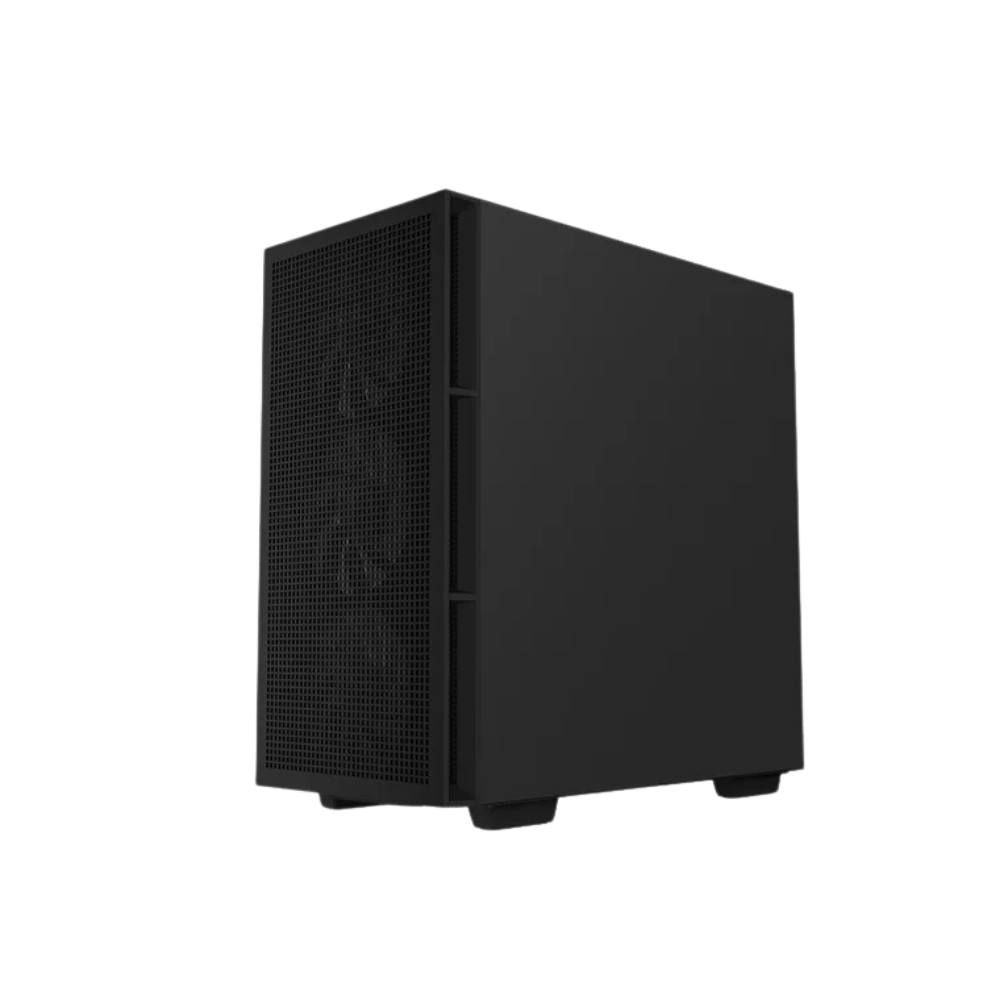

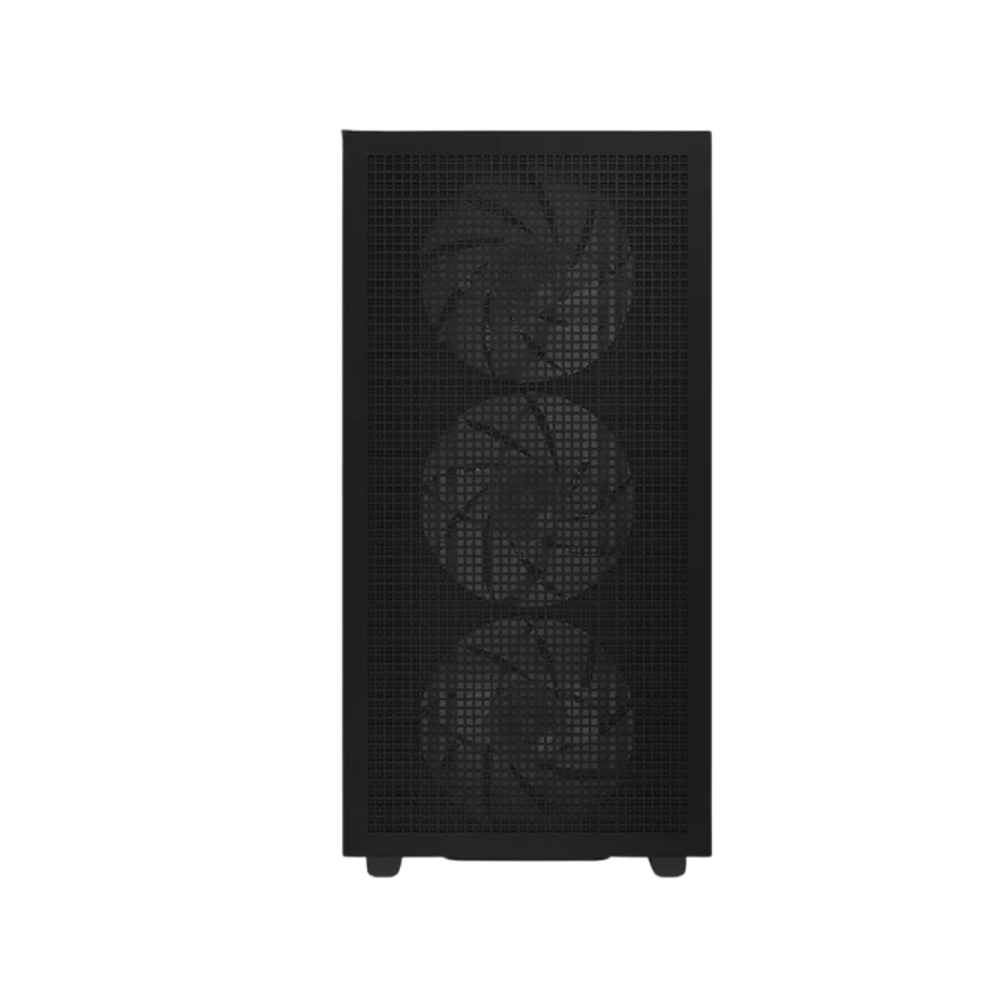

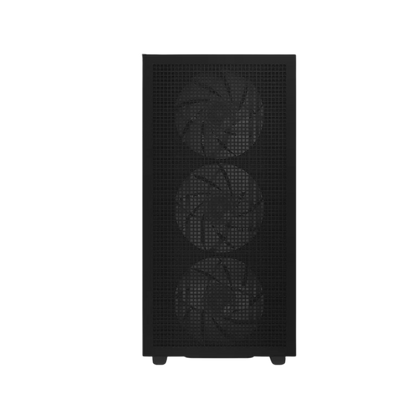

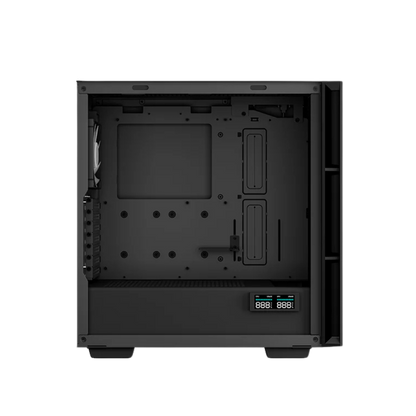

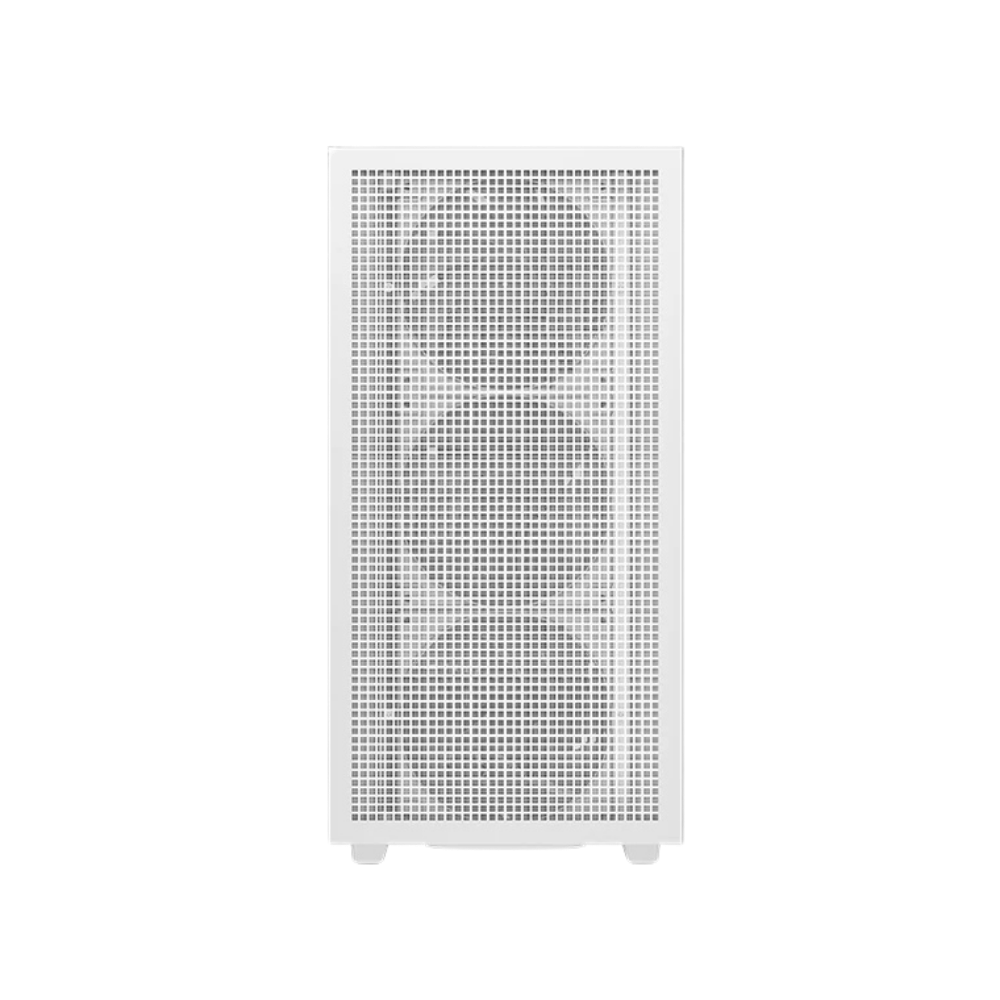

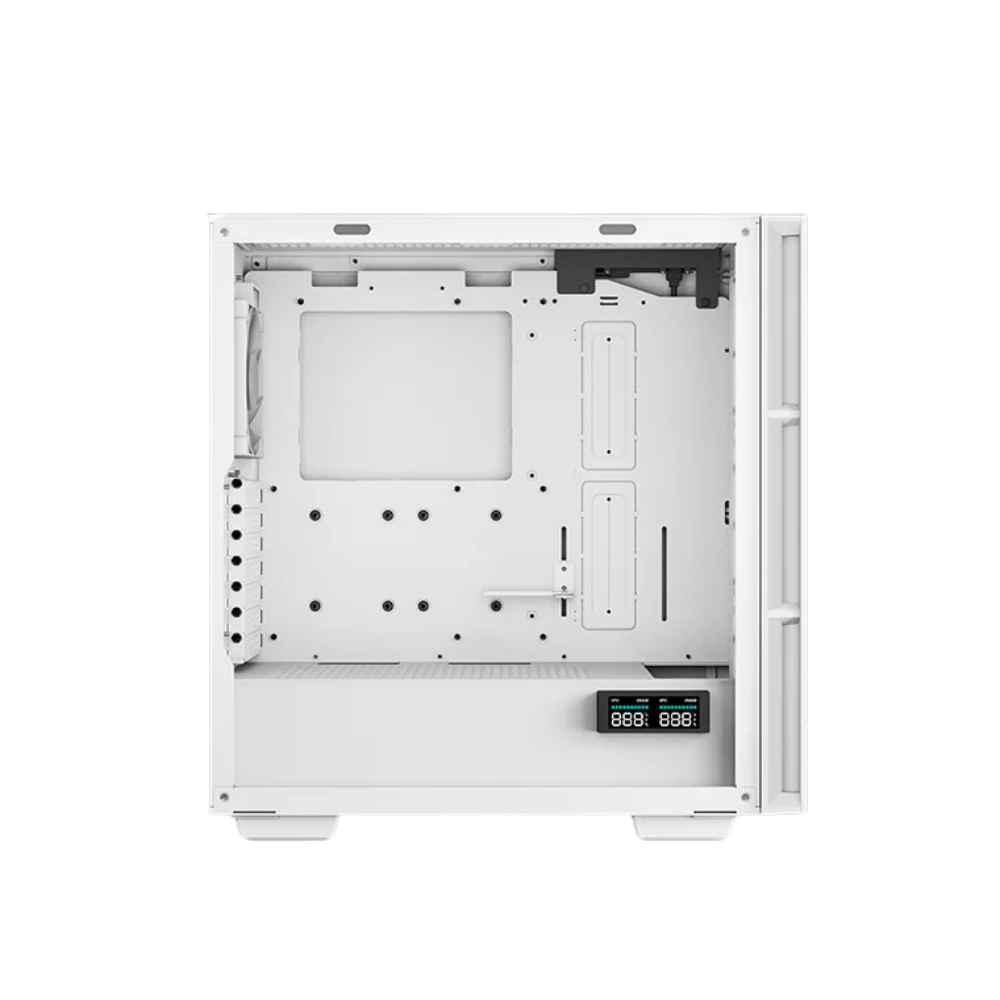

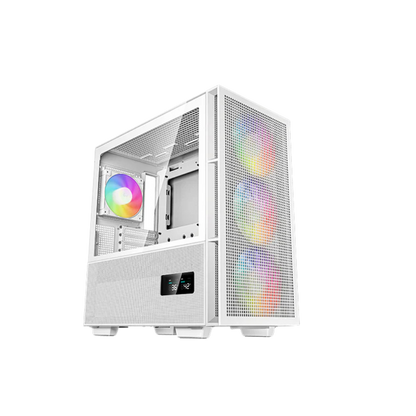

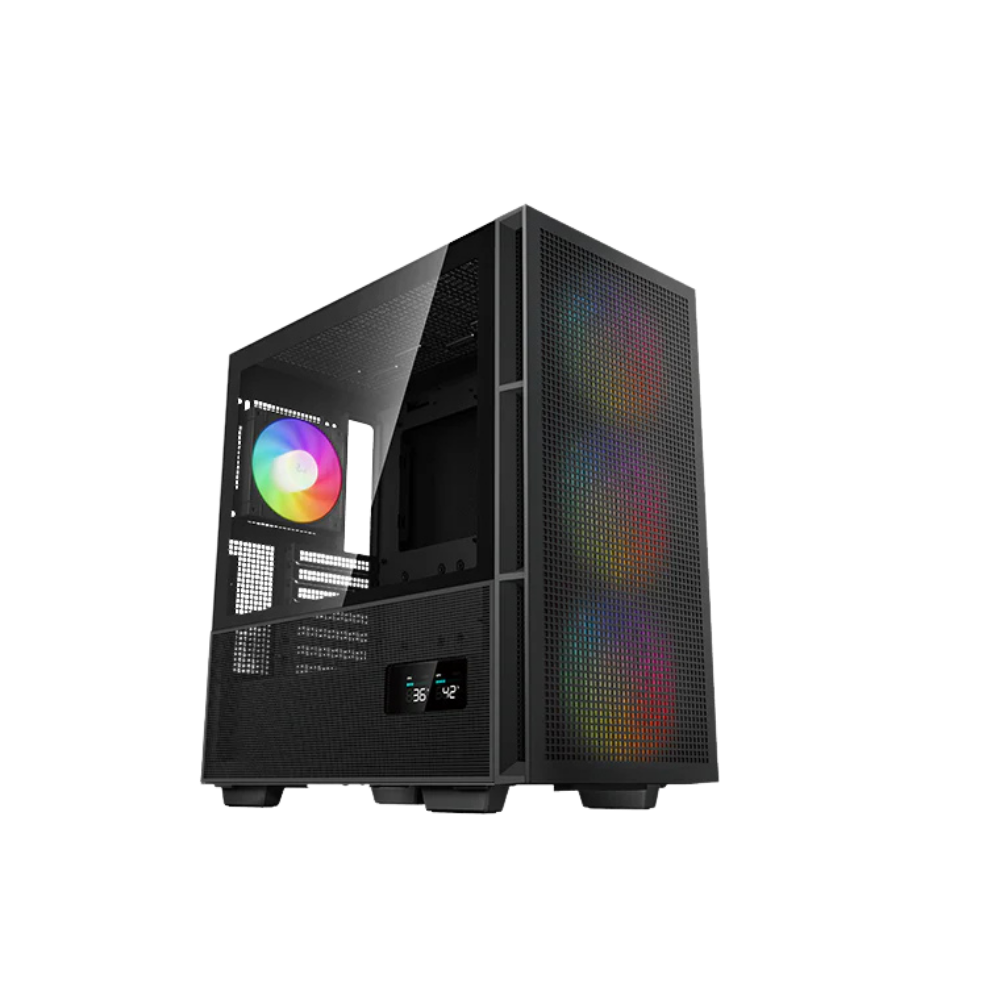

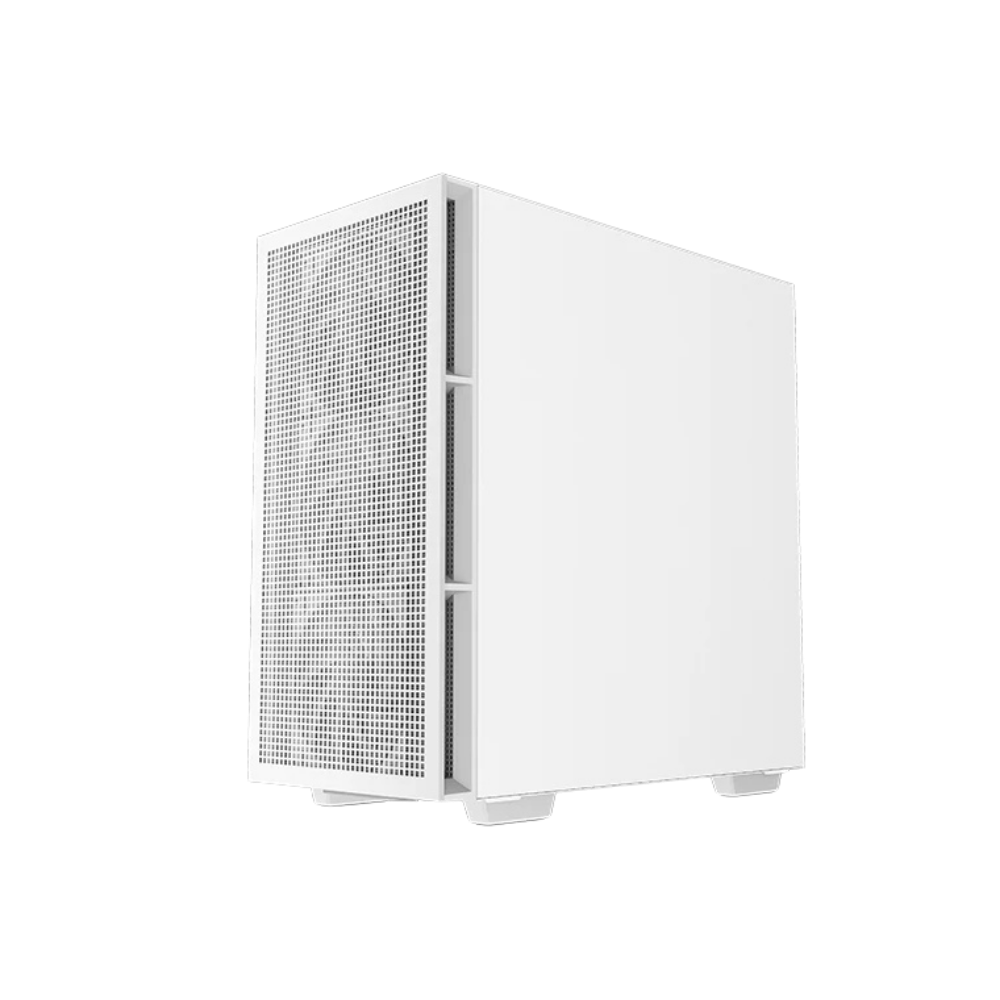

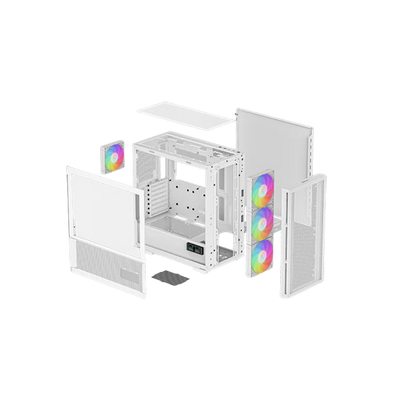

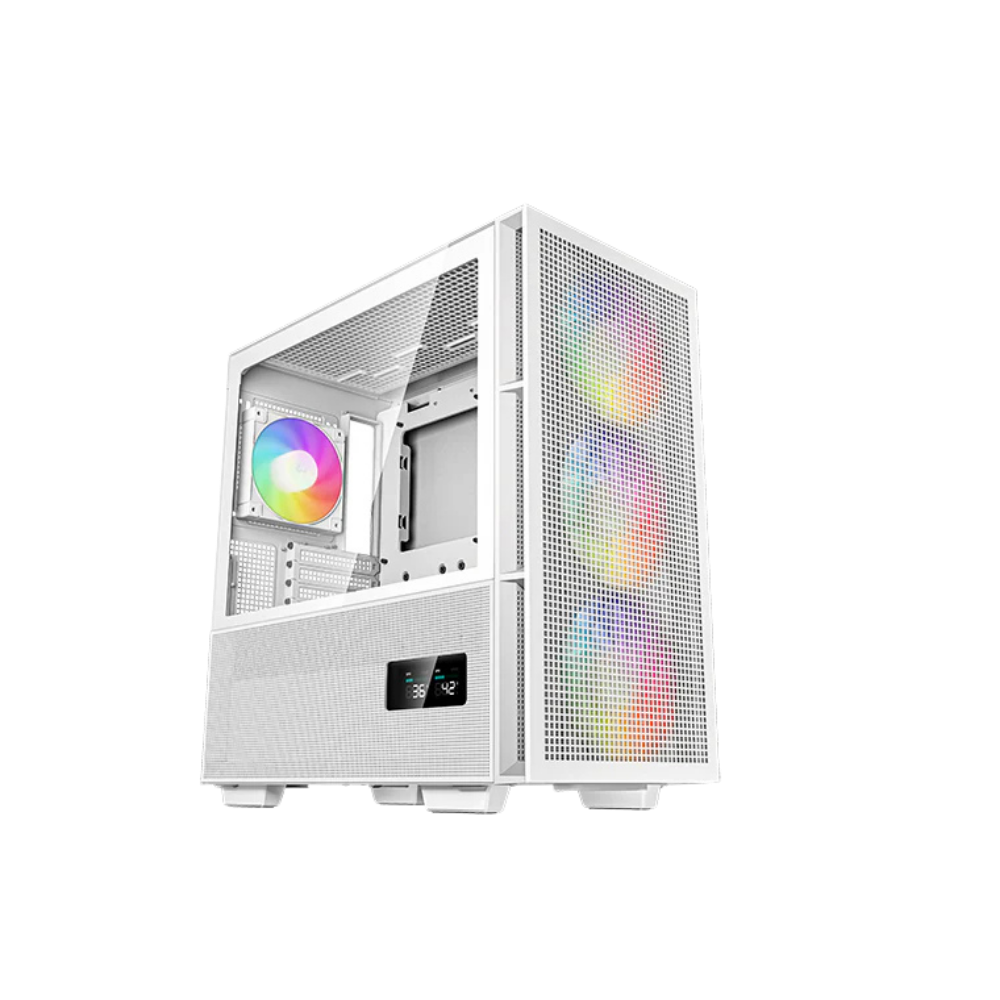

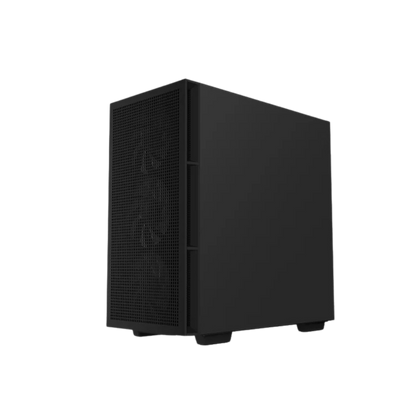

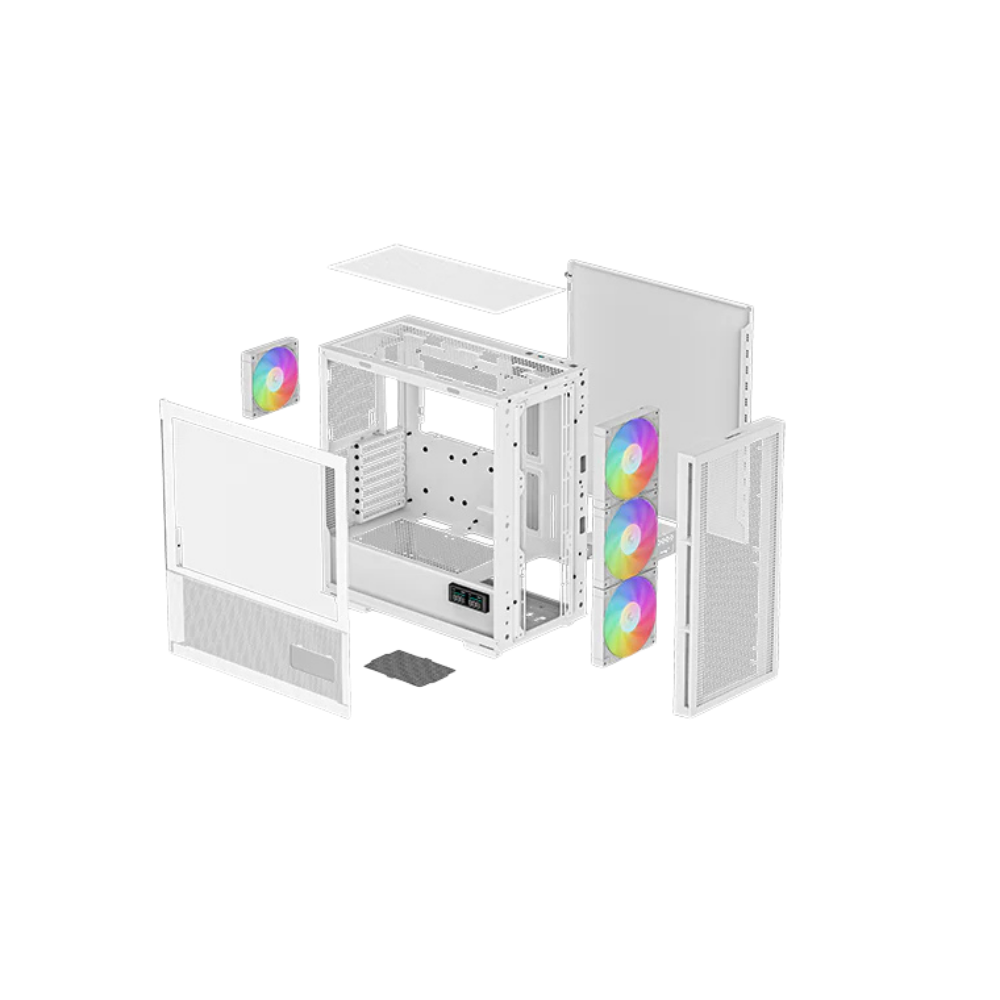

DEEPCOOL CH560 E-ATX CASE

Specifications:

Product Dimensions:

• Length: 458 mm
• Width: 230 mm
• Height: 471 mm

Net Weight:

• 7.5 kg

Materials:

• ABS
• SPCC (Steel)
• Tempered Glass

Motherboard Support:

• Mini-ITX
• Micro-ATX
• ATX
• E-ATX

Front I/O Ports:

• 1 x USB 3.0
• 1 x Type-C
• 1 x Audio

Drive Bays:

• 3.5" Drive Bays: 2
• 2.5" Drive Bays: 2+1

Expansion Slots:

• 7 Slots

Pre-Installed Fans:

• Front: 3 x 140mm ARGB
• Rear: 1 x 120mm ARGB

Fan Support:

• Front: 3 x 120mm or 3 x 140mm
• Top: 3 x 120mm or 2 x 140mm
• Rear: 1 x 120mm or 1 x 140mm
• PSU Shroud: 2 x 120mm

Radiator Support:

• Front: 120/140/240/280/360mm
• Top: 120/140/240/280/360mm
• Rear: 120/140mm

CPU Cooler Height Limit:

• 175 mm

GPU Length Limit:

• 380 mm

Power Supply Type:

• ATX PS2 (maximum length: 170 mm)

EAN:

• 6933412774891

P/N:

• R-CH560-BKAPE4-G-1
