Description

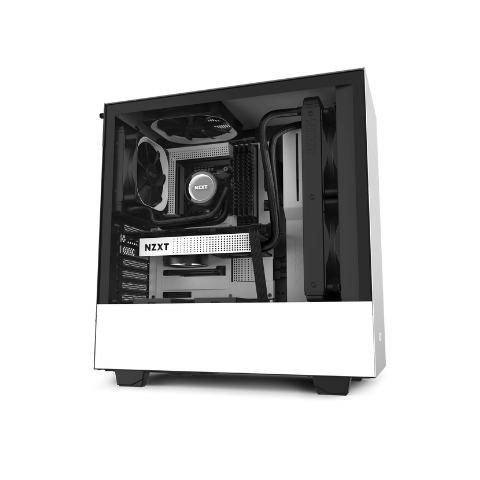

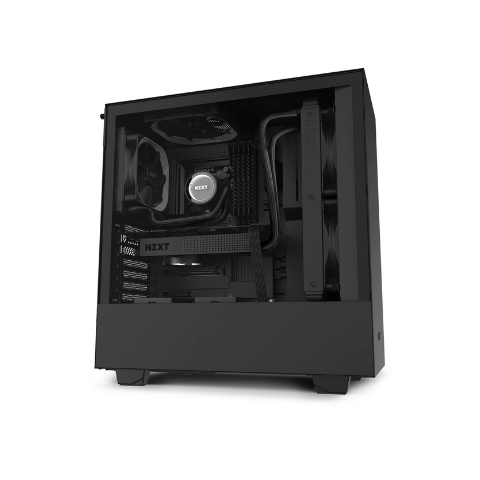

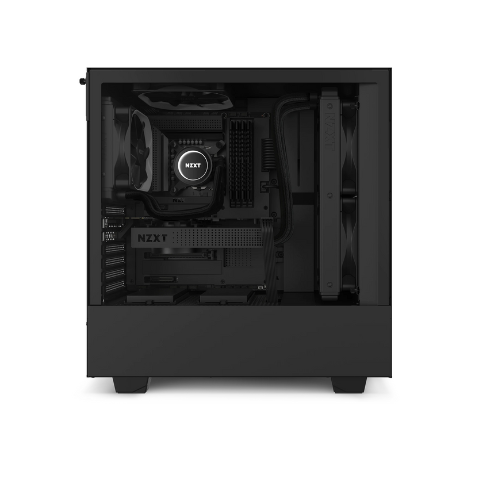

The NZXT H510B is a compact mid-tower PC case designed for clean and practical desktop builds. It features a minimalist exterior, a tempered glass side panel, and an organized cable management system. Supporting ATX motherboards and multiple storage configurations, it provides a versatile enclosure for gaming, home, and office computers.
Specifications
- Brand: NZXT
- Model: H510B
- Product Type: Mid-Tower PC Case
- Available Colours: Black and White
- Motherboard Compatibility: ATX, Micro-ATX, Mini-ITX
- Side Panel: Tempered glass
- Front Panel: Solid steel
-
Front I/O Ports:
- 1 × USB 3.1 Gen 2 Type-C
- 1 × USB 3.1 Gen 1 Type-A
- 1 × Headset audio jack
- Expansion Slots: 7
-
Drive Bays:
- 2 × 3.5-inch drive trays
- 2 × 2.5-inch drive mounts
-
Pre-installed Fans:
- Front: 1 × 120 mm Aer F120 fan
- Rear: 1 × 120 mm Aer F120 fan
-
Fan Support:
- Front: Up to 2 × 120 mm or 2 × 140 mm fans
- Top: 1 × 120 mm or 1 × 140 mm fan
- Rear: 1 × 120 mm fan
-
Radiator Support:
- Front: Up to 280 mm
- Rear: Up to 120 mm
- Maximum CPU Cooler Height: 165 mm
- Maximum Graphics Card Length: 381 mm
- Maximum Power Supply Length: 180 mm
- Cable Management: Integrated cable routing channels and straps
- Dust Filters: Removable front and bottom filters
