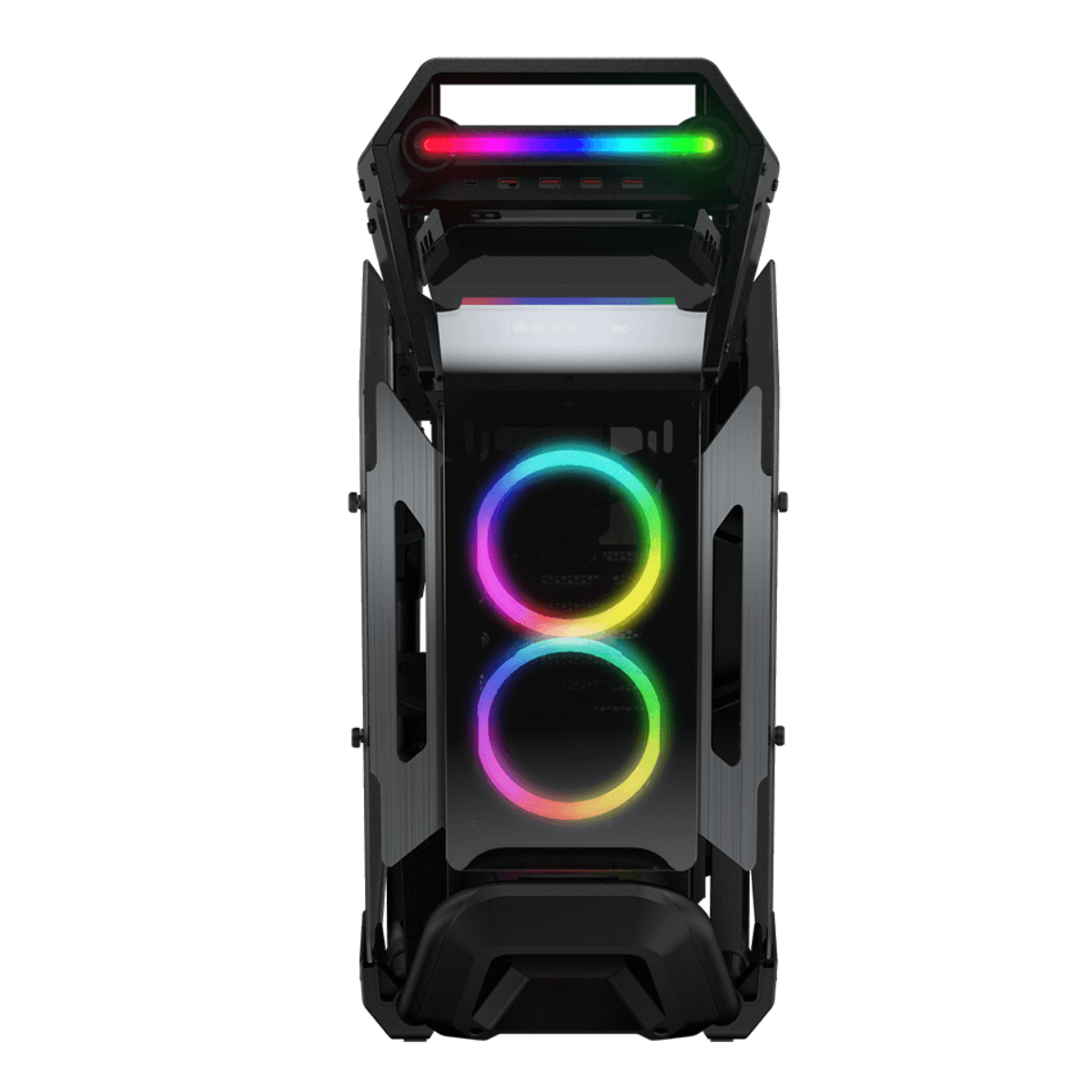

COUGAR CRATUS MID TOWER CASE

Specifications:

• Product Name: Cratus

• Model No.: CGR-5LMSB

• Case Form Factor: Mid Tower

• Motherboard Type: Mini ITX / Micro ATX / ATX / CEB / E-ATX

• Dimensions (WxHxD): 283 x 636 x 635 mm / 11.1 x 25 x 25 inches

• I/O Panel:

  • Type C Gen 2 (Key A 20-pin connector) x 1

  • USB 3.0 x 4

  • 4 Pole Headset Audio Jack x 1

  • RGB Button

• 3.5" Drive Bay: 2

• 2.5" Drive Bay: 3 + 2 (converted from 3.5" drive bays) / (3 SSD trays included)

• Expansion Slots: Horizontal: 7 / Vertical: 4 (with vertical bracket)

• Vertical GPU Support: Yes

• Cooling Fan Support:

  • Front: 120mm x 2 / 140mm x 2

  • Top: 120mm x 3 / 140mm x 2

  • M/B Side: 120mm x 3

  • Rear: 120mm x 1

• Pre-installed Fans:

  • Front: 120mm ARGB fan x 2

  • Rear: 120mm ARGB fan x 1

• Fan Speed: 1000 ± 100 RPM

• Fan Connector: 5V 3 Pin (ARGB) / 3 Pin (Fan)

• Maximum Number of Fans: 9 max.

• Water Cooling Support:

  • Front: 280mm / 240mm / 140mm / 120mm

  • Top: 360mm / 280mm / 240mm / 140mm / 120mm

  • M/B Side: 360mm / 240mm / 120mm

• Transparent Panel: Tempered Glass x 4

• Onboard Lighting System: Yes

• RGB Sync with M/B: Yes

• Max. Graphics Card Length: 460 mm / 18.1 inches (without fans and radiator at M/B side), 325 mm / 12.8 inches (with fans and radiator at M/B side)

• Max. CPU Cooler Height: 190 mm / 7.5 inches

• Max. PSU Length: 200 mm / 7.9 inches
