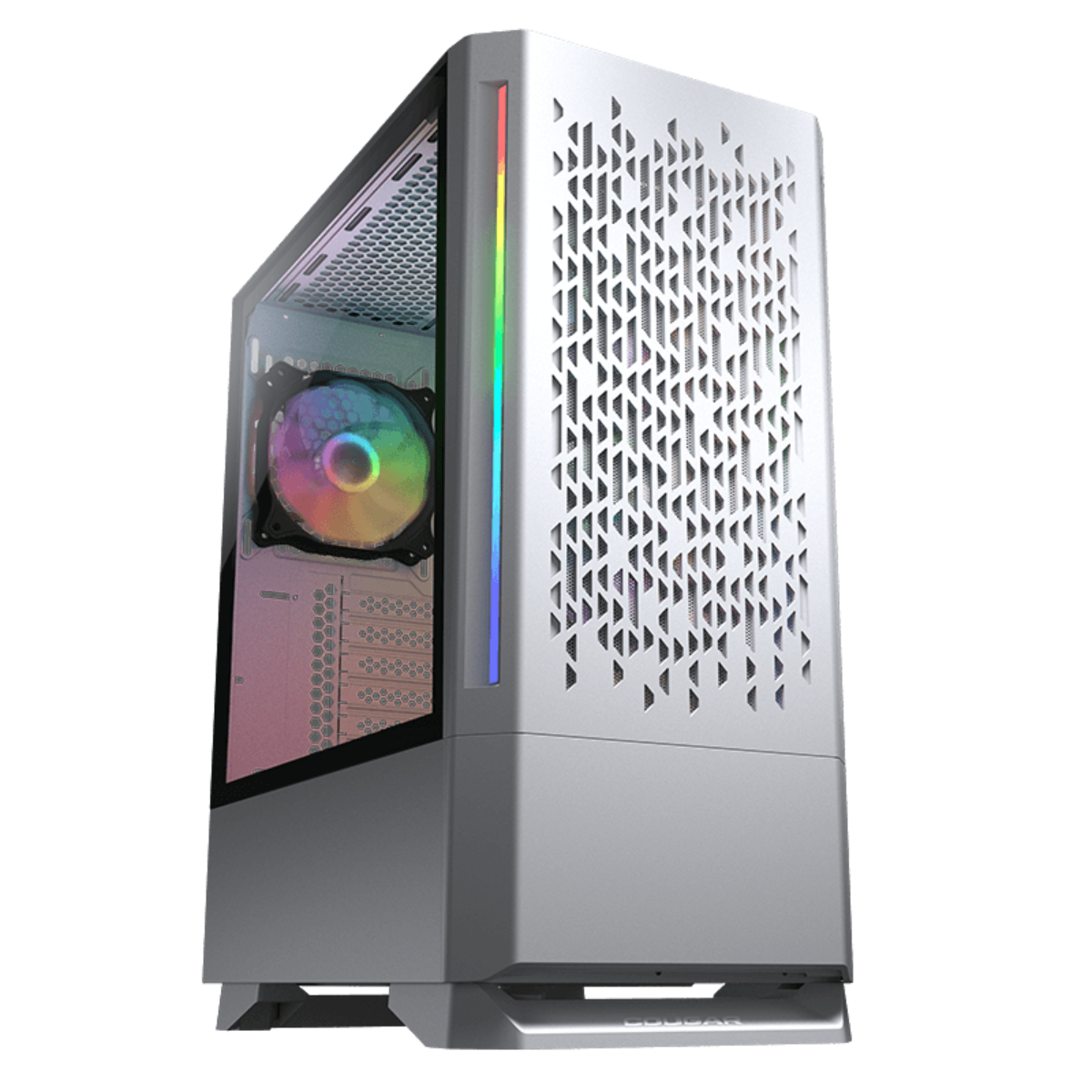

COUGAR MX430 AIR RGB MID TOWER CASE

Specifications

Case & Motherboard

• Case Form Factor: Mid Tower
• Motherboard Support: Mini-ITX / Micro-ATX / ATX
• Expansion Slots: 7
• Transparent Left Panel: 4 mm Tempered Glass

Dimensions

• Case Dimensions (W × H × D): 217 × 467 × 371 mm
• Case Dimensions (W × H × D): 8.5 × 18.4 × 14.6 inches

I/O Panel

• USB 3.0: 2 ×
• USB 2.0: 1 ×
• Microphone: 1 ×
• Audio: 1 ×
• Reset Button: 1 ×
• RGB Button: 1 ×

Drive Bays

• 3.5" Drive Bays: 2
• 2.5" Drive Bays: 3 + 1 (converted from 3.5" drive bays)
• SSD Tray: 1 × included

Cooling & Fan Support

• Maximum Number of Fans: 6
• Front: 3 × 120 mm / 2 × 140 mm
  • 2 × 120 mm ARGB Fans Pre-Installed
• Top: 2 × 120 mm / 2 × 140 mm
• Rear: 1 × 120 mm / 1 × 140 mm
  • 1 × 120 mm ARGB Fan Pre-Installed

Water Cooling Support

• Front: 280 mm / 240 mm / 140 mm / 120 mm
• Top: 240 mm / 120 mm
• Rear: 140 mm / 120 mm

Lighting

• Onboard Lighting System: Yes
• RGB Synchronization with Motherboard: Yes
• Pre-Installed ARGB Fans: 3 ×

Component Clearance

• Maximum Graphics Card Length: 320 mm (12.6 inches)
• Maximum CPU Cooler Height: 175 mm (6.9 inches)
• Maximum PSU Length: 160 mm (6.3 inches)

Packing Data — Black

• Net Weight: 5.0 kg
• Gross Weight: 6.0 kg
• Product Dimensions (W × H × D): 217 × 467 × 371 mm
• Packaging Dimensions (W × H × D): 277 × 436 × 538 mm
