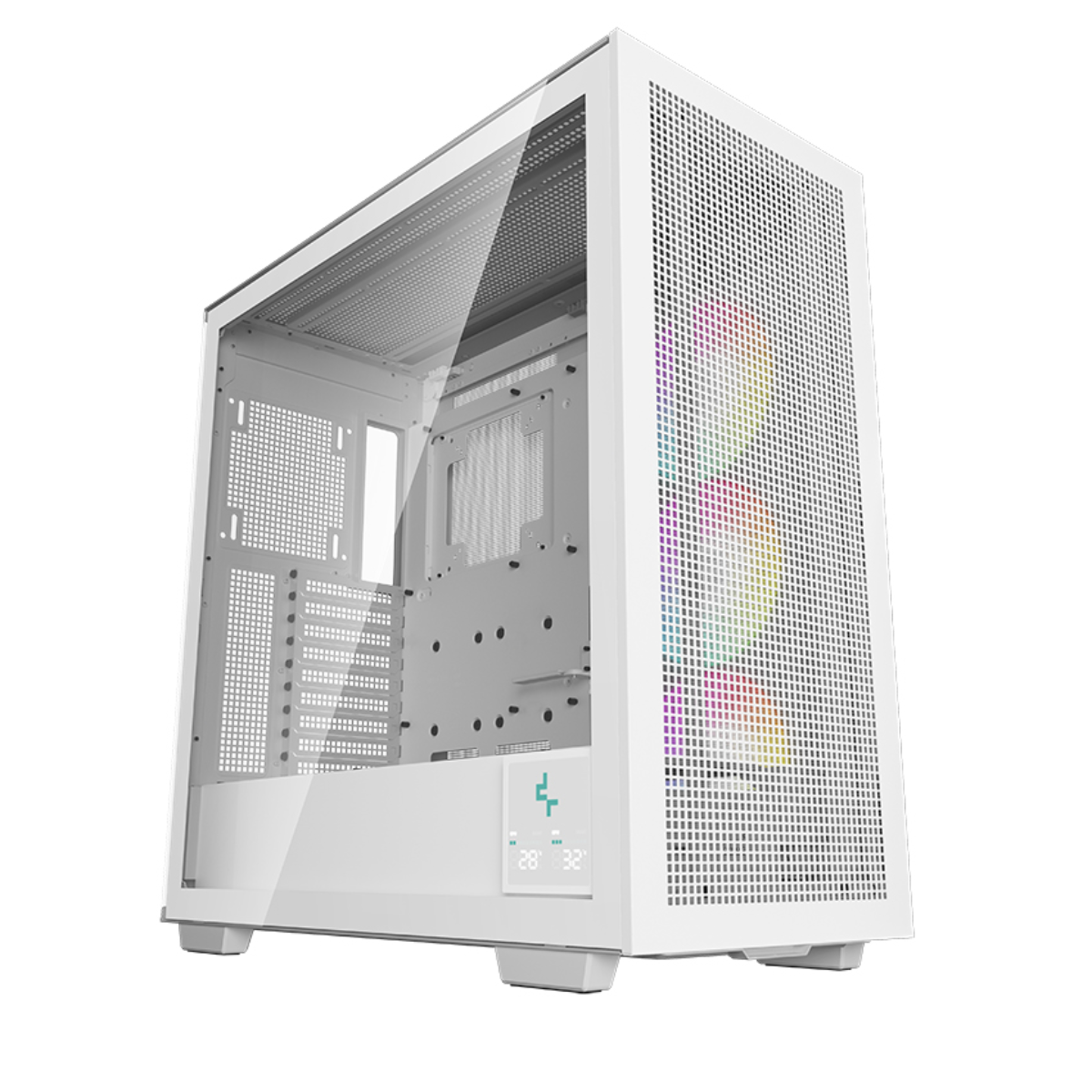

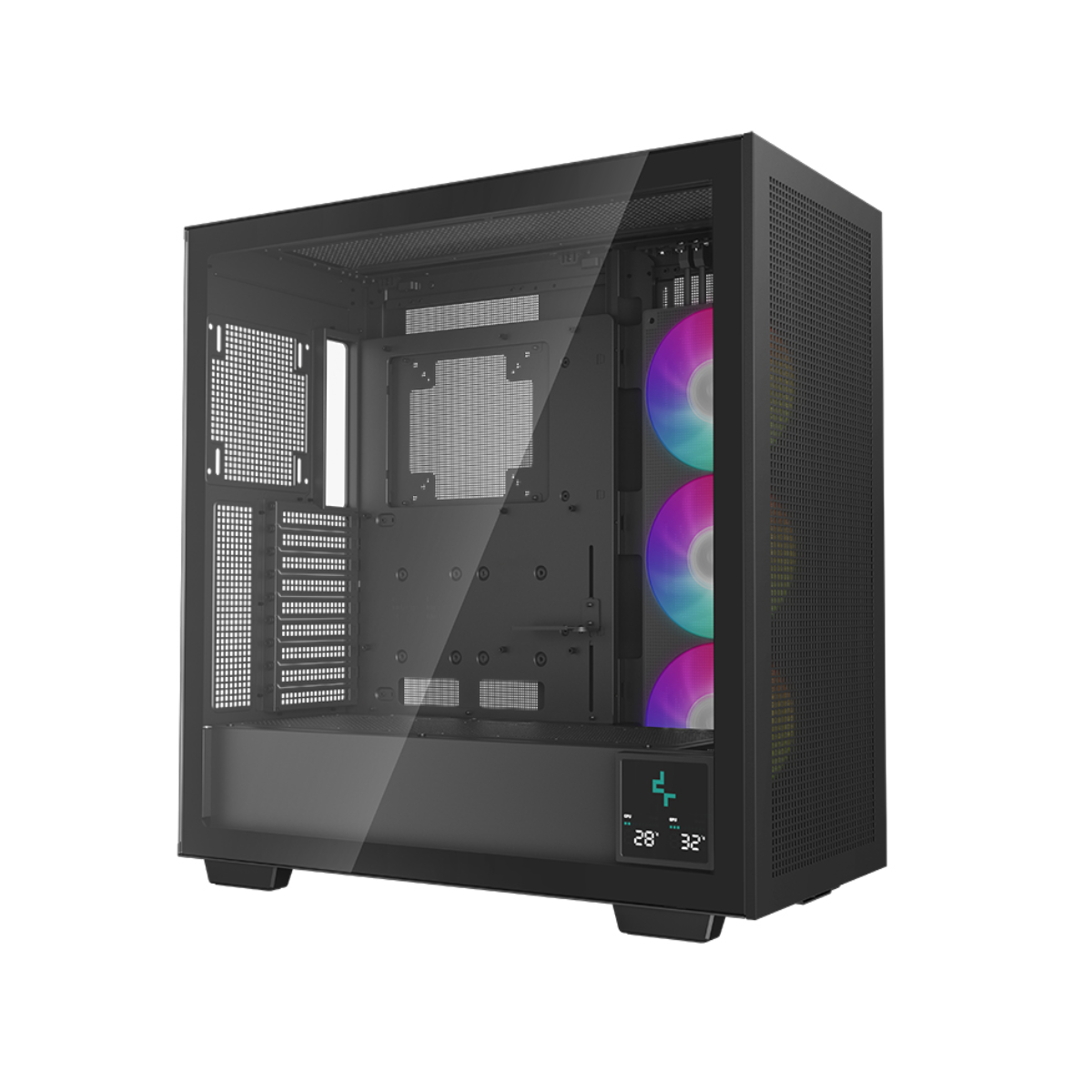

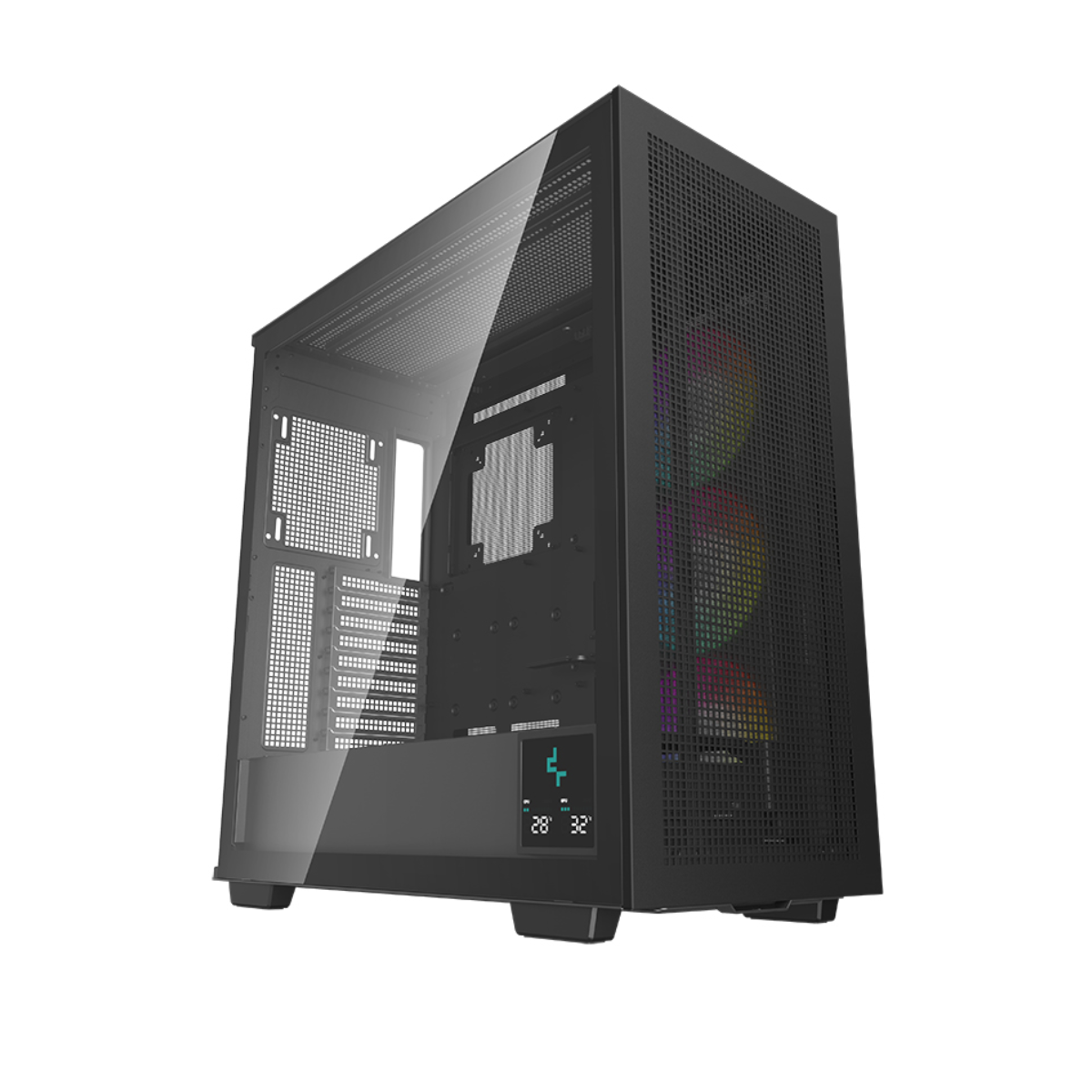

DEEPCOOL MORPHEUS E-ATX FULL TOWER

Specifications

General

• Product Dimensions (L × W × H): 528 × 250 × 551 mm
• Net Weight: 15.5 kg
• Materials: ABS + SPCC + Tempered Glass

Motherboard Support

• Motherboard Form Factors: Mini-ITX / Micro-ATX (M-ATX) / ATX / E-ATX
• Expansion Slots: 9 Slots

Front I/O

• USB 3.0: 4 ×
• Audio: 1 ×
• USB Type-C (Gen 2): 1 ×

Drive Bays

• 3.5" Drive Bays: 2
• 2.5" Drive Bays: 2 + 1

Pre-Installed Fans

• Side: 2 × 140 mm ARGB Fans

Fan Support

• Front: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm
• Top: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm
• Side: 3 × 120 mm / 3 × 140 mm
• Bottom: 3 × 120 mm / 3 × 140 mm / 2 × 180 mm / 2 × 200 mm
• PSU Shroud (Single Chamber): 3 × 120 mm / 3 × 140 mm
• Rear (Single Chamber): 1 × 120 mm / 1 × 140 mm

Radiator Support

• Front: 120 / 140 / 240 / 280 / 360 / 420 mm
• Top: 120 / 140 / 240 / 280 / 360 / 420 mm
• Side (Dual Chamber): 120 / 140 / 240 / 280 / 360 / 420 mm
• Bottom: 120 / 140 / 240 / 280 / 360 / 420 mm
• Rear (Single Chamber): 120 / 140 mm

Component Clearance

• Maximum CPU Cooler Height:
  • Single Chamber: 195 mm
  • Dual Chamber: 132 mm
• Maximum GPU Length: 480 mm
