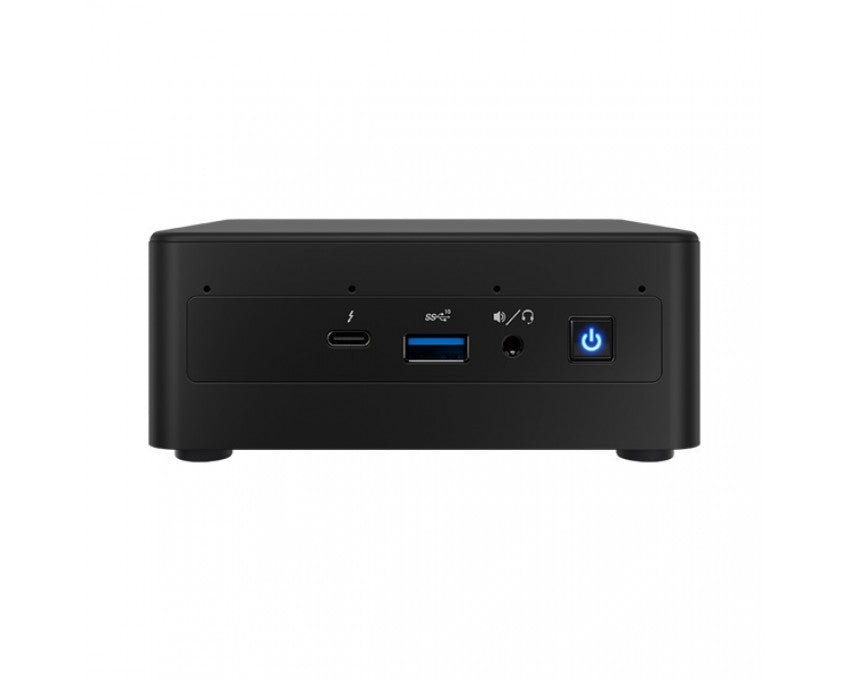

INTEL 11PAHI7 (CORE I7-1165G7) NUC KIT 2XDDR4-3200 SDM/2.5/M.2 (HDMI, USB-C, MINI DP)
INTEL 11PAHI7 (CORE I7-1165G7) NUC KIT 2XDDR4-3200 SDM/2.5/M.2 (HDMI, USB-C, MINI DP)
Regular price
₱26,500.00 PHP
Regular price
Sale price
₱26,500.00 PHP
Product Features
Product Features
| Essentials | |
| Product Collection | Intel NUC Kit with 11th Generation Intel Core€žÂ¢ Processors |
| Code Name | Products formerly Panther Canyon |
| Status | Launched |
| Launch Date | Q1'21 |
| Supported Operating Systems | Windows 10, 64-bit* |
| Board Number | NUC11PABi7 |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 2 |
| Lithography | 10 nm SuperFin |
| TDP | 40 W |
| DC Input Voltage Supported | 19 VDC |
| Processor Included | Intel Core€žÂ¢ i7-1165G7 Processor (12M Cache, up to 4.70 GHz) |
| Intel vPro Platform Eligibility ‚¬Â¡ | No |
| # of Cores | 4 |
| # of Threads | 8 |
| Max Turbo Frequency | 4.70 GHz |
| Warranty Period | 3 yrs |
| Supplemental Information | |
| Embedded Options Available | No |
| Description | Other features: Includes far-field quad array microphones |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 51.2 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‚¬Â¡ | No |
| Processor Graphics | |
| Integrated Graphics ‚¬Â¡ | Yes |
| Graphics Output | HDMI 2.0a; USB-C (DP1.4); MiniDP 1.4 |
| # of Displays Supported ‚¬Â¡ | 4 |
| Expansion Options | |
| PCI Express Revision | Gen4 |
| PCI Express Configurations ‚¬Â¡ | M.2 slot with PCIe X4 lanes |
| Removable Memory Card Slot | SDXC with UHS-II support |
| M.2 Card Slot (storage) | 22x80 |
| I/O Specifications | |
| # of USB Ports | 7 |
| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers |
| USB Revision | 2.0, 3.2 Gen2 |
| USB 2.0 Configuration (External + Internal) | 0 + 1 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 1 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Integrated LAN | Intel Ethernet Controller i225-V |
| Integrated Wireless‚¬Â¡ | Intel Wi-Fi 6 AX201 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, USB3.1, USB2.0, FRONT_PANEL, RGB |
| # of Thunderbolt€žÂ¢ Ports | 2x Thunderbolt€žÂ¢ 3 |
| Package Specifications | |
| Chassis Dimensions | 117 x 112 x 51mm |
| Advanced Technologies | |
| Intel Virtualization Technology for Directed I/O (VT-d) ‚¬Â¡ | Yes |
| Intel vPro Platform Eligibility ‚¬Â¡ | No |
| TPM | No |
| Intel HD Audio Technology | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) ‚¬Â¡ | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Security & Reliability | |
| Intel AES New Instructions | Yes |
